GV-TBL8804

GV-TBL8804 August 31, 2021  - 1 -    GV-TBL8804 AI 8MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera                  * AI deep learning: AI Perimeter Protection & Classification (Human,  Vehicle)  * 1/2.7" progressive scan super low lux CMOS sensor  * Triple streams from H.265, H.264 or MJPEG  * Wide Dynamic Range Pro (WDR Pro)  * Min. illumination at 0.01 lux  * Up to 20 fps at 3480 x 2160  * In telligent IR  * Day and night function (with removable IR ‐cut filter)  * Alarm sound and white LED light triggered on AI detec...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-TBL8804 August 31, 2021
- 1 -

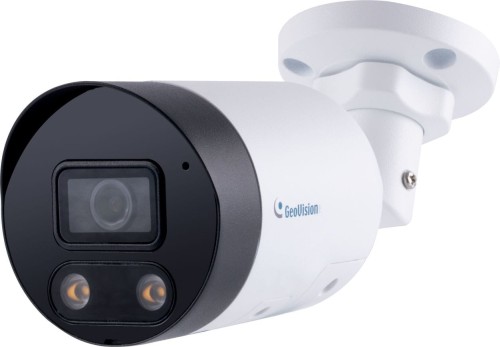

GV-TBL8804 AI 8MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera








* AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
* 1/2.7" progressive scan super low lux CMOS sensor
* Triple streams from H.265, H.264 or MJPEG
* Wide Dynamic Range Pro (WDR Pro)
* Min. illumination at 0.01 lux
* Up to 20 fps at 3480 x 2160
* In telligent IR
* Day and night function (with removable IR ‐cut filter)
* Alarm sound and white LED light triggered on AI detection events
* IR distance up to 30 m (100 ft)
* Ingress protection (IP67)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10) for
local storage
* Two ‐way audio
* DC 12V / PoE (IEEE 802.3af)
* ONVIF (Profile S, G, T) conformant
Introduction
The Bullet IP Camera is an outdoor, network camera equipped with an automatic IR ‐cut filter, IR LED, and two white LEDs for day and
night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality
pictures at reduced network bandwidths. GV ‐TBL8804 adheres to IP67 st andards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.


Deep Learning Function

AI Perimeter Protection AI Event Search
(Intrusion, Crossing Line (VMS V18.3 or later)
Entering Area, Leaving Area)







Note: The integration of AI events of the camera to GV ‐VMS is coming soon.











GV-TBL8804 August 31, 2021
- 2 -
Dimensions


Specifications
Camera
Image Sensor 1/2.7" progressive scan super low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Color 0.01 Lux (F2.0, AGC ON) Minimum
Illumination
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 56 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel 8 MP
Day / Night Yes (with removable IR ‐cut filter)
Lens Type Fixed
Focal Length 4 mm
Maximum Aperture F/2.0
Mount M12
Horizontal FOV 86°
Focus
Zoom
Operation
Iris
Fixed
IR LED Quantity 1 IR LED
Max. IR Distance 30 m (100 ft)
White LED Quantity 2 White LEDs
Max. White Light Distance 20 m (65 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Main Stream 3840 x 2160 (Default), 2944 x 1656, 2560 x 1440, 1920 x 1080
Sub Stream 1280 x 720, 704 x 576, 704 x 288, 640 x 360 (Default), 352 x 288
Video Resolution
Third Stream
(Closed by Default)
704 x 576, 704 x 288, 640 x 360, 352 x 288
Frame Rate
20 fps at 3840 x2160, 25 fps at 2944 x 1656 / 2560 x 1440, 30 fps at 1920 x 1080 (60 /
50 Hz)
*The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics
Motion Detection, Tampering Alarm, Audio Detection
*Tampering Alarm, Audio Detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e ‐mail and FTP


GV-TBL8804 August 31, 2021
- 3 -
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation (Flip, Mirror,
0°, 90°, 180°, 270° ‐including Corridor format)
Audio Compression G.711
Audio Support Two ‐way Audio (built ‐ in microphone and speaker)
Deep Learning Function
AI Perimeter Protection Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification)
Network
Interface 10/100 Ethernet
Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, RTCP, RTP,
RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile S,G,T)
Mechanical
Temperature Detector No
Pan 0° ~ 360°
Tilt 0° ~ 90°
Camera Angle
Adjustment
Rotate 0° ~ 360°
Power DC Jack (DC 12 V, 1.25 A), PoE
Ethernet RJ ‐ 45 connector
Audio Two ‐way (built ‐ in microphone and speaker)
Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card types are not supported.
General
Operating Temperature ‐30°C ~ 60°C ( ‐ 22°F ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 10.5 W
Dimensions 187 x 71 x 71 mm (7.4” x 2.8” x 2.8”)
Weight 0.41 kg (0.99 lb)
Ingress Protection IP67
Regulatory FCC, CE, RoHS compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Defog, Text Overlay, Image Masking
Language Czech, English, French, German, Italian, Russian, Traditional Chinese
Software Application
Software Supported
GV ‐VMS (V17.4.1 / V18.2.1), GV ‐ DVR / NVR (V8.9.1), GV ‐Control Center (V3.8.0),
GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Edge Recording Manager Win
version (V2.0.0), GV ‐Redundant / Failover Server (V1.2.0)
Smart Device Access GV ‐Eye for iOS and Android
Live Viewing Browser (IE, Edge, Chrome), Mobile App

Note:
1. The patch files are required for some of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐TBL8804 IR Bullet IP Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card


GV-TBL8804 August 31, 2021
- 4 -
Accessories
Model No. Name Details

GV ‐Mount504 Wall Mount Bracket

Dimensions: Ø 104.4 x 54.5
mm (Ø 4.11” x 2.15”)
Weight: 0.36 kg (0.79 lb)
GV ‐PA191 Power over Ethernet
(PoE) Adapter


GV ‐PA191 is a Power over
Ethernet (PoE) adapter
designed to provide power to
the IP device through a single
Ethernet cable.

GV ‐ POE Switch GV ‐POE Switch is designed to provide power along with network
connection for IP devices. GV ‐ POE Switch is available in various models
with different numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
