GV-TBL4705

GV-TBL4705 October 22, 2021  - 1 -  GV-TBL4705 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera      * 1/3" progressive scan super low lux CMOS sensor  * Min. illumination at 0.003 lux  * Dual streams from H.265, H.264 or MJPEG  * Up to 30 fps at 2688 x 1520  * Intelligent IR  * IR distance up to 50 m (165 ft)  * Built ‐ in microphone  * Built ‐ in mic ro SD card slot (SD / SDHC / SDXC / UHS ‐ I) for local  storage  * Day and night function (with removable IR ‐cut filter)  * Ingress protection (IP67)  * ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-TBL4705 October 22, 2021
- 1 -

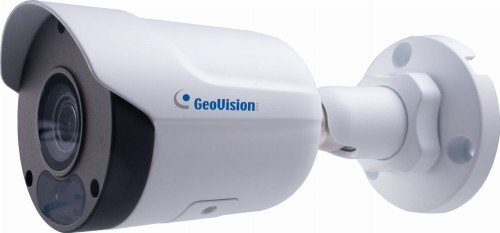

GV-TBL4705 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera


* 1/3" progressive scan super low lux CMOS sensor
* Min. illumination at 0.003 lux
* Dual streams from H.265, H.264 or MJPEG
* Up to 30 fps at 2688 x 1520
* Intelligent IR
* IR distance up to 50 m (165 ft)
* Built ‐ in microphone
* Built ‐ in mic ro SD card slot (SD / SDHC / SDXC / UHS ‐ I) for local
storage
* Day and night function (with removable IR ‐cut filter)
* Ingress protection (IP67)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion de tection
* Text overlay
* Privacy mask
* 12 languages supported
* ONVIF (Profile G, S ,T ) conformant

Introduction
The Bullet IP Camera is an outdoor network camera equipped with an automatic IR ‐cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. It adheres to IP67 standards and can be pow ered through PoE.

Dimensions


Specifications
Camera
Image Sensor 1/3" progressive scan super low lux CMOS

Picture Elements 2688 (H) x 1520 (V)

Color 0.003 Lux (F1.6, AGC ON)

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1 ~ 1/100000s )

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range 120 dB


GV-TBL4705 October 22, 2021
- 2 -
Lens
Megapixel 4 MP

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 4 mm

Maximum Aperture F/1.6

Mount M12

Horizontal FOV 83.7°

Focus

Zoom
Operation
Iris
Fixed
IR LED Quantity 2 IR LED

Max. IR Distance 50 m (165 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Dual streams from H.265, H.264 or MJPEG

Main Stream 2688 x 1520 (Default), 2560 x 1440, 2304 x 1296,1920 x 1080, 1280 x 720

Video Resolution
Sub Stream 1280 x 720, 720 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288

Frame Rate
30 fps at 2688 x 1520 ( 60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm , Audio Detection , Cross Line, Intrusion
*Tampering Alarm, Audio Detection, Cross Line, Intrusion are only accessible through
the camera’s Web interface, which can be used to trigger alerts such as e ‐mail and
FTP

Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation (Flip,
Mirror, 0°, 90°, 180°, 270° ‐including Corridor format)

Audio Compression G.711

Audio Support One ‐way Audio

Network

Interface 10/100 Ethernet

Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP,
PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Temperature Detector No

Pan 0° ~ 360°

Tilt 0° ~ 90°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack (DC 12 V, 1.25 A), PoE

Ethernet RJ ‐ 45 connector

Audio 1 In (built ‐ in microphone)

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

General

Operating Temperature ‐30°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 0% ~ 95% (no condensation)

Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 6 W

Dimensions 161.9 x 68.7 x 68.5 mm (6.4” x 2.7” x 2.7”)

Weight 0.45 kg (0.99 lb)

Ingress Protection IP67

Regulatory FCC, CE, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility


GV-TBL4705 October 22, 2021
- 3 -
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese

Applications

Software Supported
GV ‐ VMS (V17.4.1 / V18.2.1), GV ‐ DVR / NVR (V8.9.1), GV ‐Control Center (V3.8.0),
GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Edge Recording Manager Win
version (V2.0.0), GV ‐Redundant / Failover Server (V1.2.0), GV ‐Mobile Server (V1.5.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Edge, Chrome, Firefox), Mobile App

Note:
1. It is required to apply patch files to some or all of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐TBL4705 Bullet
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card

Accessories
Model No. Name
Details

GV ‐Mount504 Wall Mount Bracket




Dimensions: Ø 104.4 x 54.5 mm (Ø 4.11” x
2.15”) Weight: 0.36 kg (0.79 lb)

GV ‐PA191 Power over Ethernet
(PoE) Adapter



GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐ POE Switch GV ‐POE Switch is designed to provide power along with network connection for IP

devices. GV ‐ POE Switch is available in various models with different numbers and

types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
