GV-TBL2705

GV-TBL2705 October 22, 2021  - 1 -  GV-TBL2705 2MP H.265 Low Lux WDR Pro IR Bullet IP Camera        * 1/2.7" progressive scan low lux CMOS sensor  * Min. illumination at 0.01 lux  * Dual streams from H.265, H.264 or MJPEG  * Up to 30 fps at 1920 x 1080  * Intelligent IR  * IR distance up to 30 m (100 ft)  * Built ‐ in microphone  * Built ‐ in micro SD card slo t (SD / SDHC / SDXC / UHS ‐ I) for local  storage  * Day and night function (with removable IR ‐cut filter)  * Ingress protection (IP67)  ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-TBL2705 October 22, 2021
- 1 -

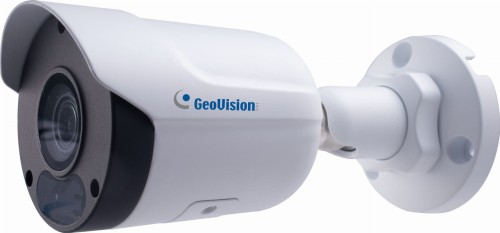

GV-TBL2705 2MP H.265 Low Lux WDR Pro IR Bullet IP Camera



* 1/2.7" progressive scan low lux CMOS sensor
* Min. illumination at 0.01 lux
* Dual streams from H.265, H.264 or MJPEG
* Up to 30 fps at 1920 x 1080
* Intelligent IR
* IR distance up to 30 m (100 ft)
* Built ‐ in microphone
* Built ‐ in micro SD card slo t (SD / SDHC / SDXC / UHS ‐ I) for local
storage
* Day and night function (with removable IR ‐cut filter)
* Ingress protection (IP67)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Tex t overlay
* Privacy mask
* ONVIF (Profile G, S, T) conformant


Introduction
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR ‐cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. It adheres to IP67 standards and can be pow ered through PoE.


Dimensions








GV-TBL2705 October 22, 2021
- 2 -
Specifications
Camera

Image Sensor 1/2.7" progressive scan low lux CMOS
Picture Elements 1920 (H) x 1080 (V)

Color 0.01 Lux (F2.0, AGC ON)

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1 ~ 1/100,000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 52 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel 2 MP

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 4 mm

Maximum Aperture F/2.0

Mount M12

Horizontal FOV 83°

Focus

Zoom
Operation
Iris
Fixed
IR LED Quantity 1 IR LED

Max. IR Distance 30 m (100 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Dual streams from H.265, H.264 or MJPEG

Main Stream 1920 x 1080 (Default), 1280 x 720

Video Resolution
Sub Stream 1280 x 720, 720 x 576, 704 x 288, 640 x 480, 640 x 360 (Default), 352 x 288

Frame Rate
30 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion
*Tampering Alarm, Audio Detection, Cross Line, Intrusion, are only accessible
through the camera’s Web interface, which can be used to trigger alerts such as
e ‐mail and FTP

Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation (Flip,
Mirror, 0°, 90°, 180°, 270° ‐including Corridor format)

Audio Compression G.711

Audio Support One ‐way Audio

Network

Interface 10/100 Ethernet

Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP,
PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Temperature Detector No

Pan 0° ~ 360°

Tilt 0° ~ 90°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack, PoE

Ethernet RJ ‐ 45 connector

Audio 1 In (built ‐ in microphone)

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10) *UHS ‐ II card types are not
supported.

General

Operating Temperature ‐30°C ~ 60°C ( ‐22°F ~ 140°F)

Humidity 10% ~ 90% (no condensation)


GV-TBL2705 October 22, 2021
- 3 -
Power Source 12 V DC / PoE (IEEE802.3af)

Max. Power Consumption 6.0 W

Dimensions 161.9 x 68.7 x 68.5 mm (6.4” x 2.7” x 2.7”)

Weight 0.45 kg (0.99 lb)

Ingress Protection IP67

Regulatory FCC, CE, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility (V8.7.3.0)

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese

Applications

Software Supported
GV ‐ VMS (V17.4.1 / V18.2.1), GV ‐ DVR / NVR (V8.9.1), GV ‐Control Center (V3.8.0),
GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Edge Recording Manager Win
version (V2.0.0), GV ‐Redundant / Failover Server (V1.2.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Edge, Chrome, Firefox), Mobile App



Note:
1. Patch files are required for some supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐TBL2705 Bullet
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card

Accessories
Model No. Name
Details

GV ‐Mount504 Wall Mount Bracket




Dimensions: Ø 104.4 x 54.5 mm (Ø 4.11” x
2.15”) Weight: 0.36 kg (0.79 lb)

GV ‐PA191 Power over Ethernet
(PoE) Adapter



GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐ POE Switch GV ‐POE Switch is designed to provide power along with network connection for IP

devices. GV ‐ POE Switch is available in various models with different numbers and

types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
