GV-SD4834-IR

GV-SD4834-IR December 28, 2021  - 1 -  GV-SD4834-IR AI 4MP 33x Zoom H.265 Super Low Lux WDR Pro Outdoor IR IP  Speed Dome              * AI deep learning: AI Perimeter Protection & Classification (Human,  Vehicle)  * 1/2.8" progressive scan CMOS sensor  * Min. illumination at 0.003 lux  * Triple streams from H.265, H.264 or MJPEG  * Up to 30 fps at 2688 x 1520  * Motorized varifocal lens for remote focus / zoom adjustments  * 33x optical zoom and unlimited digital zoom  * Intelligent IR  * IR distance up ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-SD4834-IR December 28, 2021
- 1 -

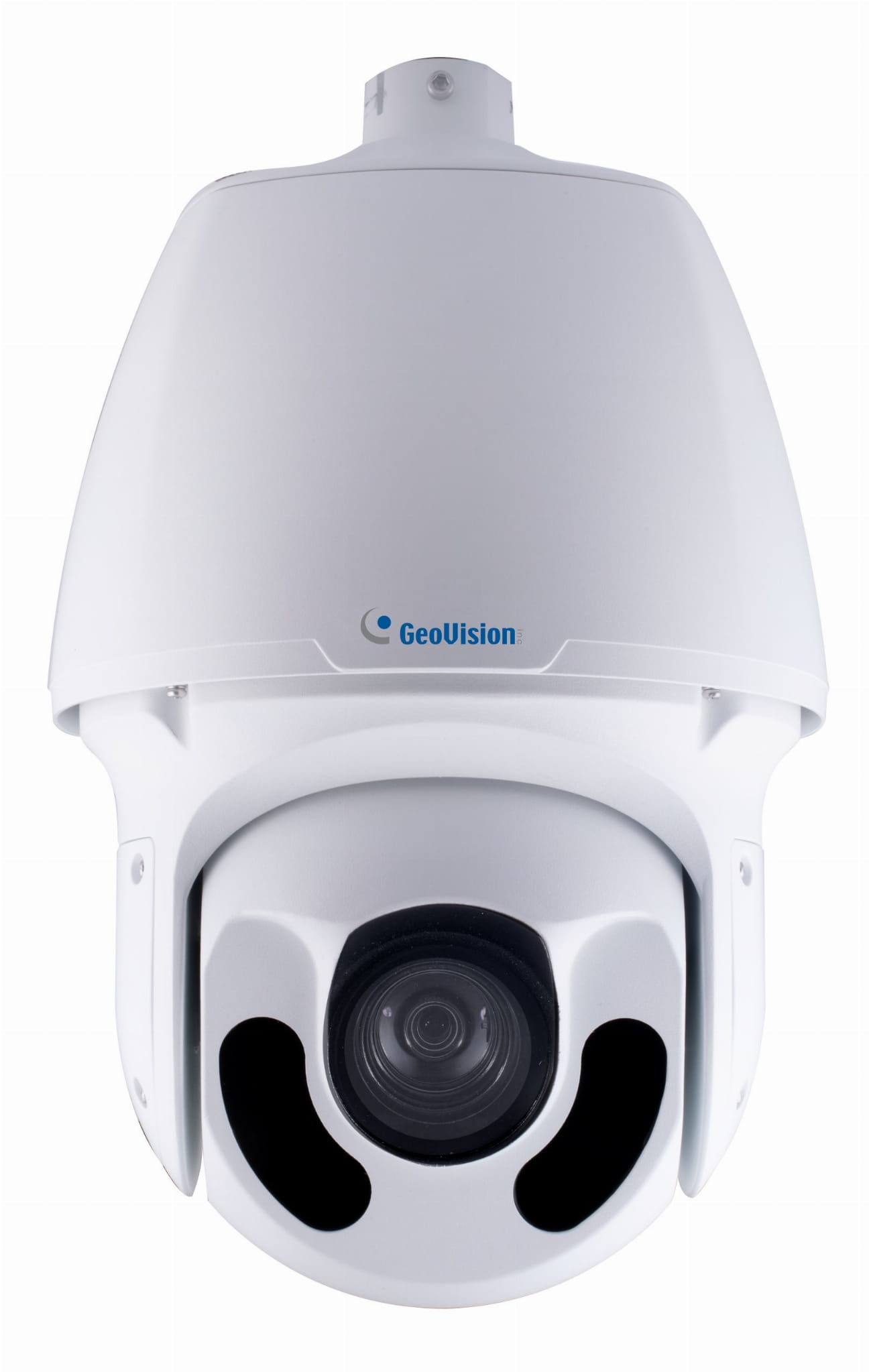

GV-SD4834-IR AI 4MP 33x Zoom H.265 Super Low Lux WDR Pro Outdoor IR IP
Speed Dome






* AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
* 1/2.8" progressive scan CMOS sensor
* Min. illumination at 0.003 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 30 fps at 2688 x 1520
* Motorized varifocal lens for remote focus / zoom adjustments
* 33x optical zoom and unlimited digital zoom
* Intelligent IR
* IR distance up to 150 m (500 ft)
* Day and night function (with removable IR ‐cut filter)
* Two sensor inputs and one alarm output
* Wide Dynamic Range Pro (WDR Pro)
* Ingress protection (IP66)
* Vandal r esistance (IK10 for metal casing)
* Wide temperature tolerance ( ‐40°C ~ 65°C / ‐ 40°F ~ 149°F)
* Support for TV ‐ out
* Two ‐way audio
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10) for
local storage
* DC 24V / AC 24V / PoE+ (IEEE 802.3at)
* Pan 360° endlessly
* Tilt from ‐15° to 90°
* Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
* PTZ movement (Preset, Auto Pan and Patrol)
* PTZ patrol by schedule
* AI analytics (Cross Line, Intrusion, Auto Tracking, Enter Area, Leav e
Area, Face Detection, People Flow Counting, Crowd Density
Monitoring)
* Auto focus
* 3D noise reduction
* Motion detection
* Privacy mask
* ONVIF (Profile G, S, T) conformant

Introduction
GV ‐SD4834 ‐ IR is an outdoor network PTZ camera that offers 33x optical zoom and unlimited digital zoom, capable of showing
smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 2688 x 1520 at
30 fps. In low ‐light environments, night vision is e nhanced with its high ‐power LEDs, which allow up to 150 m (500 ft) effective IR
distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built ‐ in WDR Pro.
The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced
network bandwidths. It also adheres to IP66 and IK10 standards.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. GV ‐SD4834 ‐ IR
supports AI perimeter protection, people flow counting, auto tracking, motion detection, audio detection and more.


GV-SD4834-IR December 28, 2021
- 2 -

Deep Learning Function

Face Detection
AI Perimeter Protection People Counting

(Intrusion, Crossing Line
Entering Area, Leaving Area)


Note: The integration of AI events of the camera to GV ‐VMS is coming soon.

Dimensions



Specifications
Camera
Image Sensor 1/2.8" progressive scan CMOS

Optical Zoom 33x

Color 0.003 Lux (F1.5, AGC ON)
Minimum
Illumination
IR ON 0 Lux

Electronic Shutter Auto / Manual (1 ~ 1/100000 sec)

White Balance Auto / Manual

Iris control Auto / Manual


GV-SD4834-IR December 28, 2021
- 3 -
AGC control Auto / Manual

S/N Ratio 56 dB

WDR WDR Pro

Dynamic Range Up to 120 dB

Optical Lens

Megapixel 4 MP

Day / Night Yes (with removable IR ‐cut filter)

Focal Length 4.5 ~ 148.5 mm

Lens Type Motorized varifocal lens

Maximum Aperture F1.5

Horizontal FOV 53.0° ~ 2.3°

Focus Auto / Manual

Zoom 33x

Operation
Iris Auto / Manual

IR LED Quantity 6 IR LEDs

Max. IR Distance 150 m (500 ft)

Video

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Main Stream 2688 x 1520 (Default), 2560 x 1440, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 360.

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default)

Video Resolution
Third Stream
(Closed by
Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

Frame Rate
30 fps at 2688 x 1520, 30 fps at 2560 x 1440, 30 fps at 1920 x 1080 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm, Audio Detection
*Tampering alarm and audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e ‐mail and FTP

Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, Image Orientation (Flip, Mirror, 0°,
90°, 180°, 270° ‐including Corridor format)

Audio

Audio Compression G.711

Audio Support Two ‐way Audio (external microphone and speaker required)

Deep Learning Function

AI Analytics
Cross Line, Intrusion, Auto Tracking, Enter Area, Leave Area, Face Detection, People Flow
Counting, Crowd Density Monitoring

Network

Interface 10/100 Ethernet

Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,
QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Power 3 ‐pin terminal block (DC 24V, 2.5A / AC 24V, 2.2A), PoE+ (IEEE 802.3at)

Ethernet 10/100 Base ‐ TX, RJ ‐ 45 connector

Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply.

Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
*UHS ‐ II card types are not supported.

TV ‐ Out BNC connector: NTSC (720 x 576 at 30 fps), PAL (720 x 576 at 25 fps)

Connectors
Digital I/O I/O wires

RS‐485 RS‐485 wires

Operation

Pan Travel 360° endless

Tilt Travel ‐ 15° ~ 90°

Pan 0.1° ~ 200°/s

Manual Speed
Tilt 0.1° ~ 200°/s

Pan 300°/s

Preset Speed
Tilt 240°/s


GV-SD4834-IR December 28, 2021
- 4 -
Max. Number 255

Presets
Accuracy 0.1°

Max. Number 16

Patrol
Max. Actions
Allowed
32

OSD 8

Privacy Mask 24

Proportional Pan & Tilt Auto (Pan and tilt speed proportional to zoom ratio)

Automatic Function Preset, Patrol (Including Auto Pan)

Mechanical Flip Yes

Digital Slow Shutter On / Off

Motion Detection On / Off

Wide Dynamic Range On / Off

Day/Night: Mechanical IR Cut Filter On / Off

Image Rotation Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti ‐clockwise

3D Noise Reduction 0 ~ 255

2 Inputs, dry contact, NO / NC

Digital I/O
1 Relay Output (AC 125V 0.5A / DC 30V 1A)

Alarm
Reaction Alarm Output, PTZ to Preset, Trigger Storage

General

Operating Temperature ‐40°C ~ 65°C ( ‐40°F ~ 149°F)

Humidity 20% ~ 90% (non ‐condensing)

Dimensions Ø227 x 384.8 mm (Ø8.9” x 15.1”)

Weight 5.28 kg (11.64 lb)

Power Source AC 24V, DC 24V, PoE+ (IEEE 802.3at)

Power Consumption 25W

Ingress Protection IP66

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese

Software Applications

Software Supported
GV ‐ DVR / NVR (V8.9.1), GV ‐VMS (V17.4.3 / V18.2.1), GV ‐Control Center (V3.8.0 / V4.0.1),
GV ‐Edge Recording Manager Windows Version (V2.0.0), GV ‐Recording Server / Video
Gateway (V2.0.0), GV ‐Redundant / Failover Server (V1.2.0), GV ‐Mobile Server (V1.5.1).
GV ‐ AI Guard (V1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Bowser (IE, Edge, Chrome, Firefox, Safari), Mobile App



Note:
1. It is required to apply patch files to the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they
are used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly recommended to apply a battery backup (UPS).
* For better performance, it is highly recommended that you use a micro SD card of SDHC/SDXC, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
4. Specifications are subject to change without notice.

GV-SD4834-IR December 28, 2021
- 5 -
Packing List
1. GV ‐SD4834 ‐ IR Speed Dome
2. M4 Hex Key
3. Waterproof Rubber Set
4. Waterproof Guidelines
5. Download Guide

Accessories
Model No. Name
Details

GV ‐Mount104 Straight Tube Kit



Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x 13.1”)

Weight: 1.8 kg (3.97 lb)

GV ‐Mount105 Straight Tube and
Junction Box Kit



Dimensions: 256 x 256 x 297 mm (10.1” x 10.1” x 11.7”)

Weight: 6.2 kg (13.67 lb)

GV ‐Mount208 ‐ 3 Swan Neck Mount



Dimensions: 1043 x 519 x 256 mm

(41.06” x 20.43” x 10.08”)

Weight: 10.6 kg (23.37 lb)

GV ‐Mount210 Wall Pendant
Mount



Dimensions: 200 x 140 x 249 mm (7.9” x 5.5” x 9.80”)

Weight: 1.1 kg (2.43 lb)

GV ‐Mount300 ‐ 1 Convex Corner
Adapter Kit



Dimensions: 238.6 x 395.2 x 210 mm

(9.4” x 15.5” x 8.2”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner
Adapter Kit



Dimensions: 111.2 x 369.9 x 210 mm

(4.37” x 14.5” x 8.2”)

Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount
Bracket Kit (Ø 4” ~
6”)



Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 4” ~ 6”


GV-SD4834-IR December 28, 2021
- 6 -
GV ‐Mount410 ‐ 1 Pole Mount
Bracket Kit (Ø 6” ~
7.5”)



Bracket: 68.4 x 240 x 163 mm (2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 6” ~ 7.5”

GV ‐Mount501 Convex Corner Box
Mount




Dimensions: 136 x 256 x 256 mm (5.4” x 10.1” x 10.1”)

Weight: 4.8 kg (10.6 lb)



GV ‐Mount702 Extension Tube



Four options are available.

Dimensions: Ø 5.4” x 10” or 20 or 30 or 50 cm

(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)

Weight: 180 g or 390 g or 550 g or 800 g

(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)

GV ‐ POE Switch GV ‐POE Switch is designed to provide power along with network connection for IP devices.

The GV ‐ POE Switch is available in various models with different numbers and types of

ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
