GV-SD2722-IR January 8, 2019
- 1 -

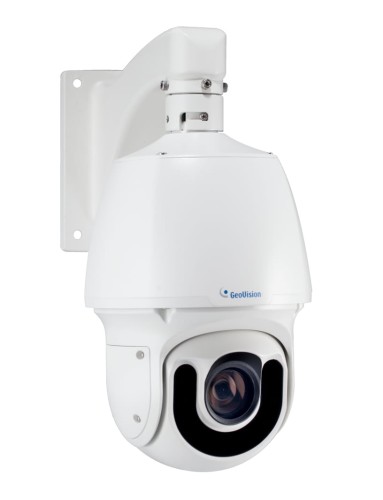

GV-SD2722-IR (22x) 2MP H.265 Super Low Lux WDR Pro Outdoor IR IP Speed
Dome



* 1/1.9" progressive scan super low lux CMOS sensor
* Min. illumination at 0.001 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 60 fps at 1920 x 1080
* 22x optical zoom and unlimited digital zoom
* Intelligent IR
* IR distance up to 200 m (656 ft )
* Day and night function (with removable IR ‐cut filter)
* Two sensor inputs and one alarm output
* Wide Dynamic Range Pro (WDR Pro)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP66)
* Wide temperature tolerance ( ‐40°C ~ 70°C / ‐ 40°F ~ 158°F)
* S upport for TV ‐ out
* Two ‐way audio
* Built ‐ in micro SD card slot (SDHC/SDXC, Class 10) for local storage
* DC 24V / AC 24V
* Pan 360° endlessly
* Tilt from ‐15° to 195°
* Pan and tilt speed of up to 300°/sec and 240°/sec, respectively
* PTZ mo vement (Preset, Auto Pan and Patrol)
* PTZ patrol by schedule
* Smart settings (Cross line, Intrusion, Auto tracking)
* Intelligent Mark
* Auto focus
* 3D noise reduction
* Motion detection
* Privacy mask
* No memory card slot & local storage function for Argentina

Introduction

The GV ‐SD2722 ‐ IR is an outdoor network PTZ camera that offers 22x optical zoom and unlimited digital zoom, capable of showing
smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 1920 x 1080 at
60 fps. In low ‐light environments, night vi sion is enhanced with its high ‐power LEDs, which allow up to 200 m (656 ft) effective IR
distance. The camera can process scenes with contrasting intensity of lights and produce clear image using the built ‐ in WDR Pro.
The GV ‐SD2722 ‐ IR supports H.265 video codec to achieve better comp ression ratio while maintaining high quality pictures at
reduced network bandwidths.

Wide surveillance coverage is made possible with 360° endless panning and ‐ 15 ~ 195° tilting capacity. PTZ functions such as Preset,
Auto Pan, and Patrol can be programmed and activated by schedule. The GV ‐SD2722 ‐ IR supports pan/tilt speeds rangi ng from a fast
patrol of 240° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.



GV-SD2722-IR January 8, 2019
- 2 -
Dimensions



Specifications
Camera
Image Sensor 1/1.9" progressive scan super low lux CMOS

Optical Zoom 22x

Digital Zoom Unlimited

Picture Elements 1920 (H) x 1080 (V)

Color 0.001 Lux at F/1.5
Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)

White Balance Auto / Manual

Iris Control Auto / Manual

AGC control Auto / Manual

S/N Ratio 52 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Optical Lens

Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Focal Length 6.5 ~ 143 mm

Maximum Aperture F/1.5

Horizontal FOV 57.2° ~ 3.3°

Focus Auto / Manual

Zoom 22x

Operation
Iris Auto / Manual

IR LED Quantity 10 IR LEDs

Max. IR Distance 200 m (656 ft)

Video

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Main Stream 1920 x 1080 (Default), 1280 x 720

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288

Video Resolution
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

Frame Rate
60 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).



GV-SD2722-IR January 8, 2019
- 3 -
Audio
Audio Compression G.711

Audio Support Two ‐way Audio (external microphone and speaker required)

Network

Interface 10/100 Ethernet

Protocol
ARP, DHCP, DNS, DDNS, DynDNS, FTP, HTTP, HTTPS, IPv4, ICMP, IGMP, NTP, PPPoE,
RTP, RTCP, RTSP, SMTP, TCP/IP, UDP, UPnP, ONVIF (Profile S), 802.1x

Mechanical

Power 3 ‐pin terminal block (DC 24V / AC 24V, 2.5A)

Ethernet 10/100 Base ‐ T, RJ ‐ 45 connector

Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports microphones with power supply.

Local Storage
Micro SD card slot (SDHC / SDXC, Class 10)
*UHS ‐ I and UHS ‐ II card types are not supported.

TV ‐ Out BNC connector

Connectors
Digital I/O I/O wires

Operation

Pan Travel 360° endless

Tilt Travel ‐ 15° ~ 195°

Pan 0.1° ~ 240°/s

Manual Speed
Tilt 0.1° ~ 160°/s

Pan 300°/s

Preset Speed
Tilt 240°/s

Max. Number 255

Presets
Accuracy 0.1°

Max. Number 16

Patrol
Max. Actions Allowed 32

OSD 8

Privacy Mask 24

Proportional Pan & Tilt Auto (Pan and tilt speed proportional to zoom ratio)

Automatic Function Preset, Patrol (Including Auto Pan)

Mechanical Flip Yes

Digital Slow Shutter On / Off

Motion Detection On / Off

Wide Dynamic Range On / Off

Day/Night: Mechanical IR Cut Filter On / Off

Image Rotation Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti ‐clockwise

3D Noise Reduction 0 ~ 255

2 Inputs, dry contact, NO / NC

Digital I/O
1 Relay Output (1A 30V DC / 0.3A 125V AC)

Alarm
Reaction Alarm Output, PTZ to Preset, Trigger Storage

General

Operating Temperature ‐40°C ~ 70°C ( ‐40°F ~ 158°F)

Heater Heater On: ‐15°C (5°F)

Fan ‐ On Constantly On

Humidity 20% ~ 90% (non ‐condensing)

Dimensions Ø 227 x 359.4 mm (8.94” x 14.15”)

Weight 5.4 kg (11.9 lb)

Power Source 24V AC / 24V DC

Power Consumption 52.5 W

Ingress Protection IP66

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RoHS compliant






GV-SD2722-IR January 8, 2019
- 4 -

Web Interface
Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Playback, Video Recording, PTZ Control, Preset, Patrol, Image Quality,
Bandwidth Control, Image Snapshot, Two ‐way Audio, Digital Zoom, 3D Positioning
(Optical Zoom), Text Overlay, Image Masking, Intelligent Mark, Cross Line, Intrusion,
Auto Tracking, PTZ Remote Control

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish

Applications

Software Supported
GV ‐ VMS (V17.1.0.100), GV ‐DVR / NVR (V8.7.4.0), GV ‐Control Center (V3.5.0.0),
GV ‐Recording Server / Video Gateway (V1.3.0.0), GV ‐Edge Recording Manager
(V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)
*It is required to apply patch files to all the supported software except for GV ‐VMS
(V17.1.0.100).

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app



Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly recommended to apply a battery backup (UPS).
* For better performance, it is highly recommended that you use a micro SD card of SDHC/SDXC, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐SD2722 ‐ IR Speed Dome
2. 24V AC Power Adapter
3. M4 Hex Key
4. Waterproof Rubber Set
5. Waterproof Guidelines
6. Download Guide
7. Warranty Card

Accessories
Model No. Name
Details

GV ‐Mount104 Straight Tube Kit




Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x

13.1”)

Weight: 1.8 kg (3.97 lb)

GV ‐Mount105 Straight Tube and
Junction Box Kit




Dimensions: 256 x 256 x 297 mm (10.1” x 10.1” x

11.7”)

Weight: 6.2 kg (13.67 lb)



GV-SD2722-IR January 8, 2019
- 5 -

Model No. Name
Details

GV ‐Mount210 Pendant Tube



Dimensions: 200 x 140 x 249 mm (7.9” x 5.5” x

9.80”)

Weight: 1.1 kg (2.43 lb)

GV ‐Mount208 ‐ 3 Swan Neck Mount



Dimensions: 1043 x 519 x 256 mm (41.06 x 20.43 x

10.08")

Weight: 10.6 kg (23.37 lb)

GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit



Dimensions: 238.6 x 395.2 x 210 mm

(9.4’’ x 15.5” x 8.2”)

Weight: 4.27 kg (9.41 lb)

GV ‐Mount310 ‐ 1 Concave Corner Adapter
Kit



Dimensions: 111.2 x 369.9 x 210 mm

(4.37’’ x 14.5” x 8.2”)

Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 ‐ 1 Pole Mount Bracket Kit
(Ø 4" ~ 6")



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 4" ~ 6"

GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")



Dimensions:

Bracket: 68.4 x 240 x 163 mm

(2.69” x 9.44’’ x 6.41”)

Weight: 1.70 kg (3.75 lb)

Steel Strap Diameter: Ø 6" ~ 7.5"

GV ‐Mount501 Convex Corner Box
Mount




Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x

10.1”)

Weight: 4.8 kg (10.6 lb)




GV-SD2722-IR January 8, 2019
- 6 -

Model No. Name
Details

GV ‐Mount702 Extension Tube



Four options are available.

Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm

(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)

Weight: 180 g or 390 g or 550 g or 800 g

(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
