GV-SD2322-IR

Availability: 0
Price: €1,053.02 1053.02
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: GEOVISION
Product code: 84-SD2322W-IR0D

Description

GV-SD2301 February 21, 2018  - 1 -  GV-SD2 322 - IR ( 22x ) Outdoor Low Lux IR IP Speed Dome        • 1/2.8" progressive scan low lux CMOS sensor  • Min. illumination at 0.01 lux (B/W) and 0.03 lux (color)  • Triple streams from H.264 and MJEPG  • Up to 30 fps at 1920 x 1080  • 2 2x optical zoom a nd unlimited digital zoom  • Intelligent IR  • IR distance up to 150 m (492 ft)  • Day and night function (with removable IR -cut filter )  • Two sensor inputs and one alarm output  • Wide Dynamic Range (WDR)  • Vandal resistance (IK10 for metal...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

GV-SD2301 February 21, 2018
- 1 -

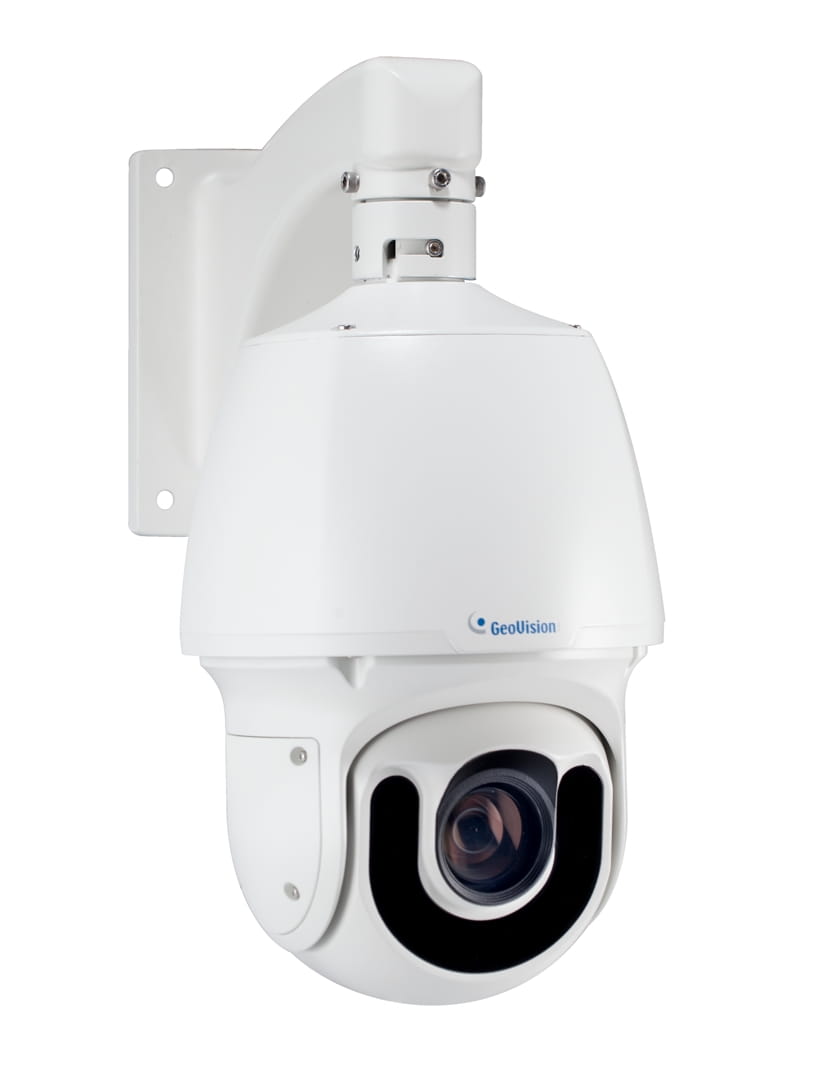

GV-SD2 322 - IR ( 22x ) Outdoor Low Lux IR IP Speed Dome



• 1/2.8" progressive scan low lux CMOS sensor
• Min. illumination at 0.01 lux (B/W) and 0.03 lux (color)
• Triple streams from H.264 and MJEPG
• Up to 30 fps at 1920 x 1080
• 2 2x optical zoom a nd unlimited digital zoom
• Intelligent IR
• IR distance up to 150 m (492 ft)
• Day and night function (with removable IR -cut filter )
• Two sensor inputs and one alarm output
• Wide Dynamic Range (WDR)
• Vandal resistance (IK10 for metal casing )
• Ingress protection ( IP6 6 )
• Wide temperature tolerance ( -40°C ~ 70°C / -40°F ~ 158°F)
• Support for TV -out
• Two -way audio
• Built -in micro SD card slot (SDHC/SDXC, Class 10 ) for local storage
• DC 24V / AC 24V
• Pan 360° endlessly
• Tilt from - 15° to 195°
• Pan preset speed at up to 300°/sec and tilt at 240°/sec
• PTZ movement (Preset, Sequence, Auto Pan, Cruise and Patrol )
• PTZ patrol by schedule
• Auto focus
• 3D noise reduction
• Motion detection
• Privacy mask
* No memory card slot & local storage function for Argentina

Introduction

The GV-SD2322 -IR is an outdoor network PTZ camera that offers 22x optical zoom and unlimited digital zoom, capable of showing
smooth live view with great details. This camera can simultaneously deliver three video streams in resolutions up to 1920 x 1080 at
30 fps. In low -light environments, night vision is enhanced with its high power LEDs, which allow up to 150 m (492 ft) effective IR
distance.

Wide surveillance coverage is made possible with 360° endless panning and -15 ~ 195° tilting capacity. PTZ functions such as Preset,
Sequence, Auto Pan, Cruise and Patrol can be programmed and activated by schedule. The GV -SD2322 -IR supports pan/tilt speeds
ranging from a fast patrol of 240° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurat e
tracking ability.




GV-SD2301 February 21, 2018
- 2 -
Dimensions



Specifications
Camera
Image Sensor 1/2.8" progressive scan low lux CMOS
Optical Zoom 22x
Digital Zoom Unlimited
Picture Elements 1920 (H) x 1080 (V)
Minimum
Illumination
Color 0.03 Lux at F/1.6
B/W 0.01 Lux at F/1.6
IR ON 0 Lux
Electronic Shutter 1/6 ~ 1/8000 sec.
White Balance Auto / Manual
Iris Control Auto / Manual
AGC control Auto / Manual
S/N Ratio 52 dB
WDR Yes
Dynamic Range Up to 72 dB
Optical Lens
Megapixel Yes
Day / Night Yes (with removable IR-cut filter)
Focal Length 4.7 ~ 103 mm
Maximum Aperture F/1.6
Horizontal FOV 61.9° ~ 3.4°
Operation
Focus Auto / Manual
Zoom 22x
Iris Auto / Manual
IR LED Quantity 10 IR LEDs
Max. IR Distance 150 m (492 ft)
Video
Video Compression H.264, MJPEG
Video Streaming Triple streams from H.264 or MJPEG
Video Resolution
Main Stream 1920 x 1080 (Default), 1280 x 720, 720 x 576, 704 x 288, 352 x 288
Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 352 x 288
Third Stream
(Closed by Default)
720 x 576, 704 x 288, 352 x 288
Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).


GV-SD2301 February 21, 2018
- 3 -
Audio
Audio Compression G.711
Audio Support Two-way Audio
Network
Interface 10/100 Ethernet
Protocol
DHCP, FTP, HTTP, HTTPS, IPv4, ICMP, L2TP, NTP, RTP, RTSP, SMTP, SIP, TCP, UDP,
ONVIF (Profile S)
Mechanical
Connectors
Power 2 pin wire (DC 24V, 2.5A)
Ethernet 10/100 Base-T, RJ-45 connector
Audio 1 in (Audio In Wire); 1 out (Audio Out Wire)
Local Storage
Micro SD card slot (SDHC/SDXC, Class 10)
*UHS-I and UHS-II card types are not supported.
TV-Out BNC connector
Digital I/O I/O wires
Operation
Pan Travel 360° endless
Tilt Travel -15° ~ 195°
Manual Speed
Pan 0.1° ~ 240°/s
Tilt 0.1° ~ 160°/s
Preset Speed
Pan 300°/s
Tilt 240°/s
Presets
Max. Number 255
Accuracy 0.1°
Patrol
Max. Number 16
Max. Presets Allowed 32
OSD 8
Privacy Mask 24
Proportional Pan & Tilt Auto (Pan and tilt speed proportional to zoom ratio)
Automatic Function Preset, Patrol (Including Sequence, Auto Pan, and Cruise)
Mechanical Flip Yes
Digital Slow Shutter On / Off
Motion Detection On / Off
Wide Dynamic Range On / Off
Day/Night: Mechanical IR Cut Filter On / Off
Image Rotation Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
3D & 2D Noise Reduction 0 ~ 255
Alarm
Input 2
Output 1
Reaction Alarm Output, PTZ to Preset, Trigger Storage
General
Operating Temperature -40°C ~ 70°C (-40°F ~ 158°F)
Heater Heater On: -15°C (5°F)
Fan-On Constantly On
Humidity 20% ~ 90% (non-condensing)
Dimensions Ø 227 x 359.4 mm (8.94” x 14.15”)
Weight 5.4 kg (11.9 lb)
Power Source 24V AC / 24V DC
Power Consumption 52.5 W
Ingress Protection IP66
Vandal Resistance IK10 for metal casing
Regulatory CE, FCC, RoHS compliant







GV-SD2301 February 21, 2018
- 4 -
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, PTZ Control, Preset, Patrol, Image Quality,
Bandwidth Control, Image Snapshot, 2-way Audio, Digital Zoom, 3D Positioning
(Optical Zoom), Text Overlay, Image Masking
Language English
Applications
Network Storage GV-DVR / NVR, GV-VMS, GV-Recording Server
Live Viewing Browser (IE, Firefox, Safari)


Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Mind the following when using an inserted memory card for recording:
• Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
• The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
• Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
• To avoid power outage, it is highly suggested to apply a battery backup (UPS).
• For better performance, it is highly suggested that you use a micro SD card of SDHC/SDXC, Class 10.
• Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3. Specifications are subject to change without notice.

Packing List
1. GV-SD2322-IR Speed Dome
2. 24V AC Power Adapter
3. M4 Hex Key
4. Waterproof Rubber Set
5. Waterproof Requirements
6. Download Guide
7. Warranty Card

Accessories
Model No. Name Details
GV-Mount104 Straight Tube Kit



Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x
13.1”)
Weight: 1.8 kg (3.97 lb)
GV-Mount105 Straight Tube and
Junction Box Kit



Dimensions: 256 x 256 x 297 mm (10.1” x 10.1” x
11.7”)
Weight: 6.2 kg (13.67 lb)
GV-Mount210 Pendant Tube


Dimensions: 200 x 140 x 249 mm (7.9” x 5.5” x
9.80”)
Weight: 1.1 kg (2.43 lb)






GV-SD2301 February 21, 2018
- 5 -
Model No. Name Details
GV-Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)
GV-Mount310 Concave Corner Adapter
Kit


Dimensions: 123.3.6 x 393.1 mm (4.9” x 15.5”)
Weight: 2.96 kg (6.53 lb)
GV-Mount400 Pole Mount Bracket Kit
(Ø 4" ~ 6")


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap: Ø 4" ~ 6"
GV-Mount410 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap: Ø 6" ~ 7.5"
GV-Mount501 Convex Corner Box
Mount



Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x
10.1”)
Weight: 4.8 kg (10.6 lb)

GV-Mount702 Extension Tube


Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
