GV-RFER12700

GV-RFER12700 5/28/2024  - 1 -  GV-RFER12700 12MP H.265 Super Low Lux WDR IR Fisheye IP Camera  Introduction  GV ‐RFER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling  or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at  reduced network bandwidths. The camera adheres to IP66 standard and can be powered through PoE.  Key Features  •1/2.3" progressive scan CMOS sensor  •Min. illumination at 0.01 lux  •Trip le streams from H....

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-RFER12700 5/28/2024
- 1 -

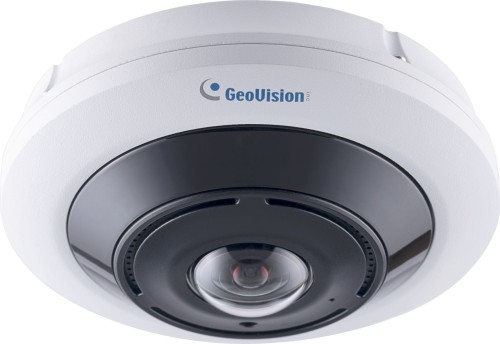

GV-RFER12700 12MP H.265 Super Low Lux WDR IR Fisheye IP Camera
Introduction
GV ‐RFER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling
or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at
reduced network bandwidths. The camera adheres to IP66 standard and can be powered through PoE.
Key Features
•1/2.3" progressive scan CMOS sensor
•Min. illumination at 0.01 lux
•Trip le streams from H.265, H.264
•Up to 15 fps at 3840 x 3000
•Day and Night function (with removable IR ‐cut filter)
•Intelligent IR
•IR distance up to 10 m (35 ft)
•Ingres s protection (IP66)
•Bu ilt ‐ in micro SD card slo t (SD/SDHC/SDXC/UHS ‐ I, Class 10) for local storage
•Two ‐ wa y audio
•Bu ilt ‐ in microphone and speaker
•One sensor input and one alarm output
•DC 12V / PoE (IEEE 802.af)
•Provides 360° and 180° panorama view
•Wide Dynamic Range (WDR)
•3D noise reduction
•Motion detection
•Ta mpering alarm
•Priv acy mask
•Tex t overlay
•12 languages supported
•ONVIF (Profil e G, S, T) conformant




GV-RFER12700 5/28/2024

- 2 -
Dimensions



Specifications
Camera
Image Sensor 1/2.3” progressive scan CMOS
Picture Elements 3840 (H) x 3000 (V)
Color 0.03 Lux (F2.0, AGC ON)
Minimum
Illumination
IR On 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/30000 sec)
White Balance Auto / Manual
Gain Control Auto, Manual
S/N Ratio 39.5 dB
WDR Yes
Optics Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Lens Type Fixed
Focal Length 1.6 mm
Maximum Aperture F/2
Mount M12
Image Format 1/2.3”
Horizontal FOV 180°
Focus Fixed
Zoom Fixed
Operation
Iris Fixed
IR LED Quantity 3 IR LEDs
Max. IR Distance 10 m (35 ft)
DORI Detect Observe Recognize Identify
Lens 1.6 mm 41.3 m (135.4 ft) 16.5 m (54.1 ft) 8.3 m (27.2 ft) 4.1 m (13.4 ft)
Operation
Video Compression H.265, H.264
Video Streaming Triple streams from H.265 & H.264
Frame Rate
25 fps at 3000 x 3000, 2560 x 2560, 2160 x 2160, 1520 x 1520, 480 x 480 (50
/ 60 Hz)
15 fps at 3840 x 3000, 1280 x 960, 640 x 480 (50 / 60 Hz)
*The frame rate and the performance may vary depending on the num ber of
connections and data bitrates (different scenes).
Video Analytics
Motion Detection, Audio Alarm
*Tamper detection and audio alarm are only accessible through the camera’s
Web interface, which can be used to trigger alerts such as e ‐mail and FTP




GV-RFER12700 5/28/2024

- 3 -
Image Setting
Brightness, Contrast, Saturation, Sharpness, IR ‐ CUT Mode, IR CUT Delay,
IR ‐ LED Low Beam Light, Angle Trad, White Balance, Shutter, Time Exposure,
3D Noise Reduction, WDR, White Balance, Display Mode, Image Orientation
(Flip, Mirror, 90°, 180° ‐ including Corridor format).
Ceiling Mount
Fisheye View, Cylinder, 2 PTZ, 4 PTZ, 180° panorama image, 360° panorama
image, 360° panorama image and PTZ, 360° panoramic image and 3 PTZ,
360° panoramic image and 6 PTZ, 360° panoramic image and 8PTZ, Fisheye
and 3 PTZ, Fisheye and 8 PTZ
Wall
Fisheye View, Panorama, 4 PTZ, 360° panoramic image and 3 PTZ, 360°
panoramic image and 8 PTZ, Fisheye and 3 PTZ, Fisheye and 8 PTZ
Desktop
Fisheye View, Cylinder, 4 PTZ, 180° panorama image, 360° panorama image,
360° panorama image and PTZ, 360° panoramic image and 3 PTZ, 360°
panoramic image and 6 PTZ, 360° panoramic image and 8 PTZ
Software
Dewarping
Tilt
Fisheye View, Panorama, 4 PTZ, 360° panoramic image and 3 PTZ, 360°
panoramic image and 8 PTZ, Fisheye and 3 PTZ, Fisheye and 8 PTZ
Audio Compression G.711
Audio Support Two ‐way Audio
Input 1 Input, dry contact, NO / NC
Digital I/O
Output 1 Relay Output (2A 30V DC / 0.5A 125V AC)
Video Resolution
Main Stream 3840 x 3000, 3000 x 3000 (Default), 2560 x 2560, 2160 x 2160, 1520 x 1520
Sub Stream 1280 x 960, 1088 x 1088 (Default), 720 x 720, 640 x 480, 480 x 480
Video
Resolution
Third Stream (Closed by Default) 640 x 480, 480 x 480
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile
G, S, T), RTP/RTSP, SMTP, SNMP, TCP, UPnP
Mechanical
Power DC Jack
Ethernet RJ ‐ 45
Audio 1 in (built ‐ in microphone), 1 out (built ‐ in speaker)
Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)
Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10), up to 256 GB
*UHS‐ II card type is not supported.
General
Operating Temperature ‐35°C ~ 60°C ( ‐31°F ~ 140°F)
Humidity 0% ~ 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 9.6 W
Dimension Ø 120 x 55 mm (4.7” x 2.1”)
Weight 400 g (0.88 lb)
Ingress Protection IP66
Certification CE, FCC, RoHS compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility
Language
English, German, Spanish, French, Japanese, Italian, Portuguese, Russian,
Turkish, Traditional Chinese, Korean, Ukrainian
Applications
Software Supported
GV ‐ VMS (V17.4.7 / V18.3.2, patch files required), GV ‐Control Center (V4.3,
coming soon), GV ‐Recording Server / Video Gateway (V2.2, coming soon),
GV ‐Edge Recording Manager Win version (V2.3, coming soon)
Smart Device Access GV ‐ Eye for iOS and Android (V3.2.0, coming soon)
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App

Note:
1. To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
2. Fisheye dewarping is only applicable on Internet Explorer or Internet Explorer mode on Microsoft Edge.
3. All specifications are subject to change without notice.



GV-RFER12700 5/28/2024

- 4 -
Packing List
1. GV ‐RFER12700 Fisheye Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide

Accessories
Model No. Name
Details
GV ‐Mount108 (must be used
with GV ‐Mount504 ‐ 1)
Pendant Mount


Dimensions: H=294 mm (11.5”)
Weight: 0.7 g (1.54 lb)
GV ‐Mount210 ‐ 2 (must be used
with GV ‐Mount504 ‐ 1)
Wall Pendant Mount


Dimensions: 169 x 98 x 180 mm
(6.5" x 3.8" x 7")
Weight: 0.5 g (1.1 lb)
GV ‐Mount213 ‐ 1 Wall Box Mount



Dimensions: Ø 126 x 48.9 mm

(4.9" x 1.9”)

Weight: 0.25 g (0.55 lb)
GV ‐Mount311 (must be used
with GV ‐Mount213 ‐ 1)
Corner Adaptor



Dimensions: 172.8 x 271.4x 200 mm (6.8”

x 10.68” x 7.87”)

Weight: 2.35 kg (5.18 lb)
GV ‐Mount504 ‐ 1 (must be used
with GV ‐Mount108 or
GV ‐Mount210 ‐ 2)
Wall Mount Bracket



Dimension: Ø 126 x 68.9 mm (4.9” x 2.7”)

Weight: 0.3 kg (0.66 lb)
GV ‐PA191 PoE Adapter



GV ‐PA191 is a Power over Ethernet (PoE)

adapter designed to provide power to the

IP device through a single Ethernet cable.
GV ‐PA301 Gigabit PoE Adapter



GV ‐PA301 is a Gigabit Power over Ethernet

(PoE) adapter.
GV ‐PoE Switch


GV ‐PoE Switch is designed to provide

power along with network connection for

IP devices. GV ‐PoE Switch is available in

various models with different numbers

and types of ports.




GV-RFER12700 5/28/2024

- 5 -
Power Adapter


Contact our sales representatives for the

countries and areas supported.
