GV-QSD5731-IR

GV-QSD5731-IR August 31, 2022  - 1 -  GV-QSD5731-IR (33X) 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome            • 1/2.8" progressive scan low lux CMOS sensor  • Min. illumination at 0.002 lux  • Quad streams from H.265, H.264 or MJPEG  • Up to 30 fps at 2592 x 1944  • 33x optical zoom and 10x digital zoom  • Day and night function (with removable IR-cut filter)  • Intelligent IR  • IR distance up to 150 m (500 ft)  • Wide Dynamic Range Pro (WDR Pro)  • Temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)  • Support for TV-out  • Two-way audio  • Built-in SD card slot (SDHC/SDXC, Class 10) for local storage  • Ingress protection (IP66)  • Vandal resistance (IK10 for housing)  • High PoE (PoE++, 60W) / AC 24V / DC 30V  • Pan 360° endlessly  • Tilt from -20° to 100°  • Pan and tilt speed of up to 280°/sec  • PTZ movement (Preset, Cruise, Auto Pan, Sequence)  • PTZ auto tracking  • Electrical Image Stabilizer (EIS)  • Servo Feedback, returning the camera view to the previous position  upon encountering external forces  • 3D noise reduction  • Privacy Mask  • 12 languages on Web interface  • ONVIF (Profile G, S, T) conformant  • TAI...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-QSD5731-IR August 31, 2022
- 1 -

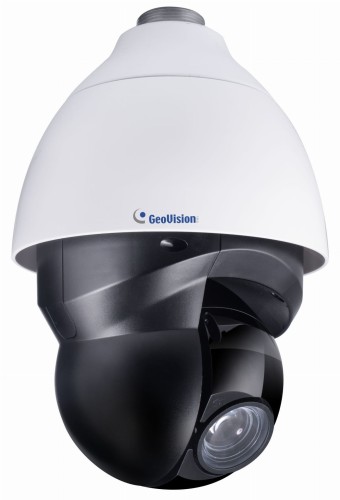

GV-QSD5731-IR (33X) 5MP H.265 Low Lux WDR Pro Outdoor IR IP Speed Dome





• 1/2.8" progressive scan low lux CMOS sensor
• Min. illumination at 0.002 lux
• Quad streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2592 x 1944
• 33x optical zoom and 10x digital zoom
• Day and night function (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 150 m (500 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Temperature tolerance (-40°C ~ 50°C / -40°F ~ 122°F)
• Support for TV-out
• Two-way audio
• Built-in SD card slot (SDHC/SDXC, Class 10) for local storage
• Ingress protection (IP66)
• Vandal resistance (IK10 for housing)
• High PoE (PoE++, 60W) / AC 24V / DC 30V
• Pan 360° endlessly
• Tilt from -20° to 100°
• Pan and tilt speed of up to 280°/sec
• PTZ movement (Preset, Cruise, Auto Pan, Sequence)
• PTZ auto tracking
• Electrical Image Stabilizer (EIS)
• Servo Feedback, returning the camera view to the previous position
upon encountering external forces
• 3D noise reduction
• Privacy Mask
• 12 languages on Web interface
• ONVIF (Profile G, S, T) conformant
• TAICS IoT Cyber Security certified

*Optional GV-PA902BT Gigabit PoE Adapter is required for applying
PoE function.
*Optional GV-Mount (GV-Mount104-1 / 105-1 / 210-1 / 208-4) is required for
installing GV-QSD5731-IR.

Introduction
GV-IP Speed Dome (GV-QSD5731-IR) is an outdoor network PTZ camera that offers 33x optical zoom and 10x digital zoom, capable
of showing smooth live view with great details. This camera can simultaneously deliver four video streams in resolutions up to 2592
x 1944 at 30 fps, which allows up to 150 m (500 ft) effective IR distance. GV-QSD5731-IR supports H.265 video codec to achieve
better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Wide surveillance coverage is made possible with 360° endless panning and -20°~100° tilting capacity. PTZ functions such as Preset,
Auto Pan, and Patrol can be programmed and activated by schedule. The GV-QSD5731-IR supports pan/tilt speeds ranging from a
fast patrol of 280° per second to a slow ramble of 0.1° per second with 0.1° pan accuracy for fast and accurate tracking ability.
GV-QSD5731-IR also features Servo Feedback and Electronic Image Stabilizer (EIS) technology. The Servo Feedback technology
ensures the camera view returns to the previous position when encountering external force (e.g. human interference) or
environmental vibration. EIS technology can effectively produce stable images by actively sensing directional movement of the
images and compensating accordingly; this is particularly useful for cameras installed at places where environmental movement (e.g.
strong wind, the passing-by heavy vehicles) is constant, and when high optical zoom is executed.



GV-QSD5731-IR August 31, 2022
- 2 -
Dimensions


Specifications
Camera
Image Sensor 1/2.8” progressive scan low lux CMOS
Optical Zoom 33x
Digital Zoom 10x
Picture Elements 2592 (H) x 1944 (V)
Minimum
Illumination
Color 0.02 Lux
B/W 0.002 Lux
IR ON 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/10000 sec)
White Balance Auto / Manual
Iris Control Auto / Manual
WDR Pro Yes
Optical Lens
Megapixel Yes
Day / Night Yes (with removable IR-cut filter)
Focal Length 4.6 ~ 152 mm
Maximum Aperture F/1.6
Horizontal FOV 55° ~ 2°
Operation
Focus Auto / Manual
Zoom 33x
Iris Auto / Manual
IR LED Quantity 16 IR LEDs
Max. IR Distance 150 m (500 ft)
Video
Video Compression H.265, H.264, MJPEG
Video Streaming Quad streams from H.265, H.264 or MJPEG
Video Resolution
Main Stream 2592 x 1944 (Default), 2560 x 1440, 1920 x 1080, 1280 x 1024, 1280 x 720, 800 x 600
Sub Stream
1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480 (Default), 352 x 240, 320 x
240
Third Stream
(Closed by Default)
1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480, 352 x 240, 320 x 240
Quad Stream
(Closed by Default)
1280 x 720, 1024 x 768, 800 x 600, 720 x 480, 640 x 480, 352 x 240, 320 x 240
Frame Rate
30 fps at 2592 x 1944 (60/50 Hz)
*The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).


GV-QSD5731-IR August 31, 2022
- 3 -
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation (Flip,
Mirror, 0°, 90°, 180°, 270°-including Corridor format)
Audio
Audio Compression G.711
Audio Support Two‐way Audio (external microphone and speaker required)
Network
Interface 10/100 Ethernet
Protocol
ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UpnP, SNMP, SMTP, RTP,
RTSP, HTTP, HTTPS, FTP, NTP, DDNS, ONVIF (Profile G, S, T)
Security Feature
- No default password
- 802.1x authentication
- HTTPS with SSL certificate stored within the camera
Mechanical
Connectors
Power Terminal Block (AC 24V), High PoE (PoE++, 60W)
Ethernet 10/100 Base-T, RJ-45 connector
Audio
1 in (Audio In Terminal Block); 1 out (Audio Out Terminal Block)
*The Audio In port only supports microphones with power supply.
Local Storage SD card slot (SDHC / SDXC, Class 10)
TV-Out BNC connector: NTSC (720 x 480 at 30 fps), PAL (720 x 576 at 25 fps)
Digital I/O I/O Terminal Block
RS-485 Terminal block (DSCP, Pelco D, Pelco P)
Operation
Pan Travel 360° endless
Tilt Travel -20° ~ 100°
Manual Speed
Pan 0.1° ~ 90°/s
Tilt 0.1° ~ 55°/s
Preset Speed
Pan 280°/s
Tilt 280°/s
Presets
Max. Number 256
Accuracy 0.1°
Sequence
Max. Number 8
Max. Presets Allowed 64
Auto Pan 4
Automatic Function Preset, Sequence, Auto Pan, Cruise
Mechanical Flip Yes
Digital Slow Shutter On / Off
Motion Detection On / Off
Wide Dynamic Range On / Off
Day/Night: Mechanical IR Cut Filter On / Off
Alarm Digital I/O
4 Inputs, dry contact, NO / NC
2 Relay Outputs (120mA 400V DC / 120mA 250V AC)
General
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Humidity 10% ~ 90% (non-condensing)
Dimensions Ø 207 x 300 mm (8.15” x 11.81”)
Weight 3.8 kg (8.38 lb)
Power Source 30V DC / 24V AC / High PoE (PoE++, 60W)
Power Consumption
AC24V, 44W Max.
DC30V, 43.87W Max.
Ingress Protection IP66
Vandal Resistance IK10 for housing
Regulatory CE, FCC, RoHS, TAICS (IoT Cyber Security) compliant
Power over Ethernet
PoE Standard PoE++ (60W) / PD
PoE Power Supply Type Mid-span
PoE Power Output 55V DC, 1.1A (60W Max.)
Web Interface
Installation Management Web-based configuration


GV-QSD5731-IR August 31, 2022
- 4 -
Maintenance Firmware upgrade through Web Browser or Utility
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Portuguese, Russian,
Spanish, Traditional Chinese, Simplified Chinese
Applications
Software Supported
GV-VMS (V17.3.0 / V18.1.1), GV-DVR / NVR (V8.8), GV-Control Center (V3.7.0),
GV-Recording Server / Video Gateway (V1.4.2), GV-Edge Recording Manager Win
version (V1.4.0), GV-Redundant / Failover Server (V1.1.0.0)
*It is required to apply patch files to all the supported software.
Smart Device Access GV‐Eye for iOS and Android
Live Viewing
Internet Explorer, Non-IE browser (Edge, Chrome, Firefox, Safari), Mobile App
*Edge, Chrome, and Firefox only support displaying live view with MJPEG and H.264.
*Safari only supports displaying live view with MJPEG.
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Mind the following when using an inserted memory card for recording:
• Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
• The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
• Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
• To avoid power outage, it is highly suggested to apply a battery backup (UPS).
• For better performance, it is highly suggested to use SD card of MLC NAND flash, Class 10.
• Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3. Specifications are subject to change without notice.

Packing List
1. GV- QSD5731-IR
2. M4 Screw with Rubber
3. 3-Pin Power Terminal Block (AC 24V)
4. Pendant cap
5. 14-Pin Alarm/Audio I/O Terminal Block
6. Download Guide
Note: GV-PA902BT Gigabit PoE Adapter and GV-Mount104-1 / 105-1 / 210-1 / 208-4 can be purchased upon request.

Accessories
Model No. Name Details
GV-Mount104-1 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)
*non-waterproof
GV-Mount105-1 Straight Tube and Junction
Box Kit


Dimensions: 256 x 256 x 297 mm (10.1” x 10.1” x
11.7”)
Weight: 6.2 kg (13.67 lb)
GV-Mount210-1 Wall Pendant Mount


Dimensions: 200 x 140 x 249 mm (7.9” x 5.5” x 9.80”)
Weight: 1.1 kg (2.43 lb)


GV-QSD5731-IR August 31, 2022
- 5 -
GV-Mount208-4 Swan Neck Mount


Dimensions: 1043 x 519 x 256 mm (41.06 x 20.43 x
10.08")
Weight: 10.6 kg (23.37 lb)
GV-Mount300-1 Convex Corner Adapter Kit


Dimensions: 238.6 x 395.2 x 210 mm
(9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)
GV-Mount310-1 Concave Corner Adapter
Kit


Dimensions: 111.2 x 369.9 x 210 mm
(4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)
GV-Mount400-1 Pole Mount Bracket Kit
(Ø 4" ~ 6")


Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV-Mount410-1 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")


Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
GV-Mount501 Convex Corner Box Mount


Dimensions: 136 x 256 x 256 mm (5.4 x 10.1 x 10.1”)
Weight: 4.8 kg (10.6 lb)
GV-Mount702 Extension Tube


Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
GV-PA902BT Gigabit PoE Adapter


Dimensions: 170 x 102 x 40 mm (6.69” x 2.02” x
1.57)
Weight: 950g (2.09 lb)
Power Adapter Contact our sales representatives for the countries and areas supported.
