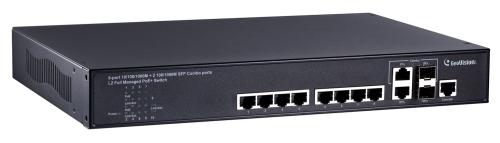

GV-POE0812

Availability: 0
Price: €452.20 452.20
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: GEOVISION
Product code: 84-POE0812-001D

Description

GV-POE0812 8-Port Gigabit 802.3at Web Management Layer 2+ Fully Managed  PoE Switch        * 8 ‐ Port 10/100/1000BaseT(X), PoE+ with 2 SFP Open Slots  * IEEE 802.3at Compliant (8 Ports at Full 15.4 W)  * Layer 2+ Fully Managed Software Features (DHCP server,  Static Routing)  * Up to 9.6 KB Jumbo Frame  * Web ‐based Configuration and Management  * VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation,  LACP, Bandwidth Control, Storm Control  * Max. 130 W Power Co...

Warning! Product withdrawn from production!

Replacement product: GV-APOE0811

Replacement product code: 84-APOE081-301D

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

GV-POE0812 8-Port Gigabit 802.3at Web Management Layer 2+ Fully Managed
PoE Switch



* 8 ‐ Port 10/100/1000BaseT(X), PoE+ with 2 SFP Open Slots
* IEEE 802.3at Compliant (8 Ports at Full 15.4 W)
* Layer 2+ Fully Managed Software Features (DHCP server,
Static Routing)
* Up to 9.6 KB Jumbo Frame
* Web ‐based Configuration and Management
* VLAN, QoS, DSCP, RSTP, IGMP Snooping, Link Aggregation,
LACP, Bandwidth Control, Storm Control
* Max. 130 W Power Consumption
* 6 kV Surge Protection
* Supports up to 8 GV ‐ IP Cameras

Introduction
GV ‐POE0812 is an 8 ‐ port 10/100/1000BaseT(X) with RJ ‐ 45 Connectors, PoE+ with 2 SFP Open Slots Rack ‐mount Web Smart PoE
Switch. The switch supports IEEE 802.3at Power over Ethernet standard and maximum 130 W power consumption. No special
network cable is required for connecting your power devices (PD), such as IP cam eras. The switch also supports Layer 2+ full
management software features, providing exceptionally smart Web management features such as VLAN, QoS, RSTP, IGMP Snooping,
LACP, etc. The switch is designed for medium or large network environment to strengthen its network connection and efficiency.

Dimensions







GV-POE0812 March 23, 2018
- 1 -

Specifications
Ports
Number of Ports
11 ports, including:
8 ‐ port 10/100/1000BaseT(X) with RJ ‐ 45 Connectors, PoE+
2 ‐ port Gigabit Copper/SFP Combo Uplink Port
1 ‐Console Port for CLI Management

Performance

MAC Address 8 K

Buffer Memory 4 Mbits

Jumbo Frames 9.6 KB

Transmission Method Store and Forward

Transmission Media
10/100BaseT(X) Cat. 5 UTP/STP
1000BaseT Cat. 5e, 6 UTP/STP

Filtering/Forwarding Rates
10 Mbps port ‐ 14,880 pps
100 Mbps port ‐ 148,800 pps
1000 Mbps port ‐ 1,488,000 pps

Backplane Capacity 20 Gbps

Smart Features

Layer supported L2+ (DHCP Server, Static Routing)

Port Based VLAN 10

Tag Based VLAN 10, VID 1 ~ 4095

IGMP Snooping V1 & V2 & V3

Link Aggregation up to 5 groups

Quality of Service (QoS) up to 8 queues, 802.1p, DSCP

Security
IEEE 802.1X, Source IP Filter, MAC Based Authentication, Web ‐Based Authentication,
HTTPS, SSHv2, RADIUS (Authentication, Accounting), TACACS+ (Authentication),
ACL(Access control list)

Port Management
Port State, Speed/Duplex, Flow Control Configuration, Port Mirroring , Broadcast Storm
Control, Maximum Frame Size, Excessive Collision Mode, PoE

Administrator Management
Command Line Interface (CLI), Web Based Management, Telnet, Access Management
Filtering (SNMP, WEB, SSH, TELNET), SNMP (v1, v2c, v3), RMON (1, 2, 3, 9 groups), DHCP
(Client, Relay, Option82, Snooping), System Event and Error Log, HTTP for Software
Download and Upgrade, Configuration Download and Upload, sFlow, Port Mirroring (One
to One, Many to One) Remote Ping, NTP, LLDP, UPnP, IPv6 Configuration

L2+ Features DHCP Server, Static Routing)

Mechanical Characteristics

LED Indicators Per Port, PoE, SFP, Power

Electrical Characteristics

Input 100 ~ 240 V/AC, 50 ~ 60 Hz

PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts
(8 Ports at Full 15.4 W / 4 Ports at Full 30 W)

PoE Power Supply Type Mid ‐Span

Max. Power Consumption 130 W

General

Dimensions (H x W x D) 44 x 330 x 210 mm (1.73” x 12.99” x 8.26”)

Weight 2.5 kg (5.51 lb)

Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature ‐20°C ~ 85°C ( ‐ 4°F ~ 185°F)

Humidity 5 to 90% RH (non ‐condensing)






GV-POE0812 March 23, 2018
- 2 -


Standards and Regulatory
Standards
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3az EEE
IEEE 802.3x Flow Control
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1Q VLAN Tagging
IEEE 802.1p Class of Service, Priority Protocols
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s ‐ Multiple Spanning Tree,
IEEE 802.3at Power Over Ethernet (PoE +)
IEEE 802.3af Power Over Ethernet (PoE)
IEEE802.1v ‐ Protocol VLAN
IEEE 802.1AB ‐ LLDP (Link Layer Discovery Protocol)
IEEE 802.1X ‐ Access Control

Regulatory
CE, FCC Class A, RoHS compliant
IEC 61000 ‐ 4 ‐5(Surge) Lv.5: Line to Line 2kV, Line to Ground 6kV

Note: Specifications are subject to change without prior notice.

Front View



Accessories
Name Details


GV ‐ LC



The SFP transceiver complies with IEEE 802.3z
1000BaseSX Ethernet, and provides the
media transmission distance up to 220 / 550 m.


GV ‐LC10



The SFP transceiver complies with IEEE 802.3z
1000BaseLX Ethernet, and provides the
media transmission distance up to 10 km.

Packing List
1. GV ‐POE0812
2. Screw x 8
3. Rack Mount Kit
4. AC Power Cord
5. Console cable
6. Software CD
7. GV ‐POE0812 Quick Start Guide





GV-POE0812 March 23, 2018
- 3 -
