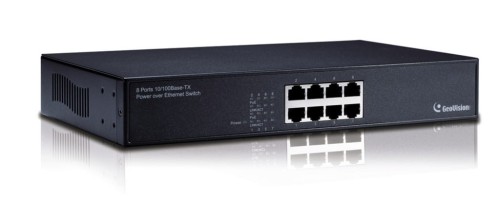

GV-POE0800

GV-POE0800 8-Port 802.3at PoE Switch       8 ‐ port 10/100BaseTX, PSE/Power over Ethernet Ports   IEEE 802.3at Compliant (8 Ports at Full 15.4 W)   Max. 130 W power consumption   Auto ‐MDI/MDI ‐ X   Auto ‐Negotiation   Non ‐Blocking   11" Metal Case   Up to 7 GV ‐ IP Cameras support  Introduction  GV ‐POE0800 is an 8 ‐ port 10/100BaseTX, PSE Desktop PoE Fast Ethernet Switch. The switch supports IEEE 802.3at Power over Ethernet  standard with up to 30 W per port and maximum 130 W power consumption per system. ...

Warning! Product withdrawn from production!

Replacement product: GV-POE0801

Replacement product code: 84-POE0801-001D

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-POE0800 8-Port 802.3at PoE Switch


 8 ‐ port 10/100BaseTX, PSE/Power over Ethernet Ports
 IEEE 802.3at Compliant (8 Ports at Full 15.4 W)
 Max. 130 W power consumption
 Auto ‐MDI/MDI ‐ X
 Auto ‐Negotiation
 Non ‐Blocking
 11" Metal Case
 Up to 7 GV ‐ IP Cameras support
Introduction
GV ‐POE0800 is an 8 ‐ port 10/100BaseTX, PSE Desktop PoE Fast Ethernet Switch. The switch supports IEEE 802.3at Power over Ethernet
standard with up to 30 W per port and maximum 130 W power consumption per system. No special network cable is required for
connecting your powered devices (PD), such as IP came ras. The switch is designed for small or medium network environment to
strengthen its network connection and efficiency. It also gives you the option of installing it in a 19" cabinet with a rack mount kit or
underneath a desk.

Specifications
Ethernet
Layer Supported L2

Ports

Number of Ports 8 ports (Fast Ethernet 10/100BaseTX, IEEE 802.3at PSE)

Performance

MAC Address 4 K

Buffer Memory 1.625 M bits

Transmission Method Store and Forward

Transmission Media
10BaseT Cat. 5 UTP/STP
100BaseTX Cat. 5 UTP/STP

Filtering/Forwarding Rates
100 Mbps port ‐ 148,800 pps
10 Mbps port ‐ 14,880 pps

Backplane Capacity 1.6 Gbps

Mechanical Characteristics

LED Indicators
Per Port: Link/Act
PoE Act/Status
Power

Electrical Characteristics

Input 100 ~ 240 V/AC, 50 ~ 60 Hz

PoE Power
Output
IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts
(8 Ports at Full 15.4 W / 4 Ports at Full 30 W)

PoE Power Supply Type End ‐span

Max. Power Consumption 130 W

General

Dimensions (H x W x D) 44 x 266 x 160 mm (1.73" x 10.47" x 6.3")

Weight 1.6 kg (3.53 lb)

Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)

Storage Temperature ‐20°C ~ 90°C ( ‐ 4°F ~ 194°F)

Humidity 10 to 90% RH (non ‐condensing)






GV-POE0800 March 23, 2018
- 1 -


Standards and Regulatory
Standards
IEEE‐ 802.3at PoE+ / PSE
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3x Flow Control

Regulatory CE, FCC Class A, RoHS compliant

Note: Specifications are subject to change without notice.

Dimensions


Front View



Packing List
1. GV ‐POE0800
2. Screw x 8
3. Rack Mount Kit
4. AC Power Cord
5. GV ‐POE0800 Quick Start Guide
GV-POE0800 March 23, 2018
- 2 -
