GV-PFER12800

GV-PFER12800 1/15/2024    - 1 -  GV-PFER12800 AI 12MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP  Camera            Introduction  GV-PFER12800 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling  or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at  reduced network bandwidths. The camera adheres to IP67 and IK10 standards and can be powered through PoE. Furthermore, the  camera has the capability to conduct on-edge fisheye dewarping, eliminating the need to utilize recourses from the backend devices.    Empowered by deep learning algorithms, AI technology distinguishes humans from other moving objects. Integrated with GeoVision  Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.    Key Features  • AI deep learning: Smart Perimeter Protection (Humans)  • 1/1.7" progressive scan CMOS sensor  • Min. illumination at 0.005 lux  • Dual streams from H.265, H.264  • Up to 30 fps at 3000 x 3000  • 6 on-edge dewarping modes  • Day and Night function (with removable I...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-PFER12800 1/15/2024

- 1 -

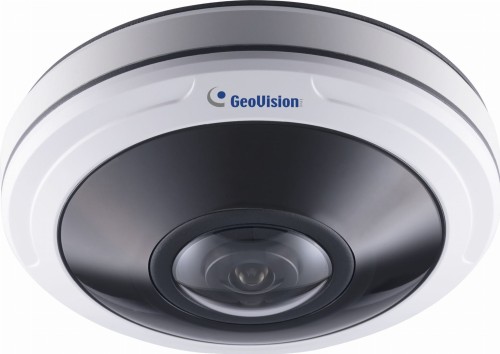

GV-PFER12800 AI 12MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP
Camera





Introduction
GV-PFER12800 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling
or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at
reduced network bandwidths. The camera adheres to IP67 and IK10 standards and can be powered through PoE. Furthermore, the
camera has the capability to conduct on-edge fisheye dewarping, eliminating the need to utilize recourses from the backend devices.

Empowered by deep learning algorithms, AI technology distinguishes humans from other moving objects. Integrated with GeoVision
Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Key Features
• AI deep learning: Smart Perimeter Protection (Humans)
• 1/1.7" progressive scan CMOS sensor
• Min. illumination at 0.005 lux
• Dual streams from H.265, H.264
• Up to 30 fps at 3000 x 3000
• 6 on-edge dewarping modes
• Day and Night function (with removable IR-cut filter)
• Intelligent IR
• IR distance up to 15 m (50 ft)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
• Two-way audio capable
• Built-in microphone
• DC 12V/ PoE (IEEE 802.af)
• Provides 360° and 180° panorama view
• Wide Dynamic Range Pro (WDR Pro)
• AI analytics (Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, People Counting)




GV-PFER12800 1/15/2024

- 2 -

• 3D noise reduction
• Motion detection
• Virtual PTZ function
• Auto Pan function
• Privacy mask
• Text overlay
• 20 languages on Web interface
• ONVIF (Profile G, S, T, M) conformant
• SIP/VoIP Support

Deep Learning Function
AI Perimeter Protection
(Intrusion, Crossing Line, Enter Area, Leaving Area)
People Counting



Dimensions








GV-PFER12800 1/15/2024

- 3 -
Specifications
Camera
Image Sensor 1/1.7” progressive scan CMOS
Picture Elements 4000 (H) x 3000 (V)
Minimum
Illumination
Color 0.005 Lux (F2.8, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000s)
White Balance Auto / Manual
S/N Ratio 55 dB
WDR Pro Yes
Dynamic Range 120 dB
Optics Lens
Megapixel Yes
Day/Night Yes (with removable IR‐cut filter)
Lens Type Fixed
Focal Length 1.98 mm
Maximum Aperture F/2.8
Mount M12
Image Format 1/1.7”
Horizontal FOV 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 6 IR LEDs
Max. IR Distance 15 m (50 ft)
DORI Detect Observe Recognize Identify
Lens 1.98 mm 38.4 m (125.9 ft) 15.2 m (49.8 ft) 7.3 m (23.9 ft) 3 m (9.8 ft)
Operation
Video Compression H.265, H.264
Video Streaming Dual streams from H.265 & H.264
Frame Rate
30 fps at 3000 x 3000, 2560 x 2560, 1920 x 1920, 1280 x 1280, 1280 x 960,
1024 x 1024, 736 x 736, 576 x 576 (60 Hz)
25 fps at 3000 x 3000, 2560 x 2560, 1920 x 1920, 1280 x 1280, 1280 x 960,
1024 x 1024, 736 x 736, 576 x 576 (50 Hz)
*The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).
Video Analytics
Motion Detection, Tamper Detection, Network Disconnection, Audio Alarm,
External Input, Object Left, Object Removed, Heat Map
*Tamper detection and audio alarm are only accessible through the camera’s
Web interface, which can be used to trigger alerts such as e‐mail and FTP
Heat Map On / Off
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction,
WDR, White Balance, Display Mode.
Hardware
(On-Edge)
Dewarping
Ceiling Mount
Fisheye View, 180° Panoramic View, 180° Panoramic View x 2, PTZ x 4,
Fisheye View + PTZ x 3, 180° Panoramic View + PTZ x 3
Wall Mount
Fisheye View, 180° Panoramic View, PTZ x 4, Fisheye View + PTZ x 3,
180° Panoramic View + PTZ x 3
Flat Mount
Fisheye View, 180° Panoramic View, 180° Panoramic View x 2, PTZ x 4,
Fisheye View + PTZ x 3, 180° Panoramic View + PTZ x 3
Audio Compression G.711
Audio Support Two‐way Audio (External speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)





GV-PFER12800 1/15/2024

- 4 -
Video Resolution
Software
Dewarping
Main Stream 3000 x 3000 (Default), 2560 x 2560, 1920 x 1920, 1280 x 1280
Sub Stream 1280 x 960, 1024 x 1024, 736 x 736 (Default), 576 x 576
Hardware
(On-Edge)
Dewarping
Main
Stream
Fisheye 3000 x 3000, 2560 x 2560, 1920 x 1920, 1280 x 1280
180° Panoramic
View
2944 x 736, 2560 x 640, 1920 x 480
180° Panoramic
View x 2
3008 x 1504, 2688 x 1344, 1920 x 960, 1280 x 640
PTZ x 4 3840 x 2176, 3072 x 1728
Fisheye View +
PTZ x 3
3840 x 2176, 3072 x 1728
180° Panoramic
View + PTZ x 3
3840 x 2176, 3072 x 1728
Sub
Stream
Fisheye 1280 x 960, 1024 x 1024, 736 x 736, 576 x 576
180° Panoramic
View
1920 x 480, 1280 x 320, 1024 x 256
180° Panoramic
View x 2
1280 x 640, 704 x 352, 640 x 320
PTZ x 4 1920 x 1088, 1280 x 720
Fisheye View+
PTZ x 3
1920 x 1088, 1280 x 720
180° Panoramic
View + PTZ x 3
1920 x 1088, 1280 x 720
Network
Interface 10/100/1000 Ethernet
Protocol
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS,
DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS,
IGMP, ICMP, SSL, ONVIF (Profile G, S, T, M)
Deep Learning Function
AI Analytics
Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing,
Loitering, People Counting
*Vehicle recognition is currently not applicable.
Mechanical
Connectors
Power DC Jack
Ethernet RJ-45
Audio
1 in (Built-in or external microphone)
1 out (4-pin terminal block pitch 3.5 mm (0.14”))
*The Audio In port only supports microphones with power supply.
Digital I/O 4-pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10)
*UHS-II card type is not supported.
General
Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)
Humidity 0% ~ 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 11 W
Dimension Ø 140 x 45.4 mm (Ø 5.5” x 1.8”)
Weight 700 g (1.54 lb)
Ingress Protection IP67
Vandal Resistance IK10
Certification CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility
Language
English, Korean, Traditional Chinese, Turkish, German, Polish, Italian,
Japanese, French, Persian, Portuguese, Russian, Czech, Dutch, Thai, Bulgarian,
Arabic, Slovenian, Finnish, Spanish




GV-PFER12800 1/15/2024

- 5 -

Applications
Software Supported
GV-VMS (V17.4.7 / V18.3.2, patch files required), GV-Edge Recording
Manager (V2.2.7), GV-Control Center (V4.2.0, coming soon), GV-Recording
Server (V2.1.0)
Smart Device Access GV-Eye for iOS and Android (V3.1.0, coming soon)
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari)
Note:
1. To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
2. All specifications are subject to change without notice.

Packing List
1. GV-PFER12800 Fisheye Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Trox Wrench
5. Hex Key H2.0
6. Download Guide

Accessories
Model No. Name Details
GV-Mount109 Pendant Mount


Dimensions: Ø144 x 290 mm (Ø5.66" x
11.41")
Weight: 400 g (0.88 lb)
GV-Moun110 (must be used
with GV-Mount109)
Extension Lever


Dimensions: Ø57 x 255 mm (Ø2.24" x
10.03")
Weight: 325 g (0.71 lb)
GV-Mount211-7 Wall Mount Bracket


Dimensions: 238 x 159 x 136 mm
(9.37" x 6.26" x 5.35")
Weight: 560 g (1.23 lb)
GV-Mount508 Junction Box


Dimensions: 145 x 167 x 33.5 mm
(5.71" x 6.57" x 1.32")
Weight: 200 g (0.44 lb)
GV-Mount430 (must be used
with GV-Mount211-7)
Pole Mount Bracket

Dimensions: 170 x 51.5 x 152.6 mm
(6.69" x 2.03" x 6.01")
Weight: 720 g (1.59 lb)





GV-PFER12800 1/15/2024

- 6 -
GV-PA191
Power over Ethernet
(PoE) Adapter


GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the
IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over Ethernet
(PoE) adapter.
GV-PoE Switch
GV-PoE Switch is designed to provide
power along with network connection for
IP devices. GV-PoE Switch is available in
various models with different numbers
and types of ports.
Power Adapter
Contact our sales representatives for the
countries and areas supported.
