GV-PA903BT

GV-PA903BT January 16, 2023  GV-PA903BT Gigabit BT PoE++ Adapter          Introduction  GV‐PA903BT is a Gigabit PoE (Power over Ethernet) adapter. The adapter supports the IEEE802.3af/at/bt Power over Ethernet  standard, with a maximum power output of 95 W over a single Ethernet cable. You can mount an IP camera anywhere in a building  where power outlets are scarce by using the PoE adapter.    Specifications  Port  Data in port: 1 x 10/100/1000 Mbps RJ-45 port  PoE out port: 1 x 10/100/1000 Mbps RJ-45 port  Power Source High Power Over Ethernet (Max. 95 W)  PoE Power Output DC 54V (Max. 95 W)  Ethernet Cable Length Max 100 m (328 ft) from GV-PA903BT to IP device, CAT5e, 6  Power Input AC 100V ~ 240V, 50/60 Hz  Operating Temperature  Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F )  Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F )  Humidity  Operating Humidity: 10% ~ 90% non-condensing  Storage Humidity: 5% ~ 90% non-condensing  Surge Protection ±4 kV  Dimensions (L x W x H) 170 x 100 x 40 mm (6.69” x 3.94” x 1.57”)  Weight 0.76 kg (1.68 lb)  Standard IEEE802.3af/at/bt        GV-PA903BT January 16, 2023    Dimensions

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-PA903BT January 16, 2023

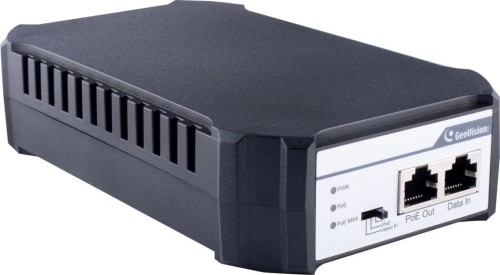

GV-PA903BT Gigabit BT PoE++ Adapter




Introduction
GV‐PA903BT is a Gigabit PoE (Power over Ethernet) adapter. The adapter supports the IEEE802.3af/at/bt Power over Ethernet
standard, with a maximum power output of 95 W over a single Ethernet cable. You can mount an IP camera anywhere in a building
where power outlets are scarce by using the PoE adapter.

Specifications
Port
Data in port: 1 x 10/100/1000 Mbps RJ-45 port
PoE out port: 1 x 10/100/1000 Mbps RJ-45 port
Power Source High Power Over Ethernet (Max. 95 W)
PoE Power Output DC 54V (Max. 95 W)
Ethernet Cable Length Max 100 m (328 ft) from GV-PA903BT to IP device, CAT5e, 6
Power Input AC 100V ~ 240V, 50/60 Hz
Operating Temperature
Operating Temperature: 0°C ~ 40 °C (32 °F ~104°F )
Storage Temperature: -40 °C ~ 70 °C (-40 °F ~158°F )
Humidity
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Surge Protection ±4 kV
Dimensions (L x W x H) 170 x 100 x 40 mm (6.69” x 3.94” x 1.57”)
Weight 0.76 kg (1.68 lb)
Standard IEEE802.3af/at/bt



GV-PA903BT January 16, 2023

Dimensions




Packing List
1. GV-PA903BT x 1
2. Power Cord x 1
3. Rubber Feet x 4

Compatible GV-IP Devices
• GV-LPR2800-DL
• GV-PPTZ7300 / 14021 / 14031
• GV-SD2301 V2 / 2411 V2 / 2723-IR / 2733-IR
• GV-SV48000
