GV-PA191

January 25, 2019            Introduction  The GV ‐PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.  Adopting the PoE adapter enables you to mount an IP device anywhere in a building where power outlets are not available.    Specifications  PoE Standard Power over Ethernet (Max 19 W)    PoE Output (10 / 100 Out) DC 48 V, 400 mA (Max. 19 W)    Ethe...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

January 25, 2019





Introduction

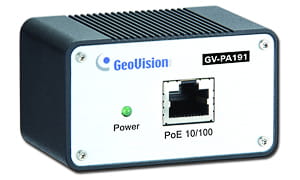

The GV ‐PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
Adopting the PoE adapter enables you to mount an IP device anywhere in a building where power outlets are not available.

Specifications
PoE Standard Power over Ethernet (Max 19 W)

PoE Output (10 / 100 Out) DC 48 V, 400 mA (Max. 19 W)

Ethernet Cable Length Max 100 m (328 ft) from Hub to IP device, CAT5

Power Input DC 48 V, 400 mA

Operation Temperature ‐ 10 °C ~ 50 °C (14 °F ~ 122 °F)

Dimensions (L x W x H) 43 x 69 x 40 mm (1.69 x 2.72 x 1.57”)

Weight 130 g (0.29 lb)

Installation Guide GV ‐ P A191 PoE Adapter
