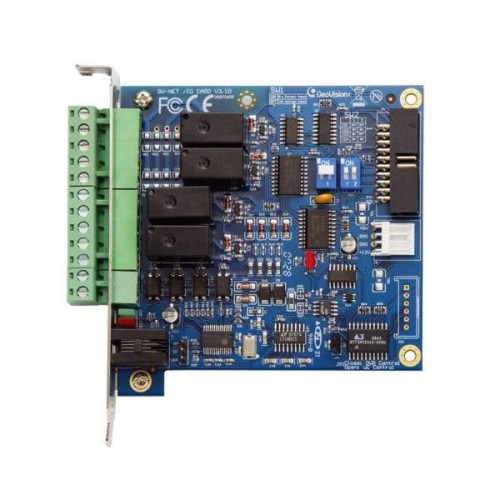

GV-NET/IO

The GV ‐ NET/IO card provides 4 inputs and 4 relay outputs. It supports both DC and AC output voltages and provides a USB port as well.    Specifications  32‐ bit Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2008  OS Supported  64‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008 / Serve...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

The GV ‐ NET/IO card provides 4 inputs and 4 relay outputs. It supports both DC and AC output voltages and provides a USB port as well.

Specifications
32‐ bit Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2008
OS Supported
64‐ bit Windows 7 / 8 / 8.1 / 10 / Server 2008 / Server 2012 / Server 2012 R2
Input 4
Dry ‐ Contact Input
Input Signal
Wet ‐ Contact : 9~30V AC/DC
Relay Output 4
Relay Status Normal Open
USB Connection 30V DC, 3A
Output
Relay
Capacitanc
e
RS ‐ 232 Connection
125 / 250V AC, 3A
30V DC, 3A
RJ ‐ 11 to DB9
RJ ‐ 11 to USB Interface
3‐ pin internal USB to internal USB
I/O Box Mode Without GV ‐Video Capture Card
Mode Switch
NET/IO Card Mode With GV ‐ Video Capture Card
Address 1‐ 4
Communication RS ‐ 485, USB, RS ‐ 232
Environmental Conditions 0~50°C / 32~122°F , 5%~95% (non ‐ condensing)
Dimensions (W x H) 90 x 99 ( mm) / 3.90 x 3.54 (in)
Installation Guide GV ‐ NET/IO Card V3.2
Note: All specifications are subject to change without notice.


March 9, 2016
