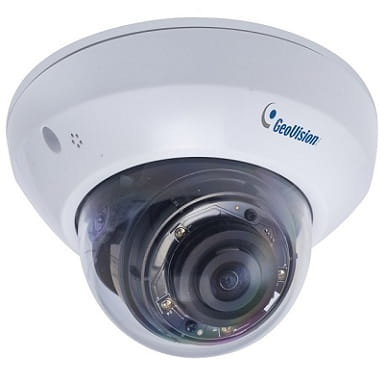

GV-MFD2700-2F

Availability: 0
Price: €271.95 271.95
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: GEOVISION
Product code: 84-MFD2700-2F10

Description

GV-MFD2700 Series September 15, 2017  - 1 -  GV ‐MFD2700 Series 2MP H.265 Super Low Lux WDR Pro IR Mini Fixed Dome      * 1/2.8’’ progressive scan super low lux CMOS  * Min. illumination at 0.004 lux  * Triple streams from H.265, H.264 and MJPEG  * Up to 30 fps at 1920 x 1080  * Two ‐way audio  * Intelligent IR  * 3 ‐ axis mechanism (pan / tilt / rotate)  * One sensor input and ...

Warning! Product withdrawn from production!

Replacement product: GV-TDR2700

Replacement product code: 84-TDR2700-0F10

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

GV-MFD2700 Series September 15, 2017
- 1 -
GV ‐MFD2700 Series 2MP H.265 Super Low Lux WDR Pro IR Mini Fixed Dome


* 1/2.8’’ progressive scan super low lux CMOS
* Min. illumination at 0.004 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Two ‐way audio
* Intelligent IR
* 3 ‐ axis mechanism (pan / tilt / rotate)
* One sensor input and alarm output
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
* Day and night function (with removable IR ‐cut filter)
* Megapixel lens
* 12V DC / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* 3D noise reduction
* Smart streaming
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows ,
Mac ver sion)
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* No Memory card slot & local storage function for Argentina.
* Smart streaming requires GV ‐DVR / NVR V8.7.0.0, GV ‐VMS V16.10.3.0
or later software versions.


Introduction
GV ‐MFD2700 Series offers an indoor, fixed, mini ‐sized network camera with 3 ‐axis mechanism for easy and flexible installation. The
camera can support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced
network bandwidths. GV ‐MFD2700 can process scenes with contrasting intensity of lights and pr oduce clear image using the built ‐ in
WDR Pro. The camera is equipped with a Super Low Lux CMOS image sensor which allows the camera to provide a color live view in
near darkness.


Models
Models Iris Focal Length (mm)
Maximum Aperture Image Format
GV ‐MFD2700 ‐ 0F 2.8 mm F/2.0
GV ‐MFD2700 ‐ 2F 3.8 mm F/1.8
GV ‐MFD2700 ‐ 6F
Fixed
2.3 mm F/2.2
1/2.7”

Active Tampering Alarm
Tampered Focus Change Camera Shift



Dimensions

GV-MFD2700 Series September 15, 2017
- 2 -

1
6
.
8
6

m
m

(
0
.
6
6
'
'
)

2
9
.
8
6

m
m

(
1
.
1
7
'
'
)

Specifications
Camera GV ‐MFD2700 ‐ 0F GV ‐MFD2700 ‐ 2F
GV ‐MFD2700 ‐ 6F
Image Sensor 1/2.8” progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)

Color 0.005 Lux

B/W 0.004 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance Automatic, Manual (2800 ~ 8500K)

Gain Control Automatic

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range Up to 130 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 2.8 mm 3.8 mm 2.3 mm
Maximum Aperture F/2.0 F/1.8 F/2.2
Mount M12, Pitch 0.5 mm
Image Format 1/2.7”

Horizontal FOV 100° 72° 140°
Focus Fixed
Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 4 IR LEDs

Max. IR Distance 20 m (65.6 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50 Hz: 25 fps at 1920 x 1080
60 Hz: 30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections and data
bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux
Enhancement, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way Audio (external speaker required)

Sensor Input 1 input (dry contact)

Alarm Output 1 digital output (200 mA 5V DC)


GV-MFD2700 Series September 15, 2017
- 3 -
Video Resolution
4:3 1280 x 960, 640 x 480

16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360

Main Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 256

Third Stream
(Closed by
Default)
5:4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS
(DSCP), RTP, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with a SSL certificate stored in the camera
‐ 256 ‐bit AES encryption (requires firmware V1.14 or later working with GV ‐ VMS V18.1 or later)

Mechanical

Temperature Detector Yes

Pan ‐ 45° ~ 45°

Tilt 0° ~ 70°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (built ‐ in or external microphone)
1 Out (stereo phone jack, 3.5 mm / 0.14’’)

Digital I/O I/O wires

Connectors
Local
Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up

Environment
Temperature
Operation
0°C ~ 50°C (32°F ~ 122°F)
Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 12V DC, 6.5W

Dimensions (without lens) 110 x 72.83 mm (4.33’’ x 2.86’’)

Weight 200 g (0.44 lb)

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PSE)

PoE Power Supply Type End ‐Span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish /
Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slo venian / Spanish
/ Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.1.0), GV ‐ VMS (V15.11.3.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V15.10.0.0), GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover Server
(V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor


GV-MFD2700 Series September 15, 2017
- 4 -

Note:
1. It is required to apply patch files to all the supported software.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Mind the following when using a memory card for recording:
* Recorded data on the memory card can be dam aged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan.
No guarantee is provided for such causes.
* The stored data can be lost if the memory card is not acce ssed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or wh en the memory card is frequently
undetected by the camera.
4. Specifications are subject to change without notice.

Packing List
1. H.265 Mini Fixed IP Dome
2. Screw x 2
3. Screw Anchor x 2
4. Focus Adjustment Ring
(only for GV ‐MFD2700 ‐0F/2F)
5. Installation Sticker
6. Audio and I/O extended cable
7. Torx Wrench
8. Download Guide
9. Warranty Card

Accessories
Model No. Name Details

GV ‐Mount910 Power Box Mount Bracket


Dimensions: 112 x 98 x 7.5 mm
(4.4’’ x 3.9’’ x 0.3’’)
Weight: 105 g (0.23 lb)

GV ‐Mount913 Power Box Mount Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)
Weight: 180 g (0.4 lb)

GV ‐Mount918

Wall Mount Bracket for
MFD/MDR/EFD/EDR


Dimensions: Ø 145 x 117 x 96 mm
(Ø 5.71’’ x 4.60’’ x 3.78’’)
Weight: 350 g (0.77 lb)

GV ‐PA191 PoE Adapter

The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.

GV ‐Relay V2 The GV ‐Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4
relay outputs, and each can be set as
normally open (NO) or normally closed (NC)
independently as per your requirement.


GV-MFD2700 Series September 15, 2017
- 5 -

Model No. Name Details
GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
