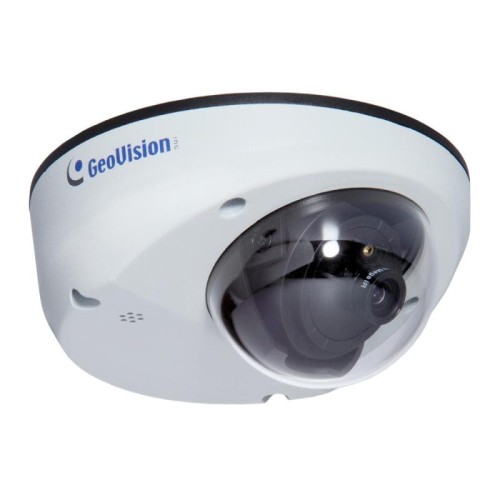

GV-MDR1500-2F

Availability: 0

Price: €376.32 376.32

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 01609

ask about product or pricing

Description

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-MDR1500 Series 1.3MP H.264 Super Low Lux WDR Mini Fixed Rugged Dome

* 1/3" progressive scan super low lux CMOS
* Min. illumination at 0.01 lux
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1280 x 1024
* Wide Dynamic Range (WDR)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* EN50155 compliance for rolling st ock applications
* Wide temperature tolerance ( ‐ 30 °C ~ 50 °C / ‐ 22 °F ~ 122 °F)
* 3 ‐ axis mechanism:
pan ( ‐ 45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
* PoE (IEEE 802.af)
* Built ‐ in microphone
* Built ‐ in micro SD card slot (SD/SDHC) for local storage
* Recording assigned by GV ‐Edge Recording Manager (Windows ,
Mac ver sion)
* Day and night function (electronic)
* 3D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Privacy mask
* Text overlay
* IP address filtering
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More Storage Option ‐ NAS
* No Memory Card Slot & local storage function for Argentina.
Introduction
The GV ‐MDR1500 Series are outdoor, fixed, mini ‐sized network cameras with different lens options. With super low lux CMOS image
sensor, the cameras can produce color images in low ‐light conditions. The cameras adhere to IK10 and IP67 standards. GV ‐MDR1500
Series are adjustable in 3 axis (pan, tilt and rot ate) and can be connected through PoE.

Models
Model Iris Focal Length (mm) Maximum Aperture Image Format
GV ‐MDR1500 ‐ 1F Fixed 2.8 F/2.0 1/3’’
GV ‐MDR1500 ‐ 2F Fixed 3.8 F/1.8 1/3’’

Active Tampering Alarm
Tampered Focus Change Camera Shift

GV-MDR1500 Series January 4, 2018
- 1 -

Overview
* Dimensions

* LAN Connector
1. Waterproof M12 4 ‐ Pin Female Connector (for motor vehicles)

Ø14.7 mm (0.58'')

2. Small Waterproof Connector

42.8 mm (1.69")
ø19.6 (0.77”)

Specifications
Camera GV ‐MDR1500 ‐ 1F
GV ‐MDR1500 ‐ 2F
Image Sensor 1/3" progressive scan super low lux CMOS
Picture Elements 1280 (H) x 1024 (V)

Color

Minimum Illumination
BW
0.01 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 55 dB

WDR Yes

Lens

Megapixel Yes

Day/Night Yes (electronic)

Iris Fixed

Focal Length 2.8 mm 3.8 mm
Maximum Aperture F/2.0 F/1.8
Mount M12, Pitch 0.5 mm
Image Format 1/3”

Horizontal FOV 88° 64°
GV-MDR1500 Series January 4, 2018
- 2 -

GV-MDR1500 Series January 4, 2018
- 3 -

Lens
Focus Fixed

Zoom Fixed

Operation
Iris Fixed

Operation

Video Compression H.264, MJPEG

Video Streaming Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 1280 x 1024 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less
50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N
sensitivity, WDR, Defog,
Super Low Lux, Noise Reduction, Metering

Audio Compression G.711, AAC (optional)

Audio Support One ‐ Way Audio

Video Resolution

4:3 1280 x 960, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024 (Default), 640 x 512, 320 x 256

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 252

Sub Stream
5:4 640 x 512, 320 x 256 (Default)

Network

Interface 10/100 Ethernet

Ethernet Protocol
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA,
RTSP, SNMP, QoS (DSCP), ONVIF (Profile S)

Mechanical

Temperature Detector Yes

Pan ‐ 45° ~ 45°

Tilt 0° ~ 90°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power PoE (IEEE 802.3af)

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45

Audio Built ‐ in microphone

Connectors
Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
* SDXC and UHS ‐ I card types are not supported.

LED Indicator 3 LEDs: Link, Power, Status

General

Environment Temperature ‐30 °C ~ 50 °C ( ‐ 22 °F ~ 122 °F)

Humidity 10% to 90% (no condensation)

Power Source PoE (IEEE 802.3af)

Max. Power Consumption 3.47 W

Camera Body ø 115 x 59.2 mm

Cable Length 1.054 m (41.5”)

Cable Diameter ø 6.2 mm

Dimensions
Maximum
Connector
Diameter
ø 27 mm

Weight 568 g (1.3 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, RoHS compliant

Power over Ethernet

PoE Standard
PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type
End ‐Span
PoE Power Output
Per Port 48V DC, 350mA. Max. 15.4 watts

Web Interface
Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text
Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian /
Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian /
Simplified Chinese / Slovakian / Sloven ian / Spanish / Swedish / Thai / Traditional
Chinese / Turkish

Applications

Network Storage GV ‐DVR/NVR, GV ‐Backup Center, GV ‐Recording Server, GV ‐ VMS

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its l ifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
2. Specifications are subject to change without notice.

Packing List
1. Mini Fixed Rugged Dome with 2 options for its
LAN connector (connector for motor vehicles
or for general use)
2. Torx Wrench
3. Self Tapping Screw x 2
4. Screw Anchor x 2
5. Cable stopper
6. Cable Connector
7. Installation sticker
8. Silica gel bag x 2
9. Ferrite cor e for vehicle installation
10. Adhesive tape x 2
11. Download Guide
12. Warranty Card

Accessories
Model No./Name
Details
GV ‐Mount910 Power Box Mount Bracket

Dimensions: 112 x 98 x 7.5 mm (4.4’’ x 3.9’’ x 0.3’’)
Weight: 105 g (0.23 lb)

GV-MDR1500 Series January 4, 2018
- 4 -

Model No./Name
Details
GV ‐Mount913 Power Box Mount Bracket

Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)
Weight: 180 g (0.4 lb)

GV ‐Mount918 Wall Mount Bracket for
MFD/MDR/EFD/EDR

Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71” x 4.60” x 3.78")
Weight: 350 g (0.77 lb)

GV ‐PA191 PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐ PoE Switch
GV ‐ PoE Switch is designed to provide power along with network connection for IP
devices. GV ‐ PoE Switch is available in various models with different numbers and types of
ports.

GV-MDR1500 Series January 4, 2018
- 5 -
