GV-MD8710
Description
GV-MD8710 April 28, 2020 - 1 - GV-MD8710 8MP H.265 2x Zoom Super Low Lux WDR Pro Motorized IR IP Dome * 1/2” progressive scan super low lux CMOS * Min. illumination at 0.03 lux * Triple streams from H.265, H.264 and MJPEG * Up to 30 fps at 3840 x 2160 * Motorized varifocal lens for remote focus/zoom adjustments * Intelligent IR * IR distance up to 30 m (100 ft) * Day and Night function (with removable IR ‐cut filter) * Wide Dynamic Range Pro (WDR Pro) * 3 ‐...
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-MD8710 April 28, 2020
- 1 -

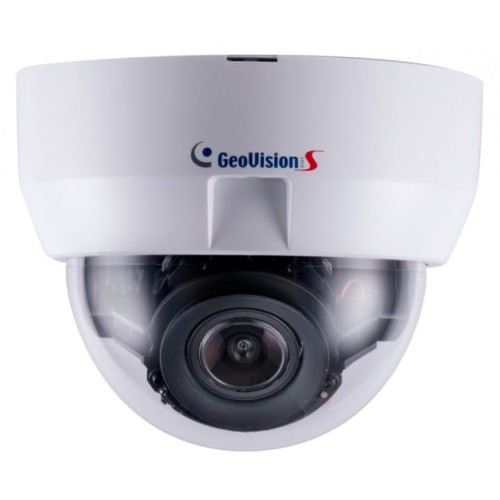

GV-MD8710 8MP H.265 2x Zoom Super Low Lux WDR Pro Motorized IR IP Dome
* 1/2” progressive scan super low lux CMOS
* Min. illumination at 0.03 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 30 fps at 3840 x 2160
* Motorized varifocal lens for remote focus/zoom adjustments
* Intelligent IR
* IR distance up to 30 m (100 ft)
* Day and Night function (with removable IR ‐cut filter)
* Wide Dynamic Range Pro (WDR Pro)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12 V / PoE (IEEE 802.3af)
* Two ‐way audio
* Built ‐ in Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
* 3D noi se reduction
* Smart streaming
* Defog
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S, T) conformant
* No Memory card slot & local storage function for Argentina.
* Smart streaming requires GV ‐DVR / NVR V8.7.0, GV ‐VMS V16.10.3
or later software versions.
Introduction
GV ‐MD8710 features a CMOS sensor equipped with WDR Pro, an automatic IR ‐cut filter and IR LEDs for day and night surveillance.
With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The camera supports H.265 video
codec to achieve better compression ratio wh ile maintaining high quality pictures at reduced network bandwidths. For night
operations, the camera allows up to 30 m (100 ft) IR effective distance. Adjustable in 3 axes (pan, tilt and rotate), it offers smart
surveillance solutions with all the essential features and excellent image quality.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-MD8710 April 28, 2020
- 2 -
Dimensions
Hard‐Ceiling Mount
In ‐Ceiling Mount
Specifications
Camera
Image Sensor 1/2” progressive scan super low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Color 0.04 Lux
B/W 0.03 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/16000 s)
White Balance Automatic, Manual (2800 ~ 8500 K)
Gain Control Automatic
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range Up to 120 dB
Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 4 ~ 8 mm
Lens Type Motorized varifocal lens
Maximum Aperture F/1.44
Mount Ø14 mm
Horizontal FOV 112° ~ 61°
GV-MD8710 April 28, 2020
- 3 -
Image Format 1/2.5”
Focus Auto
Zoom 2X optical zoom
Operation
Iris P ‐ iris
IR LED Quantity 4 IR LEDs
Max. IR Distance 30 m (100 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG
Frame Rate
50Hz: 25 fps at 3840 x 2160
60Hz: 30 fps at 3840 x 2160 (default)
* The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less,
Image Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR,
Defog, Low Lux Enhancement, Denoise, Metering
Audio Compression G.711
Audio Support Two ‐way audio (external microphone and speaker required)
Sensor Input 1 input (dry contact)
Alarm Output 1 output (200 mA 5 V DC)
Video Resolution
4:3 2592 x 1944, 2048 x 1536, 1600 x 1200, 1280 x 960
16:9 3840 x 2160 (Default), 2592 x 1520, 1920 x 1080, 1280 x 720
Main Stream
5:4 1280 x 1024
4:3 1024 x 768, 640 x 480, 320 x 240
16:9 1280 x 720, 640 x 360 (Default), 448 x 256
Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
4:3 640 x 480, 320 x 240
16:9 640 x 360 (Default), 448 x 256
Third Stream
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S,
T), QoS (DSCP), RTSP, SNMP, SMTP, TCP, UDP, UPnP, 3GPP/ISMA
Security WEP, WPA ‐PSK(TKIP), WPA ‐PSK(AES), WPA2 ‐PSK(TKIP), WPA2 ‐PSK(AES)
Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with SSL certificate stored within the camera
‐ 256 ‐bit AES encryption (requires working with GV ‐VMS V18.1 or later)
Mechanical
Temperature Detector Yes
Pan 0° ~ 350°
Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 340°
Power 2 ‐pin terminal block (DC 12 V, 1.25 A), PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable
Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Digital I/O I/O wires
Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.
LED Indicator 2 LEDs: Power, Status
GV-MD8710 April 28, 2020
- 4 -
General
Start ‐ up Environment
Temperature
Operation
0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% ~ 90% (no condensation)
Power Source 12 V DC / PoE (IEEE 802.3af)
Max. Power Consumption 9.5 W
Dimension ø 125 x 99.5 mm (4.92” x 3.92”)
Weight 500 g (1.10 lb)
Regulatory CE, FCC, LVD, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐Span and Mid ‐Span
PoE Power Output Per Port 48 V DC, 320 mA. Max. 15.4 W
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web browser or GV ‐ IP Device Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text
Overlay, Digital PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German /
Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian /
Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian /
Simplified Chinese / Slovakian / Sloven ian / Spanish / Swedish / Thai / Traditional
Chinese / Turkish
Applications
Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.2.1), GV ‐Edge Recording Manager Win Version
(V1.4.0), GV ‐Control Center (V3.6.0), GV ‐Recording Server (V1.4.2), GV ‐Redundant /
Failover Server (V1.1.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile app
Note:
1. It is required to apply patch files to some or all of the supported software.
2. Specifications are subject to change without prior notice.
Packing List
1. H.265 IR IP Dome
2. Screw x 3
3. Screw Anchor x 3
4. Torx Wrench
5. Shielding Ground Wire
6. I/O Wire
7. Installation Sticker
8. Download Guide
9. Warranty Card
Note: Power adapters can be purchased upon request.
Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit
Dimensions: 200 x 170 x 257.5 mm
(7.9” x 6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)
GV-MD8710 April 28, 2020
- 5 -
Model No. Name Details
GV ‐Mount101 Straight Tube Kit
Dimensions: 219 x 125 x 332 mm
(8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall Pendant Mount
Dimensions: 225 x 140 x 250 mm
(8.9” x 5.5” x 9.8”)
Weight: 900 g (1.98 lb)
GV ‐Mount203 Wall Mount and
Junction Box
Dimensions: 315 x 195.5 x 225 mm
(12.4” x 7.7” x 8.9”)
Weight: 2.95 kg (6.5 lb)
GV ‐Mount300 ‐ 1 Convex Corner Adapter
Kit
Dimensions: 238.6 x 395.2 x 210 mm
(9.4’’ x 15.5” x 8.2”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 ‐ 1 Concave Corner
Adapter Kit
Dimensions: 111.2 x 369.9 x 210 mm
(4.37’’ x 14.5” x 8.2”)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 ‐ 1 Pole Mount Bracket
Kit (Ø 4” ~ 6”)
Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 ‐ 1 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)
Dimensions:
Bracket: 68.4 x 240 x 163 mm
(2.69” x 9.44’’ x 6.41”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
GV-MD8710 April 28, 2020
- 6 -
Model No. Name Details
GV ‐Mount702 Extension Tube
Four options available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV ‐Mount909 Wall Mount Bracket
Dimensions: 170 x 150 x 110 mm
(6.7’’ x 5.9” x 4.3’’)
Weight: 610 g (1.34 lb)
GV ‐Mount910 Power Box Mount
Bracket
Dimensions: 112 x 98 x 7.5 mm
(4.4’’ x 3.9’’ x 0.3’’)
Weight: 105 g (0.23 lb)
GV ‐Mount913 Power Box Mount
Bracket
Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)
Weight: 180 g (0.4 lb)
GV ‐Mount915 In ‐Ceiling Mounting Kit
for GV ‐EFD2101 / 3101 /
5101
Dimensions: Ø 172.5 x 63.8 mm (Ø 7.04” x 2.5”)
Weight: 424 g (0.93 lb)
GV ‐Mount917 GV ‐EFD2101 / 3101 /
5101 Dome Housing
Dimensions: Ø 186 x 97.5 mm (Ø 7.3” x 3.8”)
Weight: 948 g (2.09 lb)
GV ‐PA191 PoE Adapter
Dimensions: 43 x 69 x 40 mm
(1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)
GV ‐ POE Switch
GV ‐POE Switch is designed to provide power along with network connection for IP
devices. The GV ‐POE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
