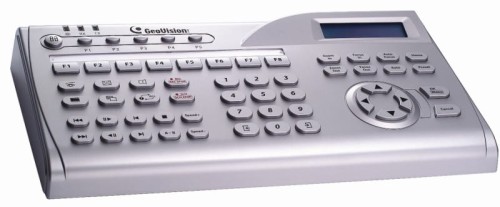

GV-Keyboard (DVR)

The GV ‐Keyboard V3 is designed to program and operate GV ‐System / GV ‐VMS, and it can also be connected with PTZ cameras directly  for PTZ control.    Key Features  * Up to 36 GV ‐ Systems / GV ‐ VMS supported  * Up to 8 monitors for Digital Matrix, TV Quad and Spot Monitor applications workable with multiple Keyboards  * PTZ camera control  * OSD panel supported    Specifications   ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

The GV ‐Keyboard V3 is designed to program and operate GV ‐System / GV ‐VMS, and it can also be connected with PTZ cameras directly
for PTZ control.

Key Features
* Up to 36 GV ‐ Systems / GV ‐ VMS supported
* Up to 8 monitors for Digital Matrix, TV Quad and Spot Monitor applications workable with multiple Keyboards
* PTZ camera control
* OSD panel supported

Specifications
GV‐System (GV ‐DVR/ NVR) GV‐ VMS

32‐ bit Windows XP / Vista / 7 / 8 / Server 2008 N/A

OS Supported
64‐ bit
Windows 7 / 8 / Server 2008 R2 / Server
2012
Windows 7 / 8 / 8.1 / 10 / Server 2008 R2
/ Server 2012 R2

System Supported GV ‐ System V8.4 or later GV ‐ VMS V14.10 or later

USB USB 2.0

DVR/RS ‐ 485+ DVR/RS ‐ 485‐ Connects to GV ‐ NET card, GV ‐NET/IO card, GV ‐ Hub V2 or GV ‐ COM V2

PTZ/RS ‐ 485+
PTZ/RS ‐ 485‐

Output
PTZ/RS ‐ 422+
PTZ/RS ‐ 422‐
Connects to PTZ cameras
RS ‐ 485 9,600 bps (between the keyboard and GV ‐System)

Communication
RS ‐ 485 / 422 2,400 ~ 115,200 bps (between the keyboard and PTZ cameras)

Power DC In DC 12V 1A

Operating Temperature 0~50°C / 32 ~122°F

Environmental
Conditions
Humidity 5%~95% (non ‐condensing)

Dimensions (L x W x H) 161 x 300 x 45 mm / 6.34 x 11.81 x 1.77 in

Quick Strat Guide GV ‐ Keyboard V3

Note:
1. Currently, GV ‐ Keyboard V3 does not support embedded operating systems.
2. All specifications are subject to change without notice.


GV-Keyboard V3 for GV-System / GV-VMS May 3, 2016
