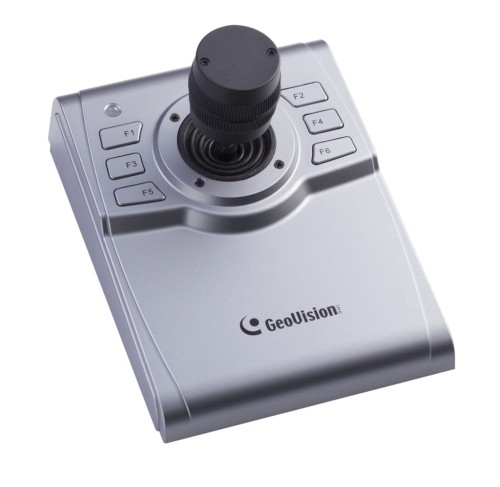

GV-Joystick

GV -Joystick V2 June 2, 2017      GV -Joystick V2 is a plug-an d-play device, used to pan, tilt, zoom and focus a PTZ camera. It can work with GeoVision software and  hardware independently, and its compatibility with GV-Keyboard V3 empowers the operation of GV applications as well.    Specifications  OS Supported  32 -bit Windows 7 / 8 / 8.1 / 10 / Server 2008  64 -bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 / Server 2012 R2  Communication  USB Connects to PC  RJ-45 Connects to GV -Keyboard V3  Power DC IN DC 5V 50mA  Environmental  Conditions  Operation Temperature 0 ~ 50°C / 32 ~ 122°F  Humidity 5% ~ 95% (non-condensing)  Dimensions (W x H x D) 160 x 90 x 118 mm (6.3 x 3.54 x 4.65")  Weight 500 g (1.1 lb)  Note:  1. When connected to GV-VMS / DVR / NVR, GV -Joystick V2 can control third-party PTZ IP cameras with ONVIF support.  2. When connected to GV-VMS / DVR / NVR, GV -Joystick V2 can control TVI / AHD PTZ cameras that are connected by coaxial  cables to GV-VS2400 / 2420 / 2800.  3. When connected to GV-DV...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV -Joystick V2 June 2, 2017


GV -Joystick V2 is a plug-an d-play device, used to pan, tilt, zoom and focus a PTZ camera. It can work with GeoVision software and
hardware independently, and its compatibility with GV-Keyboard V3 empowers the operation of GV applications as well.

Specifications
OS Supported
32 -bit Windows 7 / 8 / 8.1 / 10 / Server 2008
64 -bit Windows 7 / 8 / 8.1 / 10 / Server 2008 R2 / Server 2012 / Server 2012 R2
Communication
USB Connects to PC
RJ-45 Connects to GV -Keyboard V3
Power DC IN DC 5V 50mA
Environmental
Conditions
Operation Temperature 0 ~ 50°C / 32 ~ 122°F
Humidity 5% ~ 95% (non-condensing)
Dimensions (W x H x D) 160 x 90 x 118 mm (6.3 x 3.54 x 4.65")
Weight 500 g (1.1 lb)
Note:
1. When connected to GV-VMS / DVR / NVR, GV -Joystick V2 can control third-party PTZ IP cameras with ONVIF support.
2. When connected to GV-VMS / DVR / NVR, GV -Joystick V2 can control TVI / AHD PTZ cameras that are connected by coaxial
cables to GV-VS2400 / 2420 / 2800.
3. When connected to GV-DVR, GV -Joystick V2 can control analog PTZ cameras with Pelco-D / Pelco-P Protocol support.
4. All specifications are subject to change without notice.
Compatible GeoVision Product
 GV -VMS
 GV -DVR / NVR V8.5.9 or later
 GV -Center V2 V8.5.9 or later
 GV -Control Center and GV-Video Wall V3.1.2 or later
 GV -SNVR
 GV -IP Decoder Box and GV-Pad firmware V1.06 or later
 GV -IP Decoder Box Plus firmware V1.00 or later
 GV -Keyboard V3 firmware V3.0.0.1 or later
Note: The joystick is a HID device compatible with any third-party software supporting HID protocol.
Packing List
 GV -Joystick V2
 USB Type A to Type B Cable
 RJ-45 Cable
 Software CD
