GV-IP Decoder Box Plus November 16, 2016
- 1 -
GV-IP Decoder Box Plus





Introduction
The GV ‐ IP Decoder Box Plus is designed to decode incoming IP streams from GeoVision and third ‐ party IP devices, and to serve as a
medium for connecting the cameras and the monitor for video display in Single View, Quad View, and 9 ‐Division View. It supports
third ‐ party IP cameras that adhe re to RTSP or ONVIF, and can automatically search for ONVIF ‐compliant third ‐ party IP devices under
the same LAN. To be used with only a monitor, the GV ‐ IP Decoder Box Plus provides a cost ‐effective solution for video surveillance as
opposed to the traditional DVR and PC setup. Th e security administrator can monitor channels, take snapshots of critical moments,
and pause at a channel when events occur. GV ‐Joystick V2 can be installed to control GeoVision and third ‐ party PT / PTZ / Speed Dome
cameras.



GV-IP Decoder Box Plus November 16, 2016
- 2 -

Features
* Decode video streams in H.264 codec up to 30 fps
* Decode up to 4 megapixel IP cameras
* Decode up to 64 IP streams
* Automatically search for ONVIF IP devices
* Support for third ‐ party IP cameras that adhere to RTSP or ONVIF
* Support for fisheye dewarping in Sin gle View and top ‐left grid of Quad View
* Single View, Quad View and 9 ‐Division View in sequential display
* Display of Matrix view through GV ‐Mobile Server
* Support for 10/100/1000 Ethernet over LAN
* VGA or HDMI video output
* Video output resolution up to 1080p
* Control PTZ and Speed Dome cameras using GV ‐Joystick V2
* Remote firmware upgrade, IP address configuration and addition of new channel
* SD card and USB drive for snapshot storage and firmware upgrade
* No SD/SDHC card slot & local storage function for Argentina.

Compatible Devices
The GV ‐ IP Decoder Box Plus is compatible with:
1. GV ‐ IP Camera and GV ‐Video Server using H.264 codec
2. Third ‐ party IP devices that support H.264 and adhere to RTSP or ONVIF
3. GV ‐Mobile Server

To decode and display non ‐H.264 IP channels or analog channels, connect the dev ices to GV ‐System (GV ‐ DVR / NVR) and access them
through GV ‐Mobile Server.

Specifications
Video
Video Codec H.264

Audio Codec G.711

1 ‐ ch Division 2048 x 1944

4 ‐ ch Division Top ‐left grid: 2048 x 1944; Other grids: 1920 x 1080

Maximum
Resolution
9 ‐ ch Division 1280 x 720

HDMI 720p / 1080p
Video Output
at 60 Hz
VGA 1024 x 768

Network

Interface 10/100/1000 Ethernet

Protocol ONVIF, RTSP, TCP

Mechanical

Power Adapter 12V DC Jack

Ethernet RJ ‐ 45

Monitor Output HDMI, VGA

Memory Card SD/SDHC card slot (for Class 6 or above, FAT32 format)

Connectors
USB 2.0 USB slot x 4 (2.0 backward compatible, FAT32 format)

General

Operating Temperature 0 °C ~ 40 °C (32 °F ~ 104 °F)

Operating Humidity 20 % ~ 80 % (with no condensation)

Weather Resistance Indoor use only

Dimensions (W x H x D) 162.3 x 34.4 x 107.6 mm (6.39” x 1.35” x 4.24")

Net Weight 555 g (1.22 lb)

Power DC 12V

Power Consumption 36 W (max. 3 A at 12V DC)

Regulatory CE, FCC, LVD, RCM compliant



GV-IP Decoder Box Plus November 16, 2016
- 3 -

Language
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional
Chinese
Note: Specifications are subject to change without notice.

Dimensions






GV-IP Decoder Box Plus November 16, 2016
- 4 -

Overview

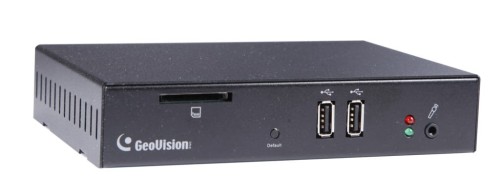

Front View



Rear View



Accessories
Name Details


Wall Mount Kit
Use the Wall Mount Kit to install your GV ‐ IP Decoder Box Plus on
wall.


GV ‐ Jo ystick V2
The GV ‐Joystick V2 facilitates focusing, zooming, panning, tilting of
GeoVision and third ‐ party PT, PTZ and Speed Dome cameras on
GV ‐ IP Decoder Box Plus.

Packing List
* GV ‐ IP Decoder Box Plus
* AC/DC Adapter (12 V, 3 A, 36 W)
* Power Cord
* USB Mouse
* Software DVD
* Warranty Card
