Warning! Product withdrawn from production!

Replacement product: GV-Housing103

Replacement product code: 84-HOUG103-001

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-Housing102 Housing Box February 27, 2018
- 1 -
GV-Housing10 2 Housing Box



Introduction

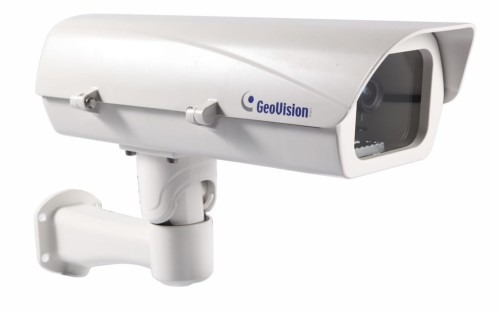

The GV-Housing10 2 is a housing box designed to support the outdoor installation of GV -BX Series and other Box Cameras with
external protection. It conforms to IP67 and IK10 standards, and is equipped with a heater and a fan. The GV -Housing10 2 also
supports optional GV -Mount accessories, allowing the Box Camera to be installed on the pole, convex and concave surfaces. Adopting
the housing box enables flexible installation of the Box Camera to meet your needs for IP surveillance in various environmental
conditions.

Applied to
• GV - BX2700 - 3V
• GV - BX4700 Series
• GV - BX5700 - 3V
* GV - BX 2700 -8F and GV - BX 57 00-8F are not supported.

Specifications
Power 2 pin terminal block (DC 12V 1.25A / AC 24V 0.58A)
Temperature
Start-up ‐30°C ~ 50°C (‐22°F ~ 122°F)
Operation ‐40°C ~ 50°C (‐40°F ~ 122°F)
Heater
On 15°C (59°F)
Off 25°C (77°F)
Fan
On 35°C (95°F)
Off 25°C (77°F)
Dimensions (L x W x H) 406 x 145 x 109 mm (16 x 5.7 x 4.3’’)
Weight 4.69 kg (10.34 lb) (including Supporting Tube)
Ingress Protection IP67
Vandal Resistance IK10 (for metal casing)
Note: Specifications are subject to change without notice.



GV-Housing102 Housing Box February 27, 2018
- 2 -
Dimensions





Accessories
Model No Name Details
GV-Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm
(9.4 x 16.1")
Weight: 4.27 kg (9.41 lbs)
GV-Mount310 Concave Corner Adapter
Kit


Dimensions: 123.3 x 393.1 mm
(4.9 x 15.5")
Weight: 2.96 kg (6.53 lbs)
GV-Mount400 Pole Mount Bracket Kit
( Ø 4 ~ 6 ” )


Bracket: 241 x 161 mm (9.5 x
6.3” )
Weight: 1.70 kg (3.75 Ib)
Steel Strap Diameter:
Ø 4 ~ 6 ”
GV-Mount410 Pole Mount Bracket Kit
( Ø 6 ~ 7.5 ” )


Bracket: 241 x 161 mm (9.5 x
6.3” )
Weight: 1.70 kg (3.75 Ib)
Steel Strap Diameter:
Ø 6 ~ 7.5 ”




GV-Housing102 Housing Box February 27, 2018
- 3 -
Packing List
• Housing Box
• Supporting Tube
• Screw Anchor x 4
• M5 Screw (35 mm) x 4
• Short Screw x 2
• M5 Plain Washer (7 mm) x 4
• M5 Plain Washer (16 mm) x 2
• Hex Key
• Silica Gel Bag
• Sticker ( for Silica Gel Bag)
• M4 Screw (8 mm) x 4
• M4 Screw (5 mm) x 4
• Black Plate x 2
• Plastic Black Plate
