GV-GPH2800

GV-GPH2800 April 15, 2024  - 1 -    GV-GPH2800 AI 2MP H.265 Super Low Lux WDR Pro IP Pinhole Camera          • AI deep learning: AI Perimeter Protection & Classification (Human,  Vehicle)  • 1/2.8" progressive scan CMOS sensor  • Minimum illumination at 0.05 lux  • Triple streams from H.265, H.264 and MJPEG  • Up to 30 fps at 1920 x 1080  • Day and night function (electronic)  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for  local storage  • Two-way audio capable  • Eight sensor inputs and four alarm outputs  • DC 12V / PoE (IEEE 802.3af)  • Wide Dynamic Range Pro (WDR Pro)  • Defog  • 3D noise reduction  • Motion detection  • AI analytics (Object Abandoned / Missing, Line Crossing, Region  Entrance, Region Exiting, Region Intrusion, Target Counting, Face  Detection, Heat Map)  • Privacy mask  • Text overlay  • IP address filtering  • 12 languages supported  • ONVIF (Profile G, S, T) conformant      Introduction  GV-GPH2800 pinhole camera offers an option for clandestine surveillance. The compact camera lens can be installed in surveillance  sites with limited space such as behind the panel of ATM machines. ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-GPH2800 April 15, 2024
- 1 -

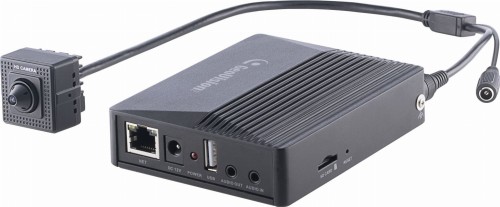

GV-GPH2800 AI 2MP H.265 Super Low Lux WDR Pro IP Pinhole Camera




• AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
• 1/2.8" progressive scan CMOS sensor
• Minimum illumination at 0.05 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 1920 x 1080
• Day and night function (electronic)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for
local storage
• Two-way audio capable
• Eight sensor inputs and four alarm outputs
• DC 12V / PoE (IEEE 802.3af)
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• Motion detection
• AI analytics (Object Abandoned / Missing, Line Crossing, Region
Entrance, Region Exiting, Region Intrusion, Target Counting, Face
Detection, Heat Map)
• Privacy mask
• Text overlay
• IP address filtering
• 12 languages supported
• ONVIF (Profile G, S, T) conformant


Introduction
GV-GPH2800 pinhole camera offers an option for clandestine surveillance. The compact camera lens can be installed in surveillance
sites with limited space such as behind the panel of ATM machines. The camera is also ideal for locations where discreet surveillance
is desirable, such as at banks, hotels, museums, stores, and offices. The camera is equipped with 1/2.8" progressive scan super low lux
CMOS, with a day and night electronic lens to provide a clear view anytime of a day.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Deep Learning Function

Face Detection


AI Perimeter Protection People Counting
(Intrusion, Crossing Line
Entering Area, Leaving Area)





GV-GPH2800 April 15, 2024
- 2 -
Dimensions
⚫ Main Body


⚫ Camera Lens



Specifications
Camera
Image Sensor 1/2.8" progressive scan CMOS
Picture Elements 1920 (H) x 1080 (V)
Minimum
Illumination
Color
0.05 Lux (F2.2, AGC ON)
B/W
Gain Control Automatic
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 2 MP
Day/Night Yes (Electronic)
Iris Fixed
Focal Length 2.8 mm
Maximum Aperture F/2.2
Mount M12
Image Format 1/2.8"
Horizontal FOV 104°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed



GV-GPH2800 April 15, 2024
- 3 -

DORI Detect Observe Recognize Identify
Lens 2.8 mm 38 m (124.6 ft) 15 m (49.2 ft) 8 m (26.2 ft) 4 m (13.1 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams
Video Resolution
Main Stream 1920 x 1080 (Default), 1280 x 720, 704 x 480
Sub Stream 1280 x 720 (Default), 704 x 480, 352 x 240
Third Stream 704 x 480 (Default), 480 x 240, 352 x 240
Frame Rate
- 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 704 x 480, 30 fps at 352 x 240, 30
fps at 480 x 240 (60 Hz)
- 25 fps at 1920 x 1080, 25 fps at 1280 x 720, 25 fps at 704 x 576, 25 fps at 352 x 288, 25
fps at 480 x 240 (50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics
Motion Detection, Video Exception Detection (Scene Change, Video Blur and Abnormal
Color Detection), Object Abandoned/Missing Detection
Smart Alarm
Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable
Disconnection
Heat Map On / Off
Image Setting
Brightness, Contrast, Saturation, Hue, Sharpness, Image Orientation (Flip, Mirror, 0°, 90°,
180°, 270° - including Corridor format), WDR, Defog, NR
Audio Compression G.711
Audio Support Two-way audio capable (external speaker and microphone required)
Digital I/O
Input 8 inputs, dry contact, NO / NC
Output 4 relay outputs (24 V DC / 1A 125 V AC)
Network
Interface 100 Mbps Ethernet
Ethernet Protocol
UDP, IPv4, IPv6, DHCP, NTP, R TSP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP,
HTTPS, HTTP POST, QoS, ONVIF
Deep Learning Function
AI Perimeter Protection
-Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat
Map: Human & Vehicle classification
-Face Detection
Mechanical
Connectors
Power
Main Body
Input: PoE (IEEE 802.3af) / DC 12 V;
Output: DC 12 V, 0.5 A (Max. 5.5 W)
Camera DC 12 V, 0.5 ~ 1 A (external power supply required)
Ethernet RJ-45
Audio
1 In (stereo phone jack, 3.5 mm / 0.14’’)
1 Out (stereo phone jack, 3.5 mm / 0.14’’)
Video Input BNC connector
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10), max. 256 GB
*UHS-II card type is not supported.
General
Environment Temperature -30 °C ~60 °C (23 °F ~ 122 °F)
Humidity 0% to 95% (no condensation)
Power Source PoE (IEEE 802.3af) / DC 12 V
Max. Power Consumption 5.5 W
Dimension
Main Body 108.5 x 87.8 x 28 mm (4.27" x 3.46" x 1.10")
Camera 31.6 x 30.4 x 30.4 mm (1.24" x 1.20" x 1.20")
Weight (with main body mount) 323.8 g (0.71 lb)
Certification CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image Snapshot,
Two‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark



GV-GPH2800 April 15, 2024
- 4 -


Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese
Software Applications
Software Supported
GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager (Windows
Version) V2.2.7 or later, GV-Edge Recording Manager (Mac Version) V1.3.0 or later,
GV-Control Center V4.1.1 or later, GV-Recording Server V2.1.0 or later
Smart Device Access GV-Eye for iOS / Android (V3.1.0 or later)
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari)
Note:
1. The product requires a BNC cable, which is not included in the packaging. Please prepare one for use.
2. Specifications are subject to change without notice.

Packing List
1. Pinhole Camera
2. Main Body Mount
3. Analog Mount
4. Screw Kit
5. Drill Template Paster
6. Download Guide

Accessories
Model No. Details
GV-PA191

GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to
the IP device through a single Ethernet cable.

GV-PA301

GV-PA301 is a Gigabit Power over Ethernet (PoE) adapter.
GV-PoE Switch The GV-PoE Switch is designed to provide power along with network connection
for IP devices. The GV-PoE Switch is available in various models with different
numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
