GV-GEBF4911

GV-GEBF4911  - 1 -  GV-GEBF4911 Cloud AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro  Full Color Warm LED IR Eyeball Dome IP Camera    * Direct ‐ to‐Cloud  * AI deep learning: AI Perimeter Protection & Classification (Human,  Vehicle)  * 1/3" progressive scan CMOS sensor  *Triple streams from H.265, H.264 or MJPEG  * Min. illumination at 0.02 lux  * Up to 30 fps at 2592 x 1520  * Smart Warm LED distance up to 40 m (130 ft )  * Intelligent IR  * IR distance up to 40 m (130 ft)  * Wide Dynamic Range ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-GEBF4911
- 1 -

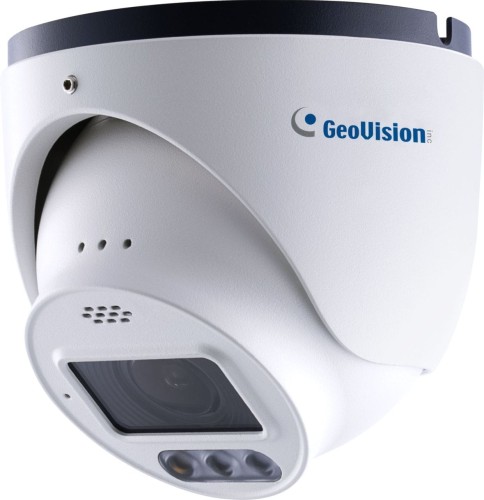

GV-GEBF4911 Cloud AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro
Full Color Warm LED IR Eyeball Dome IP Camera

* Direct ‐ to‐Cloud
* AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
* 1/3" progressive scan CMOS sensor
*Triple streams from H.265, H.264 or MJPEG
* Min. illumination at 0.02 lux
* Up to 30 fps at 2592 x 1520
* Smart Warm LED distance up to 40 m (130 ft )
* Intelligent IR
* IR distance up to 40 m (130 ft)
* Wide Dynamic Range Pro (WDR Pro)
*Built ‐ in microphone and speaker
*Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I) for local storage
* 3 ‐ axis mechanism (p an / tilt / rotate)
*Ingress protection (IP66)
*Vandal resistance (IK10 for metal casing)
* DC 12V / PoE (IEEE 802.3af)
* Defog
* 3D noise reduction
* GV ‐Center V2 connection
* AI analytics (Line Crossing, Region Entrance, Region Exiting, Target
Counting, Region Intrusion, Face Detection, Video Metadata, Heat Map)
*Active Deterrence: Alarm sound and LED lights triggered upon AI events
* Smart lighting switch between IR LED (for motion detection) and Warm
LED (for people detection)
* Motion detection
*Text overlay
*Privacy mask
* 12 languages supported
* ONVIF (Profile G, S, T) conformant
Introduction
GV ‐GEBF4911 is an outdoor eyeball dome IP camera equipped with smart warm LEDs for full color surveillance during nighttime. The
camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. GV ‐GEBF4911 adheres to IK10 and IP66 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. When
integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback
and more. By connecting the camera to the cloud ‐based data center and video surveillance solution, GV ‐Cloud VMS, thousands of
on ‐site videos, alarm devices, and AI events can be monitored and managed from a single platform.


GV-GEBF4911
- 2 -
Deep Learning Function

Face Detection AI Perimeter Protection
( Region Intrusion, Line Crossing,
Region Entrance, Region Exiting )
People Counting


Dimensions



Specifications
Camera
Image Sensor 1/3" progressive scan CMOS

Picture Elements 2592 (H) x 1520 (V)

Minimum
Illumination
Color 0.02 Lux (F1.4, AGC ON)

Shutter Speed Automatic / Manual (1/3 ~ 1/100000 sec)

White Balance Automatic, Manual

Gain Control Automatic, Manual

S/N Ratio 50 dB

WDR WDR Pro

Dynamic Range 120 dB

Lens

Megapixel 4MP

Day / Night Yes (with removeable IR ‐cut filter)

Lens Type Motorized

Focal Length 2.8 ‐ 12 mm

Maximum Aperture F/1.4

Mount Ø 14

Horizontal FOV 96° ‐ 32.33°

Focus Auto / Manual

Zoom
4.3x
Operation
Iris DC

Active Deterrence LED 1 red and blue LED


GV-GEBF4911
- 3 -

Quantity 1 IR LED
IR LED
Max. IR Distance 40 m (130 ft)
LED Quantity 1 Warm LED Smart
Illumination
Max. LED Distance 40 m (130 ft)
DORI Detect Observe Recognize Identify

(W) 2.8 – 12 mm 60.0 m (196.8 ft) 24.0 m (78.7 ft) 12.0 m (39.3 ft) 6.0 m (19.6 ft)

Lens
(T) 2.8 – 12 mm 175.7 m (576.4 ft) 70.2 m (230.3 ft) 35.1 m (115.1 ft) 17.5 m (57.4 ft)

Operation

Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Frame Rate
30 fps at 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 704 x 480,
640 x 480, 352 x 240, 480 x 240 (60 Hz)
25 fps at 2592 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 72 0, 704 x 567,
640 x 480, 352 x 288, 480 x 240 (50 Hz)
*The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).
Video Analytics
Motion Detection, Video Exception Detection (Scene Change, Video Blur and
Abnormal Color Detection), Object Abandoned/Missing Detection
Image Setting
Brightness, Contrast, Saturation, Sharpness, Antiflicker, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270° ‐including Corridor format)
Audio Compression G.711
Audio Support Two ‐way Audio
Input 1 input, dry contact, NO/NC
Digital I/O
Output 1 relay output (1A 30V DC / 0.3A 125V AC)
Video Resolution
Main Stream 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720 (Default), 704 x 480, 640 x 480, 352 x 240
Third Stream (Closed by Default) 704 x 480, 640 x 480, 352 x 240, 480 x 240
Network
Interface 10/100 Ethernet

Protocol
UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP,
RTMP, HTTP, 802.1x, UPnP, HTTPS, QoS, ONVIF (Profile G, S, T), API

Deep Learning Function

AI Analytics
- Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting,
Heat Map, Video Metadata: Human & Vehicle classification
- Face Detection
* A maximum of 1 smart detection function is suggested at a time to ensure
comprehensive detection results and the optimized performance by the camera.
*Once connected to GV ‐ Clo ud VMS / GV ‐Center V2, up to 1 smart detection function
is supported.

Mechanical

Pan 0° ~ 360°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC 12V, PoE (IEEE 802.3af)

Ethernet RJ ‐ 45

Audio
1 In (built ‐ in speaker and microphone, or external speaker and microphone with
power supply), 1 Out (stereo phone jack, 3.5 mm / 0.14”)
*The Audio In port only supports microphones with power supply

Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

General

Operation Temperature ‐30~ 60°C ( ‐ 22 ~ 140°F)

Humidity 0% ~ 95% (no condensation)

Power Source DC 12V, PoE (IEEE802.3af)


GV-GEBF4911
- 4 -
Max. Power Consumption 12W

Dimensions Ø 111.6 x 99.3 mm (Ø 4.39” x 3.91”)

Weight 0.64 kg (1.41 lb)

Ingress Protection IP66

Vandal Resistance IK10 for metal casing

Certification CE, FCC, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image
Snapshot, Two ‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent
Mark

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese

Software Applications

Software Supported
GV ‐ VMS (V17.4.7 or later, V18.3.2 or later), GV ‐Edge Recording Manager (V2.2.5 or
later), GV ‐Control Center (V4.1.1 or later), GV ‐Recording Server (V2.1.0 or later),
GV ‐Cloud VMS, GV ‐Center V2 (V18.3.0A or later)

Smart Device Access GV ‐ Eye for iOS and Android (V3.0.2 or later)

Live Viewing Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App


Note:
1. When connecting to GV ‐Cloud VMS, avoid connecting to other GV ‐Software at the same time.
2. Industrial ‐grade microSD cards are recommended to avoid event recordings writing failure.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐GEBF4911 Eyeball Dome
2. Waterproof Rubber Set
3. Screw kit
4. Hex Key
5. Drill Template Paster
6. Download Guide

Accessories

Model No. Name Details

GV ‐Mount506 Junction Box


Dimensions: 139.3 x 171.6 x 50 mm (5.48” x
2.81” x 1.97”)
Weight: 0.512 kg (1.13 lb)

GV ‐Mount211 ‐ 4 Wall Mount Bracket


Dimensions: 129.8 x 154.9 x 74.4 mm (5.11" x
6.1" x 2.93")
Weight: 0.527 kg (1.16 lb)

GV ‐Mount211 ‐ 6
(must be used with
Mount506)
Wall Mount Bracket

Dimensions: 199 x 139.3 x 140.9 mm (7.83” x
5.48” x 5.55”)
Weight: 0.56 kg (1.23 lb)

GV ‐PA191 Power over Ethernet
(PoE) Adapter


The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.


GV-GEBF4911
- 5 -
GV ‐PA301 Gigabit PoE Adapter


GV ‐PA301 is a Gigabit Power over Ethernet (PoE)
adapter.

GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various models
with different numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
