GV-GEB4900

Availability: 101-500

Price: €235.15 235.15

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 84-GEB4900-0010

ask about product or pricing

Description

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-GEB4900 November 17, 2023
- 1 -

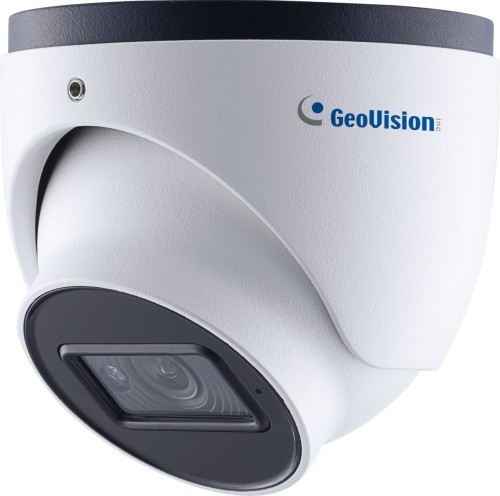

GV-GEB4900 Cloud AI 4MP H.265 Super Low Lux WDR Pro IR Eyeball
Dome IP Camera

• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
• 1/3" progressive scan CMOS sensor
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2592 x 1520
• Intelligent IR
• IR distance up to 30 m (100 ft)
• Day and Night function (with removable IR-cut filter)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• Two-way audio capable
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• GV-Center V2 connection
• AI analytics (Line Crossing, Region Entrance, Region Exiting, Region
Intrusion, Target Counting, Heat Map, Loitering Detection, Illegal
Parking Detection, Face Detection, Video Metadata)
• Motion detection
• Text overlay
• Privacy mask
• 19 languages supported
• ONVIF (Profile G, S, T, M) conformant

Introduction
GV-GEB4900 is an outdoor, network camera equipped with an automatic IR‐cut filter and IR LEDs for day and night surveillance. The
camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more. By
connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of on-site videos,
alarm devices, and AI events can be monitored and managed from a single platform.

GV-GEB4900 November 17, 2023
- 2 -
Deep Learning Function

Face Detection AI Perimeter Protection
(Region Intrusion, Line Crossing,
Region Entrance, Region Exiting)
People Counting

Dimensions

Specifications
Camera
Image Sensor 1/3" progressive scan CMOS
Picture Elements 2592 (H) x 1520 (V)
Minimum
Illumination
Color 0.005 Lux (F1.6, AGC ON)
IR On 0 Lux
Shutter Speed Automatic / Manual (1/3 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 50 dB
WDR WDR Pro
Dynamic Range 120 dB
Lens
Megapixel 4MP
Day / Night Yes (with removable IR-cut filter)
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 95.3°

GV-GEB4900 November 17, 2023
- 3 -
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 1 LED
Max. IR Distance 30 m (100 ft)
DORI Detect Observe Recognize Identify
Lens 2.8 mm 60.6 m (198.8 ft) 24.2 m (79.3 ft) 12.1 m (39.6 ft) 6.0 m (19.6 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Video Resolution
Main Stream 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080
Sub Stream
1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x
240
Third Stream 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 x 240
Frame Rate
30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x
480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz)
25 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x
576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz)
*The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).
Video Analytics Motion Detection, Object Abandoned/Missing Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable
Disconnected, Scene Change Detection, Video Blur Detection, Video Cast Detection,
Audio Exception
Image Setting
ROI, Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction,
Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format)
Dual Redundant Images Yes (for failsafe firmware upgrade)
Audio Compression G.711
Audio Support Two-way audio (external speaker required)
Deep Learning Function
AI Analytics
Face Event: Face Detection
Smart Event:
- Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting,
Heat Map, Video Metadata: Human & Vehicle classification
- Loitering Detection, Illegal Parking Detection
*A maximum of 2 smart detection functions are suggested at a time to ensure
comprehensive detection results and the optimized performance by the camera.
*Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection
functions are supported.
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M),
PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 360°
Tilt 0° ~ 75°
Rotate 0° ~ 360°
Connectors
Power DC Jack (DC 12V, 1 A) / PoE (IEEE 802.3af)
Ethernet RJ-45
Audio
1 In (built-in microphone, or external speaker and microphone with power supply),
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10)
*UHS-II card type is not supported.
General
Operation Temperature -30~ 60°C (-22 ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source DC 12V / PoE (IEEE802.3af)
Max. Power Consumption 7 W
Dimensions Ø 94.6 x 82.8 mm (Ø 3.72” x 3.26”)

GV-GEB4900 November 17, 2023
- 4 -
Weight 0.46 kg (1.01 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, RoHS
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image
Snapshot, Two‐way Audio Capable, Digital Zoom, Text Overlay, Image Masking,
Intelligent Mark
Language
Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish,
Romanian, Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese,
Korean, Chinese Traditional
Software Applications
Software Supported
GV-VMS (V17.4.6 / V18.3.2 or later), GV-Edge Recording Manager (V2.2.5 or later),
GV-Control Center (V4.1.0 or later), GV-Recording Server (V2.3.0, coming soon)
Smart Device Access GV-Eye for iOS and Android (V3.1.1 or later)
Live Viewing Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile APP
Note:
1. When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
2. Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
3. All specifications are subject to change without notice.

Packing List
1. GV-GEB4900 Eyeball Dome
2. Waterproof Rubber Set
3. Screw kit
4. Drill Template Paster
5. Download Guide

Accessories

Model No. Name Details
GV-Mount211-4 Wall Mount Bracket

Dimensions: 129.8 x 154.9 x 74.4 mm
(5.11" x 6.1" x 2.93")
Weight: 0.527 kg (1.16 lb)
GV-Mount211-8 (must be
used with GV-Mount506-1)
Wall Mount Bracket

Dimensions: 188.4 x 121 x 137.3 mm
(7.41" x 4.76" x 5.4")
Weight: 0.520 kg (1.15 lb)
GV-Mount506-1 Junction Box

Dimensions: 117.9 x 47 mm (4.64" x 1.85")
Weight: 0.380 kg (0.84 lb)
GV-PA191 Power over Ethernet
(PoE) Adapter

The GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter

GV-PA301 is a Gigabit Power over Ethernet (PoE)
adapter.

GV-GEB4900 November 17, 2023
- 5 -

GV-POE Switch The GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
