GV-GDRN4800 June 8, 2026
- 1 -

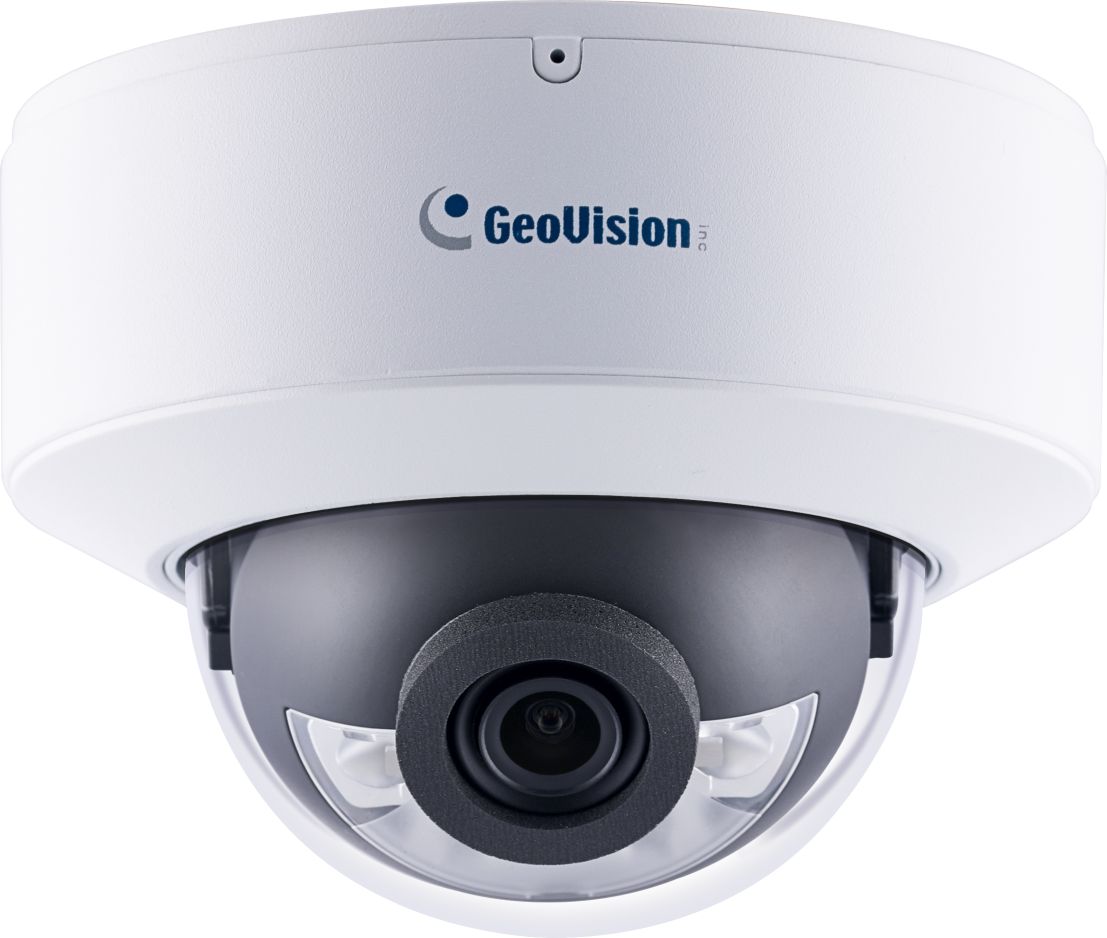

GV-GDRN4800 AI 4MP H.265 Full Color AI-ISP White LED WDR Pro Mini Fixed
Rugged IP Dome





• AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
• 1/1.79" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.0001 lux
• Up to 30 fps at 2688 x 1520
• AI-ISP for superior noise reduction and vivid color images, day and night
• Smart white LED distance up to 20 m (65 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Built-in microphone
• Built-in microSD card slot (SD / SDHC / SDXC) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Defog
• 3D noise reduction
• Smart settings (Line Crossing, Region Entrance, Region Exiting, Target
Counting, Region Intrusion, Face Detection)
• Motion detection
• Text overlay
• Privacy mask
• 20 languages supported
• ONVIF (Profile G, S, T, M) conformant

Introduction
GV-GDRN4800 is a mini fixed rugged IP dome camera equipped with AI-ISP technology and smart white LEDs for full color
surveillance, even in challenging lighting conditions. The camera combines H.265 compression, PoE support, and rugged IP67/IK10
protection for reliable operation in demanding environments.
Empowered by deep learning algorithms, its AI technology distinguishes humans and vehicles from other moving objects. When
integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, event playback,
and more.
The AI-ISP (Artificial Intelligence Image Signal Processor) enhances image quality in low-light scenes by delivering more detail,
reducing noise, and minimizing smearing issues. Optimized for environments with at least minimal ambient light—such as moonlit
outdoor areas—the camera delivers superior results in outdoor installations.

Models
Model Iris Focal Length (mm) Horizontal FOV Maximum Aperture Image Format
GV-GDRN4800-2F
Fixed
2.8 mm 112°
F/1.0 1/1.79”
GV-GDRN4800-3F 3.6 mm 96°



GV-GDRN4800 June 8, 2026
- 2 -
Deep Learning Function
Face Detection AI Perimeter Protection People Counting
(Region Intrusion, Line Crossing,
Region Entrance, Region Exiting)





Specifications
Camera
Image Sensor 1/1.79" progressive scan CMOS
Picture Elements 2688 (H) x 1520 (V)
Minimum
Illumination
Color 0.0001 Lux (F1.0, AGC ON)
B/W N/A
LED On 0 Lux
Shutter Speed Automatic / Manual (1/3 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 50 dB
WDR Pro Yes (supported in the next version)
Dynamic Range 120 dB (supported in the next version)
Lens GV-GDRN4800-2F GV-GDRN4800-3F
Megapixel 4 MP
Day / Night Color
Lens Type Fixed
Focal Length 2.8 mm 3.6 mm
Maximum Aperture F/1.0
Mount M12
FOV
Horizontal 112° 96°
Vertical 61° 51°
Diagonal 132° 112°
Operation
Focus Auto / Manual
Zoom Fixed
Iris Fixed
White LED Quantity 2 white LEDs
Max. White LED Distance 20 m (65 ft)
DORI Detect Observe Recognize Identify
Lens
2.8 mm 52 m (170.6 ft) 21 m (68.8 ft) 10 m (32.8 ft) 5 m (16.4 ft)
3.6 mm 63 m (206.6 ft) 25 m (82.0 ft) 12 m (39.3 ft) 6 m (19.6 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Frame Rate
30 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 480, 640 x 480, 640
x 360, 480 x 240, 352 x 240 (60 Hz)
25 fps at 2688 x 1520, 2560 x 1440, 1920 x 1080, 1280 x 720, 704 x 567, 640 x 480, 640
x 360, 480 x 240, 352 x 288 (50 Hz)

*The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).


GV-GDRN4800 June 8, 2026
- 3 -
Maximum Throughput 80 Mbps
Maximum Streams
*When the total bitrate is within the
maximum throughput
10
Video Analytics
Motion Detection, Video Exception Detection (Abnormal Color Detection, Scene
Change, Video Blur), Object Abandoned/Missing Detection
Smart Alarm Audio Exception, Cable Disconnection, IP Address Conflict, SD Card Error, SD Card Full
Image Setting
Brightness, Contrast, Hue, Saturation, Sharpness, Defog, Antiflicker, 3D Noise
Reduction, Image Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor
format)
Audio Compression G.711
Audio Support One-way audio
Video Resolution
Main Stream 2688 x 1520 (Default), 2560 x 1440, 1920 x 1080
Sub Stream
1280 x 720 (Default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240,
352 x 288
Third Stream
1280 x 720 (Default), 704 x 480, 704 x 567, 640 x 480, 640 x 360, 480 x 240, 352 x 240,
352 x 288
Network
Interface 10/100 Ethernet
Protocol
802.1X authentication (EAP-TLS, EAP-MD5), API, DDNS, DHCP, FTP, HTTP, HTTP POST,
HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP,
SMTP, SNMP, UDP, UPnP
Deep Learning Function
AI Perimeter Protection
Face Event: Face Detection
Smart Event: Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target
Counting (all with Human & Vehicle classification)
*Face events and smart events cannot be enabled at the same time.
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 355°
Tilt 0° ~ 70°
Rotate 0° ~ 180°
Connectors
Power DC Jack
Ethernet RJ-45
Audio
Built-in microphone Yes
External microphone required Yes (Audio jack, 3.5 mm)
Built-in speaker No
External speaker required No
* For devices with microphone or speaker, choose either the built-in or external
option.
* If equipped with an Audio In port, it only supports microphones with power supply.
Digital I/O N/A
Local Storage microSD card slot (SD / SDHC / SDXC), up to 512 GB
General
Operation Temperature -30 ~ 60°C (-22 ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source DC 12V, 1.5A / PoE (IEEE 802.3af)
Max. Power Consumption 7 W
Dimensions Ø 119 x 87.8 mm (Ø 4.7” x 3.46”)
Weight 0.64 kg (1.41 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image
Snapshot, One‐way Audio, Digital Zoom, Text Overlay, Image Masking, Intelligent
Mark


GV-GDRN4800 June 8, 2026
- 4 -
Language
Czech, Dutch, English, French, German, Greek, Hungarian, Italian, Japanese, Korean,
Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Spanish (Latin America),
Traditional Chinese, Turkish, Ukrainian
Applications
Software Supported
GV-VMS (V17.4.8 / V18.3.5 / V20.0.2 + Patch or later), GV-Control Center (V4.3.0 +
Patch or later), GV-Edge Recording Manager for Windows (V2.3.1.0 + Patch or later),
GV-Recording Server (V2.1.1 + Patch or later), GV-IP Device Utility (V9.0.5 or later)
Smart Device Access GV-Eye for iOS and Android (V3.5.1 or later)
Live Viewing Web Browser (Chrome, Edge, Firefox, Safari), Mobile App
Note:
1. The AI-ISP may not perform as expected in completely dark environments. For optimal results, outdoor installation is
recommended.
2. All specifications are subject to change without notice.

Packing List
1. GV-GDRN4800
2. Waterproof Rubber Set
3. Screw kit
4. Drill Template Paster
5. Download Guide

Accessories
Model No. Name Details
GV-Mount117
(must be used with
GV-Mount517)
Pendant Mount


Dimensions: Ø 121 x 191.4 mm
(Ø 4.76 x 7.54 in)
Weight: 0.4 kg (0.88 lb)
GV-Mount211-4 Wall Mount Bracket


Dimensions: 129.5 x 155 x 74.5 mm
(5.10 x 6.10 x 2.93 in)
Weight: 0.53 kg (1.16 lb)
GV-Mount211-8
(must be used with
GV-Mount517)
Wall Mount Bracket


Dimensions: 188.4 x 121 x 137.3 mm
(7.41 x 4.76 x 5.4 in)
Weight: 0.52 kg (1.15 lb)
GV-Mount314
(must be used with
GV-Mount211-8 + GV-Mount517)
Corner Mount Bracket


Dimensions: 215 x 121.4 x 215 mm
(8.46 x 4.78 x 8.46 in)
Weight: 2.05 kg (4.52 lb)
GV-Mount470
(must be used with
GV-Mount211-8 + GV-Mount517)
Pole Mount Bracket


Dimensions: 163.3 x 54.5 x 215 mm
(6.43 x 2.15 x 8.46 in)
Weight: 1.10 kg (2.43 lb)
GV-Mount517 Junction Box


Dimensions: 117.9 x 143.3 x 39 mm
(4.64 x 5.64 x 1.54 in)
Weight: 0.24 kg (0.53 lb)


GV-GDRN4800 June 8, 2026
- 5 -
GV-Mount707
(must be used with
GV-Mount117)
Extension Tube


Dimensions: Ø 37 x 515 mm
(Ø 1.46 x 20.28 in)
Weight: 0.8 kg (1.76 lb)
GV-Mount927
(for standard US single and double
gang boxes only)
Power Box Mount
Bracket


Dimensions: Ø 145 x 11.2 mm
(Ø 5.71 x 0.44 in)
Weight: 0.2 kg (0.44 lb)
GV-PA191 PoE Adapter


GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the
IP device through a single Ethernet cable.
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over Ethernet
(PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in
various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas
supported.


Mounting Type
Wall Mount Bracket Junction Box Junction Box Wall Mount Bracket
GV-Mount211-4 GV-Mount517 GV-Mount517 GV-Mount211-8








GV-GDRN4800 June 8, 2026
- 6 -

Junction Box Wall Mount Bracket Corner Mount Bracket
GV-Mount517 GV-Mount211-8 GV-Mount314



Junction Box Wall Mount Bracket Pole Mount Bracket
GV-Mount517 GV-Mount211-8 GV-Mount470



Junction Box Mount Pendant Mount
GV-Mount517 GV-Mount117





GV-GDRN4800 June 8, 2026
- 7 -
Dimensions
