GV-GDR4900

Availability: 101-500

Price: €276.03 276.03

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 84-GDR4900-0010

ask about product or pricing

Description

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-GDR4900 March 15, 2024
- 1 -

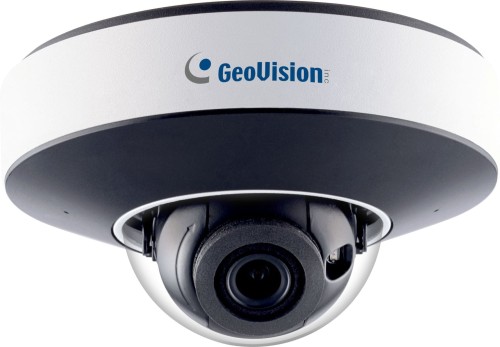

GV-GDR4900 Cloud AI 4MP H.265 Super Low Lux WDR Pro IR Mini
Fixed Rugged IP Dome

• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/3” progressive scan CMOS
• Min. illumination at 0.005 lux
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2592 x 1520
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and Night function (with removable IR-cut filter)
• Vandal resistance (IK10 for metal casing)
• Ingress protection (IP67)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
for local storage
• Two-way audio capable
• Built in microphone
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• 3D noise reduction
• GV-Center V2 connection
• AI analytics (Line Crossing, Region Entrance, Region Exiting,
Region Intrusion, Target Counting, Heat Map, Loitering
Detection, Illegal Parking Detection, Face Detection, Video
Metadata)
• Motion detection
• Text overlay
• Privacy mask
• 19 languages supported
• ONVIF (Profile G, S, T, M) conformant

Introduction
GV-GDR4900 is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera supports H.265
video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera
adheres to IK10 and IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more. By
connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of on-site videos,
alarm devices, and AI events can be monitored and managed from a single platform.

GV-GDR4900 March 15, 2024
- 2 -
Deep Learning Function

Face Detection AI Perimeter Protection
(Region Intrusion, Line Crossing,
Region Entrance, Region Exiting)
People Counting

Dimensions

Specifications
Camera
Image Sensor 1/3” progressive scan CMOS
Picture Elements 2592(H) x 1520 (V)
Minimum
Illumination
Color 0.005 Lux (F1.6, AGC ON)
IR On 0 Lux
Shutter Speed Automatic, Manual 1/3 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 50 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 4 MP
Day/Night Yes (with removable IR-cut filter)
Focal Length 2.8 mm
Lens Type Fixed
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 95.3°

GV-GDR4900 March 15, 2024
- 3 -
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 20 m (65 ft)
DORI Detect Observe Recognize Identify
Lens 2.8 mm 60.6 m (198.8 ft) 24.2 m (79.3 ft) 12.1 m (39.6 ft) 6.0 m (19.6 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams
Video
Resolution
Main Stream 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080
Sub Stream 1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 240
Third Stream 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 x 240
Frame Rate
30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480
/ 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz)
25 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576
/ 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz)
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics Motion Detection, Object Abandoned/Missing Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnected,
Scene Change Detection, Video Blur Detection, Video Cast Detection, Audio Exception
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format).
Dual Redundant Images Yes (for failsafe firmware upgrade)
Audio Compression G.711
Audio Support Two‐way audio (external speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Deep Learning Function
AI Analytics
Face Event: Face Detection
Smart Event:
- Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting,
Heat Map, Video Metadata: Human & Vehicle classification
- Loitering Detection, Illegal Parking Detection
*A maximum of 2 smart detection functions are suggested at a time to ensure
comprehensive detection results and the optimized performance by the camera.
*Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are
supported.
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S,
T, M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Mechanical
Camera Angle
Adjustment
Pan 0 ~ 360°
Tilt 0 ~ 75°
Rotate 0 ~ 350°
Connectors
Power DC Jack (DC 12 V, 1 A) / PoE (IEEE 802.3af)
Ethernet RJ-45
Audio
1 In (built-in microphone, external speaker required with power supply),
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
*UHS-II card type is not supported.
General
Operating Temperature -30 ~ 60°C (-22 ~ 140°F)
Humidity 0 ~ 95% (no condensation)

GV-GDR4900 March 15, 2024
- 4 -
Power Source DC 12 V / PoE (IEEE802.3af)
Max. Power Consumption 5.5 W
Dimensions Ø 110.4 x 62 mm (Ø 4.3 x 2.4”)
Weight 0.42 kg (0.93 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image
Snapshot, Two‐way Audio Capable, Digital Zoom, Text Overlay, Image Masking, Intelligent
Mark
Language
Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian,
Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Chinese
Traditional
Software Applications
Software Supported
GV-VMS (V17.4.6 / V18.3.2 or later), GV-Edge Recording Manager (V2.2.5 or later),
GV-Control Center (V4.1.0 or later), GV-Recording Server (V2.3.0, coming soon)
Smart Device Access GV-Eye for iOS and Android (V3.1.1 or later)
Live Viewing Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile APP
Note:
1. When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
2. Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
3. All specifications are subject to change without notice.

Packing List
1. GV‐GDR4900 Mini Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Hex Key
6. Download Guide

Accessories

Model No. Name Details
GV-Mount211-4 Wall Mount Bracket

Dimensions: 129.8 x 154.9 x 74.4 mm
(5.11" x 6.1" x 2.93")
Weight: 0.527 kg (1.16 lb)
GV-Mount211-9
(must be used with
GV-Mount509)
Wall Mount Bracket

Dimensions: 148 x 121 mm
(5.83" x 4.76")
Weight: 0.350 kg (0.77 lb)
GV-Mount509 Junction Box

Dimensions: 112 x 40 mm
(4.72" x 1.57")
Weight: 0.231 kg (0.51 lb)
GV-PA191

Power over Ethernet
(PoE) Adapter

GV-PA191 is a Power over Ethernet
(PoE) adapter designed to provide
power to the IP device through a single
Ethernet cable.

GV-GDR4900 March 15, 2024
- 5 -
GV-PA301 Gigabit PoE Adapter

GV-PA301 is a Gigabit Power over
Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection for IP
devices. The GV-POE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
