GV-GBL4911

GV-GBL4911 May 17, 2024  - 1 -  GV-GBL4911 Cloud AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro  IR Bullet IP Camera          * Direct ‐ to ‐Cloud  * AI deep learning: AI Perimeter Protection & Classification  (Human, Vehicle)  * 1/3” progressive scan CMOS  * Min. illumination at 0.005 lux  * Triple streams from H.265, H.264 and MJPEG  * Up to 30 fps at 2592 x 1520  * Intelligent IR  * IR distance up to ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-GBL4911 May 17, 2024
- 1 -

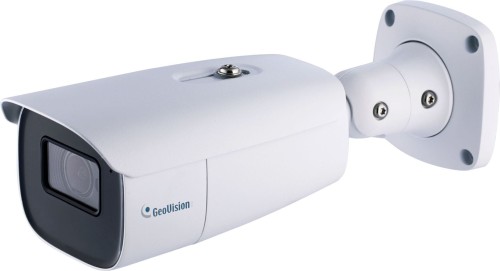

GV-GBL4911 Cloud AI 4MP H.265 4.3x Zoom Super Low Lux WDR Pro
IR Bullet IP Camera




* Direct ‐ to ‐Cloud
* AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
* 1/3” progressive scan CMOS
* Min. illumination at 0.005 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 30 fps at 2592 x 1520
* Intelligent IR
* IR distance up to 70 m (23 0 ft)
* Day and Night function (with removable IR ‐cut filter)
* Ingress protection (IP67)
* Vandal resistance (IK10 for metal casing)
* DC 12V / PoE (IEEE 802.3af)
* Built ‐ in micro SD card slot (SDHC / SDXC / UHS ‐ I, Class 10) for
local storage
* Two ‐ way audio capable
* Built in microphone
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* GV ‐Center V2 connection
* AI analytics (Line Crossing, Region Entrance, Region Exiting,
Region Intrusion, Target Counting, Heat Map Loitering
Detection, Illegal Parking Detection, Face Detection, Video
Metadata)
* Motion detection
* Te xt overlay
* Privacy mask
* 19 languages supported
* ONVIF (Profile G, S, T, M) conformant

Introduction
GV ‐GBL4911 is an outdoor bullet IP camera equipped with automatic IR ‐cut filter and IR LEDs for day and night surveillance. The
camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidth. GV ‐GBL4911 adheres to IP67 and IK10 standards, and can be pow ered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. When
integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback
and more. By connecting the camera to the cloud ‐based data center and vi deo surveillance solution, GV ‐Cloud VMS, thousands of
on ‐site videos, alarm devices, and AI events can be monitored and managed from a single platform.


GV-GBL4911 May 17, 2024
- 2 -
Deep Learning Function

Face Detection AI Perimeter Protection
( Region Intrusion, Line Crossing,
Region Entrance, Region Exiting )
People Counting


Dimensions



Specifications
Camera
Image Sensor 1/3” progressive scan CMOS
Picture Elements 2592 (H) x 1520 (V)
Color 0.005 Lux (F1.3, AGC ON)
Minimum
Illumination
IR On 0 Lux
Shutter Speed Automatic, Manual (1/3 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 50 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 4 MP
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 2.8 ‐ 12 mm
Lens Type Motorized
Maximum Aperture F/1.3
Mount Ø14
Horizontal FOV 100° ‐ 28.9°
Focus Auto / Manual
Zoom 4.3x
Operation
Iris DC
IR LED Quantity 4 IR LEDs


GV-GBL4911 May 17, 2024
- 3 -
Max. IR Distance 70 m (230 ft)
DORI Detect Observe
Recognize Identify
2.8 ‐ 12 mm (W) 58.9 m (193.2 ft) 23.5 m (77.0 ft) 11.7 m (38.3 ft) 5.8 m (19.0 ft)
Lens
2.8 ‐ 12 mm (T) 205.9 m (675.5 ft) 82.4 m (270.3 ft) 41.2 m (135.1 ft) 20.6 m (67.5 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams
Main Stream 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080
Sub Stream
1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 288,
352 x 240
Video
Resolution
Third Stream 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 x 288, 352 x 240
Frame Rate
30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 /
640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz)
25 fps at 2592 x 1520 / 2 560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 /
640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz)
* The frame rate and performance may vary depending on the number of c onnections and
data bitrates (different scenes).
Video Analytics Motion Detection, Object Abandoned / Missing Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection,
Scene Change Detection, Video Blur Detection, Video Cast Detection, Audio Exception
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270° ‐including Corridor format).
Dual Redundant Images Yes (for failsafe firmware upgrade)
Audio Compression G.711
Audio Support Two ‐way audio (external speaker required)
Input 1 Input, dry contact, NO / NC
Digital I/O
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Deep Learning Function
AI Analytics
Face Event: Face Detection
Smart Event:
- Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat
Map, Video Metadata: Human & Vehicle classification
- Loitering Detection, Illegal Parking Detection
*A maximum of 2 smart detection functions are suggested at a time to ensure
comprehensive detection results and the optim ized performance by the camera.
*Once connected to GV ‐Cloud VMS / GV ‐Center V2, up to 2 smart detection functions are
supported.
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S, T,
M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Mechanical
Pan 0 ~ 360°
Tilt 0 ~ 90°
Camera Angle
Adjustment
Rotate 0 ~ 360°
Power DC jack (DC 12 V, 1.25 A), PoE
Ethernet RJ ‐ 45
Audio
1 In (built ‐ in microphone, external speaker required with power supply)
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Video Output
CVBS output (BNC connector x 1)
Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)
Connectors
Local Storage
Micro SD card slot (SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.
General
Operating Temperature ‐30~ 60°C ( ‐ 22 ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 12.5 W
Dimensions 272.3 x 94.9 x 88.9 mm (10.72 x 3.73 x 3.5”)


GV-GBL4911 May 17, 2024
- 4 -
Weight 1.04 kg (2.29 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, RoHS, UKCA compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image
Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark
Language
Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian,
Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Chinese
Traditional
Software Applications
Software Supported
GV ‐ VMS (V17.4.7 or later, V18.3.2 or later), GV ‐Edge Recording Manager (V2.2.7 or later),
GV ‐Control Center (V4.2.0 or later), GV ‐Recording Server (V2.1.1 or later), GV ‐Cloud VMS
(V1.1.0 or later), GV ‐Center V2 (V18.4.1 or later)
Smart Device Access GV ‐ Eye for iOS and Android (V3.1.1 or later)
Live Viewing Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App


Note:
1. When connecting to GV ‐Cloud VMS, avoid connecting to other GV ‐Software at the same time.
2. Industrial ‐grade microSD cards are recommended to avoid event recordings writing failure.
3. All specifications are subject to change without notice.

Packing List
1. GV ­GBL4911 Bullet
2. Screw Kit
3. Hex Key
4. Drill Template Paster
5. CVBS & DC IN Cables
6. Download Guide

Accessories
Model No. Name
Details
GV ‐Mount506 Junction Box



Dimensions: 139.3 x 50 mm

(5.48" x 1.97")

Weight: 0.512kg (1.13lb)

GV ‐PA191

PoE Adapter



GV ‐PA191 is a Power over Ethernet

(PoE) adapter designed to provide

power to the IP device through a single

Ethernet cable.

GV ‐PA301 Gigabit PoE Adapter



GV ‐PA301 is a Gigabit Power over

Ethernet (PoE) adapter.

GV ‐ POE Switch
GV ‐POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
