GV-GBL4900
Description
GV-GBL4900 March 18, 2024 - 1 - GV-GBL4900 Cloud AI 4MP H.265 Super Low Lux WDR Pro IR Bullet IP Camera • Direct-to-Cloud • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle) • 1/3” progressive scan CMOS • Triple streams from H.265, H.264 and MJPEG • Min. illumination at 0.005 lux • Up to 30 fps at 2592 x 1520 • Intelligent IR • IR distance up to 50 m (165 ft) • Day and Night function (with removable IR-cut filter) • Ingress protection (IP67) • Vandal resistance (IK10 for meting casing) • DC 12V / PoE (IEEE 802.3af) • Built-in micro SD card slot (SDHC / SDXC / UHS-I, Class 10) for local storage • Two-way audio capable • Built in microphone • Wide Dynamic Range Pro (WDR Pro) • Defog • GV-Center V2 connection • AI analytics (Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat Map, Loitering Detection, Illegal Parking Detection, Face Detection, Video Metadata) • Motion detection • Text overlay • Privacy mask • 19 languages supported • ONVIF (Profile G, S, T, M) conformant Introduction GV-GBL4900 is an outdoor bullet IP cam...
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-GBL4900 March 18, 2024
- 1 -

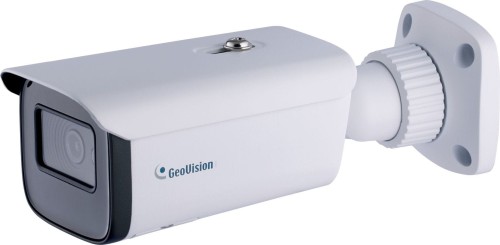

GV-GBL4900 Cloud AI 4MP H.265 Super Low Lux WDR Pro IR Bullet IP
Camera
• Direct-to-Cloud
• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/3” progressive scan CMOS
• Triple streams from H.265, H.264 and MJPEG
• Min. illumination at 0.005 lux
• Up to 30 fps at 2592 x 1520
• Intelligent IR
• IR distance up to 50 m (165 ft)
• Day and Night function (with removable IR-cut filter)
• Ingress protection (IP67)
• Vandal resistance (IK10 for meting casing)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SDHC / SDXC / UHS-I, Class 10) for
local storage
• Two-way audio capable
• Built in microphone
• Wide Dynamic Range Pro (WDR Pro)
• Defog
• GV-Center V2 connection
• AI analytics (Line Crossing, Region Entrance, Region Exiting,
Region Intrusion, Target Counting, Heat Map, Loitering
Detection, Illegal Parking Detection, Face Detection, Video
Metadata)
• Motion detection
• Text overlay
• Privacy mask
• 19 languages supported
• ONVIF (Profile G, S, T, M) conformant
Introduction
GV-GBL4900 is an outdoor bullet IP camera equipped with automatic IR-cut filter and IR LEDs for day and night surveillance. The
camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidth. GV-GBL4900 adheres to IP67 and IK10 standards, and can be powered through PoE.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. When
integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback
and more. By connecting the camera to the cloud-based data center and video surveillance solution, GV-Cloud VMS, thousands of
on-site videos, alarm devices, and AI events can be monitored and managed from a single platform.
GV-GBL4900 March 18, 2024
- 2 -
Deep Learning Function
Face Detection AI Perimeter Protection
(Region Intrusion, Line Crossing,
Region Entrance, Region Exiting)
People Counting
Dimensions
Specifications
Camera
Image Sensor 1/3” progressive scan CMOS
Picture Elements 2592 (H) x 1520 (V)
Minimum
Illumination
Color 0.005Lux (F1.6, AGC ON)
IR On 0 Lux
Shutter Speed Automatic, Manual (1/3 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 50 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 4 MP
Day/Night Yes (with removable IR-cut filter)
Focal Length 2.8 mm
Lens Type Fixed
Maximum Aperture F/1.6
Mount M12
Horizontal FOV 95.3°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 2 IR LEDs
GV-GBL4900 March 18, 2024
- 3 -
Max. IR Distance 50 m (165 ft)
DORI Detect Observe Recognize Identify
Lens 2.8 mm 60.6 m (198.8 ft) 24.8 m (81.3 ft) 12.1 m (39.6 ft) 6.0 m (19.6 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Triple streams
Video
Resolution
Main Stream 2592 x 1520 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080
Sub Stream
1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 288,
352 x 240
Third Stream 1280 x 720 (Default), 704 x 576, 704 x 480, 480 x 240, 352 x 288, 352 x 240
Frame Rate
30 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 480 /
640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz)
25 fps at 2592 x 1520 / 2560 x 1440 / 2304 x 1296 / 1920 x 1080 / 1280 x 720 / 704 x 576 /
640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz)
* The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics Motion Detection, Object Abandoned / Missing Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection,
Scene Change Detection, Video Blur Detection, Video Cast Detection, Audio Exception
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format).
Dual Redundant Images Yes (for failsafe firmware upgrade)
Audio Compression G.711
Audio Support Two‐way audio (external speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Deep Learning Function
AI Analytics
Face Event: Face Detection
Smart Event:
- Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat
Map, Video Metadata: Human & Vehicle classification
- Loitering Detection, Illegal Parking Detection
*A maximum of 2 smart detection functions are suggested at a time to ensure
comprehensive detection results and the optimized performance by the camera.
*Once connected to GV-Cloud VMS / GV-Center V2, up to 2 smart detection functions are
supported.
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPs, IPv4, IPv6, NTP, ONVIF (Profile G, S, T,
M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Mechanical
Camera Angle
Adjustment
Pan 0 ~ 360°
Tilt 0 ~ 90°
Rotate 0 ~ 360°
Connectors
Power DC jack (DC 12 V, 1.25 A), PoE (IEEE802.3af)
Ethernet RJ-45
Audio
1 In (built-in microphone, external speaker required with power supply)
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14”)
Local Storage
Micro SD card slot (SDHC / SDXC / UHS-I, Class 10)
* UHS-II card type is not supported.
General
Operating Temperature -30~ 60°C (-22 ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 10 W
Dimensions 218.1 x 70.4 x 79.5 mm (8.58 x 2.77 x 3.12”)
Weight 0.67 kg (1.48 lb)
Ingress Protection IP67
GV-GBL4900 March 18, 2024
- 4 -
Vandal Resistance IK10 for metal casing
Certification CE, FCC, RoHS, UKCA compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control, Image
Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark
Language
Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian,
Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Chinese
Traditional
Software Applications
Software Supported
GV-VMS (V17.4.7 or later, V18.3.2 or later), GV-Edge Recording Manager (V2.2.7 or later),
GV-Control Center (V4.2.0 or later), GV-Recording Server (V2.1.1 or later), GV-Cloud VMS
(V1.1.0 or later), GV-Center V2 (V18.4.1 or later)
Smart Device Access GV-Eye for iOS and Android (V3.1.1 or later)
Live Viewing Web Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
Note:
1. When connecting to GV-Cloud VMS, avoid connecting to other GV-Software at the same time.
2. Industrial-grade microSD cards are recommended to avoid event recordings writing failure.
3. All specifications are subject to change without notice.
Packing List
1. GV‐GBL4900 Bullet
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
Accessories
Model No. Name Details
GV-Mount507 Junction Box
Dimensions: 96 x 38.8 mm
(3.78" x 1.53")
Weight: 0.135 kg (0.30 lb)
GV-Mount507-1 Junction Box
Dimensions: 111.7 x 55 mm
(4.40" x 2.17")
Weight: 0.332 kg (0.73 lb)
GV-PA191
PoE Adapter
GV-PA191 is a Power over Ethernet
(PoE) adapter designed to provide
power to the IP device through a single
Ethernet cable.
GV-PA301 Gigabit PoE Adapter
GV-PA301 is a Gigabit Power over
Ethernet (PoE) adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection for IP
devices. The GV-POE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
