GV-GBL12811 September 26, 2024
- 1 -

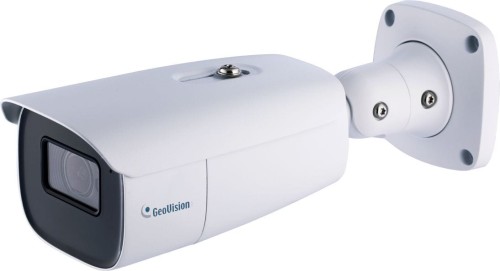

GV-GBL12811 AI 12MP H.265 4.3x Zoom Super Low Lux WDR IR Bullet IP
Camera




• AI deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
• 1/1.7” progressive scan CMOS sensor
• Min. illumination at 0.006 lux
• Five streams from H.265, H.264 and MJPEG
• Up to 30 fps at 4000 x 3000
• Intelligent IR
• IR distance up to 70 m (230 ft)
• Day and Night function (with removable IR-cut filter)
• Two-way audio capable
• Built-in microphone
• Built-in microSD card slot (SDHC / SDXC / UHS-I, Class 10) for
local storage
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Defog
• 3D noise reduction
• AI analytics (Line Crossing, Region Entrance, Region Exiting,
Region Intrusion, Target Counting, Heat Map, Video
Metadata, Loitering Detection, Illegal Parking, Face Detection)
• Motion detection
• Text overlay
• Privacy mask
• 19 languages supported
• ONVIF (Profile G, S, T, M) conformant

Introduction
GV‐GBL12811 is a 12 MP outdoor bullet IP camera, equipped with an automatic IR-cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures
at reduced network bandwidth. GV-GBL12811 adheres to IP67 and IK10 standards and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (GV-VMS), it supports AI perimeter protection, real-time alert, playback, and more.

Deep Learning Function
Face Detection AI Perimeter Protection
(Region Intrusion, Line Crossing,
Region Entrance, Region Exiting)
People Counting






GV-GBL12811 September 26, 2024
- 2 -
Specifications
Camera
Image Sensor 1/1.7” progressive scan CMOS
Picture Elements 4000 (H) x 3000 (V)
Minimum
Illumination
Color 0.006 Lux (F1.4, AGC ON)
IR On 0 Lux
Shutter Speed Automatic, Manual (1/3 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 50 dB
WDR Pro No
Dynamic Range 75 dB
Lens
Megapixel 12 MP
Day/Night Yes (with removable IR-cut filter)
Focal Length 2.8-12 mm
Lens Type Motorized
Maximum Aperture F/1.4
Mount Ø14
Horizontal FOV 96° - 46°
Operation
Focus Auto / Manual
Zoom 4.3x
Iris DC
IR LED Quantity 4 IR LEDs
Max. IR Distance 70 m (230 ft)
DORI Detect Observe Recognize Identify
Lens
2.8-12 mm (W) 86 m (282.1 ft) 34 m (111.5 ft) 17 m (55.7 ft) 9 m (29.5 ft)
2.8-12 mm (T) 190 m (623.3 ft) 76 m (249.3 ft) 38 m (124.6 ft) 19 m (62.3 ft)
Operation
Video Compression H.265, H.265+, H.264, H.264+, MJPEG
Video Streaming Five streams
Video Resolution
Main Stream 4000 x 3000 (Default), 3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080
Sub Stream 1920 x 1080, 1280 x 960 (Default), 1280 x 720, 704 x 576,704 x 480, 640 x 360
Third Stream
1280 x 720 (Default), 704 x 576, 704 x 480, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352
x 240
Fourth Stream 704 x 480 (Default), 704 x 576, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 x 240
Fifth Stream 704 x 480 (Default), 704 x 576, 640 x 480, 640 x 360, 480 x 240, 352 x 288, 352 x 240
Frame Rate
30 fps at 4000 x 3000 / 3840 x 2160 / 3200 x 1800 / 2688 x 1520 / 1920 x 1080 / 1280 x 960
/ 1280 x 720 / 704 x 480 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 240 (60 Hz)
25 fps at 4000 x 3000 / 3840 x 2160 / 3200 x 1800 / 2688 x 1520 / 1920 x 1080 / 1280 x 960
/ 1280 x 720 / 704 x 576 / 640 x 480 / 640 x 360 / 480 x 240 / 352 x 288 (50 Hz)
* The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).
Maximum
Throughput
AI off 64 Mbps
AI on 12 Mbps
Maximum Stream
* When the total bitrate is within
the maximum throughput
10
Video Analytics Motion Detection, Object Abandoned / Missing Detection, Video Exception Detection
Smart Alarm
Motion Detection, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection,
Scene Change Detection, Video Blur Detection, Abnormal Color Detection
Image Setting
Brightness, Contrast, Hue, Saturation, WDR, Sharpness, Defog, 3D Noise Reduction, BLC,
Antiflicker, White Balance, Shutter, Gain, Image Orientation (Flip, Mirror, 0°, 90°, 180°,
270° – including Corridor format).
Audio Compression G.711


GV-GBL12811 September 26, 2024
- 3 -
Audio Support Two‐way audio (external speaker required)
Digital I/O
Input 1 Input, dry contact, NO / NC
Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)
Deep Learning Function
AI Analytics Face Event: Face Detection
Smart Event:
- Line Crossing, Region Entrance, Region Exiting, Region Intrusion, Target Counting, Heat
Map, Video Metadata
- Loitering Detection, Illegal Parking Detection
*A maximum of 2 smart detection functions are suggested at a time to ensure
comprehensive detection results and the optimized performance by the camera.
*Face Event and Smart Event can only be enabled one at a time.
Network
Interface 10/100 Ethernet
Protocol
802.1x, DDNS, DHCP, FTP, HTTP POST, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF (Profile G, S, T,
M), PPPoE, QoS, RTCP, RTMP, RTP, RTSP, SMTP, SNMP, UDP, UPnP
Mechanical
Camera Angle
Adjustment
Pan 0 ~ 360°
Tilt 0 ~ 90°
Rotate 0 ~ 360°
Connectors
Power DC jack, PoE
Ethernet RJ-45
Audio
Built-in microphone Yes
External microphone required Yes (Audio jack, 3.5 mm)
Built-in speaker No
External speaker required Yes (Audio jack, 3.5 mm)
* For devices with a microphone or speaker, choose either the built-in or external option.
* If equipped with an Audio In port, it only supports microphones with power supply.
Video Output CVBS output (BNC connector x 1)
Digital I/O 4‐pin terminal block pitch 3.5 mm (0.14 in)
Local Storage
Micro SD card slot (SDHC / SDXC / UHS-I, Class 10)
* UHS-II card type is not supported.
General
Operating Temperature -30 ~ 60°C (-22 ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12V DC, 1.5A / PoE (IEEE 802.3af)
Max. Power Consumption 12 W
Dimensions 272.3 x 94.9 x 88.9 mm (10.72 x 3.73 x 3.5 in)
Weight 1.12 kg (2.47 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, RoHS, UKCA compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Playback, Video Recording, Image Quality, Bandwidth Control,
Image Snapshot, Digital Zoom, Text Overlay, Image Masking, Intelligent Mark
Language
Hungarian, English, Spanish, Spanish (LA), Italian, Portuguese, Russian, Polish, Romanian,
Hebrew, German, French, Dutch, Norwegian, Czech, Turkish, Japanese, Korean, Traditional
Chinese


GV-GBL12811 September 26, 2024
- 4 -

Software Applications
Software Supported
GV-VMS (V17.4.8 with Patch or later, V18.3.4 with Patch or later), GV-Edge Recording
Manager (V2.2.8 or later), GV-Control Center (V4.2.1 or later), GV-Recording Server (V2.1.1
with Patch or later)
Smart Device Access GV-Eye for iOS and Android (V3.2.0 or later)
Live Viewing
Web Browser (Edge 120.0.2210.121, Chrome 120.0.6099.200, Firefox 121.0, Safari 11),
Mobile App
Note:
1. Industrial-grade microSD cards are recommended to avoid event recording writing failure.
2. All specifications are subject to change without notice.

Packing List
1. GV‐GBL12811 Bullet
2. Hex Key
3. Screw Kit
4. Drill Template Paster
5. CVBS & DC IN Cables
6. Download Guide


Accessories
Model No. Name Details
GV-Mount506 Junction Box


Dimensions: Ø 139.3 x 50 mm (Ø 5.48 x 1.97 in)
Weight: 0.51 kg (1.13 lb)
GV-PA191

PoE Adapter


GV-PA191 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device through a
single Ethernet cable.
GV-PA301 Gigabit PoE Adapter


GV-PA301 is a Gigabit Power over Ethernet (PoE)
adapter.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection for IP
devices. The GV-POE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.



GV-GBL12811 September 26, 2024
- 5 -
Dimensions



Mounting Type
Junction Box
GV-Mount506
