GV-FWC

GV-FWC July 30, 2019  ‐ 1 ‐  GV-FWC  Converter for Sending Access Card Data, paired to Face IDs, to Controllers        Introduction    GV ‐ FWC can integrate GV ‐Face Recognition Cameras into access control systems by sending access card data, paired to Face IDs, to  controllers either through TCP/IP or Wiegand connection. When connected via TCP/IP, a face image is transmitted along with the  access data upon face recognition.    Key Features    * Connection to controller via TCP/IP / Wiegand  * DC 12 V / PoE+ (IEEE 802.3at)  * 3 inputs / 2 outputs ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-FWC July 30, 2019
‐ 1 ‐

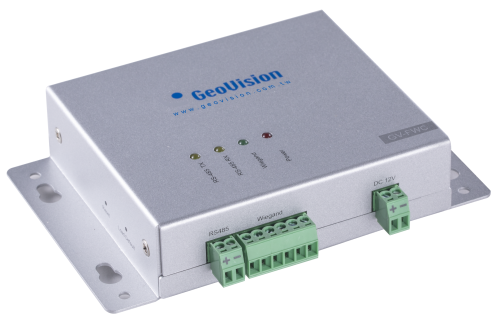

GV-FWC
Converter for Sending Access Card Data, paired to Face IDs, to Controllers



Introduction

GV ‐ FWC can integrate GV ‐Face Recognition Cameras into access control systems by sending access card data, paired to Face IDs, to
controllers either through TCP/IP or Wiegand connection. When connected via TCP/IP, a face image is transmitted along with the
access data upon face recognition.

Key Features

* Connection to controller via TCP/IP / Wiegand
* DC 12 V / PoE+ (IEEE 802.3at)
* 3 inputs / 2 outputs
* Support for up to 4 GV ‐ Face Recognition Cameras
* Compatible with 3
rd
‐ party Wiegand controllers
* Alarm trigger per Face Group

Diagram






GV-FWC July 30, 2019
‐ 2 ‐
Specifications
System Requirements
GV ‐ASManager V5.1.0.0 or later
GV ‐ Face Recognition Camera Supported
GV ‐FD8700 ‐ FR / VD8700 Firmware V1.10 or later
GV ‐ AS Controller Supported (for TCP/IP connection)
GV ‐AS210 / 2110 / 2120 / 410 / 4110
/ 4111 / 810 / 8110 / 8111
Firmware V2.20 or later
Operation
Communication Interface TCP/IP
2 Wiegand interfaces (In & Out), 26 ~ 64 bits
Wiegand Interface
12 V DC, 900 mA

Input 3 inputs
I/O
Output
2 relay outputs
Number of FR cameras supported 4 GV ‐FD8700 ‐ FR / GV ‐VD8700
General
Power 12V DC, 1.25A / PoE+ (IEEE 802.3at, provides up to 25.5 W)
Operating Temperature 0 ~ 65 °C (32 ~ 149 °F)
Operating Humidity 5% ~ 95% RH (non ‐condensing)
Dimensions (W x H x D) 130 x 31 x 84 mm (5.11 x 1.22 x 3.30 in)
Weight 170 g (0.37 lb)
Regulatory CE, FCC, RoHS
Note:
1. GV ‐ FWC can only be connected using CAT ‐ 5e cables, TIA/EIA ‐ 568 ‐ B, with a maximum DC resistance of 9.38 ohms/100 m.
2. All specifications are subject to change without notice.

Accessories
Model No. Name
Details

GV ‐CR420 IP Camera Reader GV ‐CR420 is a card reader with built ‐ in 4 MP wide angle IP camera that is able to

transmit a wide ‐ angle live view for enhanced access control management.

GV ‐DFR1352 Door Frame Card
Reader
GV ‐DFR1352 is a card reader designed to be installed on the door frame or

recognizing access cards.

GV ‐R1352 Card Reader GV ‐R1352 is a card reader, featured with Wiegand and RS‐ 485 outputs, designed to

recognize access cards.

GV ‐Reader1251 Card Reader GV ‐Reader1251 is a card reader that supports 125 ‐ kHz access cards for access

control management

GV ‐RK1352 Card Reader GV ‐RK1352 is a card reader with keypad, designed to recognize PIN codes, and/or

access cards.

GV ‐SR1251 Card Reader GV ‐SR1251 is a card reader that supports 125 ‐ kHz access cards for access control

management.

GV ‐PA901 PoE Adapter



GV ‐PA901 PoE adapter is designed to provide power and network connection to IP

cameras over a single Ethernet cable.



GV ‐ POE Switch GV ‐POE Switch is designed to provide power along with network connection for IP

devices. The GV ‐POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.




GV-FWC July 30, 2019
‐ 3 ‐
Packing List
1. GV ‐ FWC
2. Download Guide
3. Warranty Card
4. I/O Wires


Overview
