GV-FER5702 November 10, 2021
- 1 -

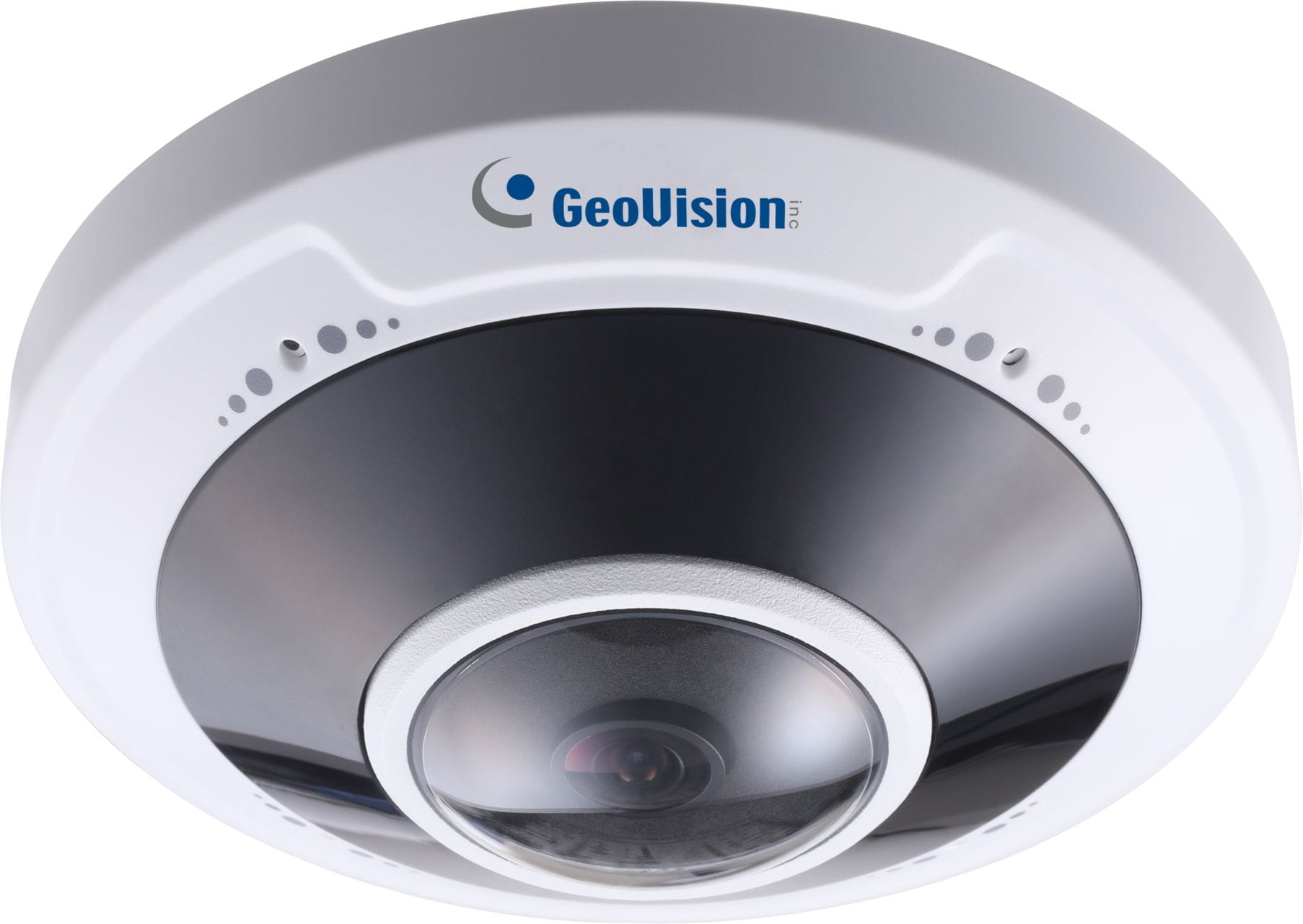

GV-FER5702 5MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera




Introduction
GV-FER5702 is a 5 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or
the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at
reduced network bandwidths. The camera adheres to IP66 and IK10 standards and can be powered through PoE. With its WDR Pro,
it can process scenes with contrasting intensity of lights and produce clear image. It is also equipped with a built-in micro SD card
slot for local storage.

Key Features
• 1/2.8" progressive scan CMOS
• Triple streams from H.265, H.264 and MJPEG
• Up to 30 fps at 2592 x 1944
• Day and Night function (with removable IR-cut filter)
• Intelligent IR
• Vandal resistance (IK10)
• Ingress protection (IP66)
• One sensor input and one alarm output
• Built-in microphone
• Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
• Two-way audio
• DC 12V/ PoE (IEEE 802.af)
• No mechanical moving parts
• Wide Dynamic Range Pro (WDR Pro)
• 2D / 3D noise reduction
• Smart streaming
• Tampering alarm
• Virtual PTZ function
• Auto Pan function
• Privacy mask
• Visual automation
• Text overlay
• 12 languages on Web interface
• ONVIF Profile S / G / T support




GV-FER5702 November 10, 2021
- 2 -
The following is a comparison of live view between a third-party fisheye camera and a GV-Fisheye Camera with IR LED.


Third-Party Fisheye Camera GV-Fisheye Camera with IR LED
Photos









GV-FER5702 November 10, 2021
- 3 -
Dimensions



Specifications
Camera
Image Sensor 1/2.8” progressive scan CMOS
Picture Elements 2592 (H) x 1944 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000s)
White Balance Auto / Manual (2800K ~ 8500K)
S/N Ratio 55 dB
WDR Pro Yes
Dynamic Range 120 dB
Optics Lens
Megapixel Yes
Day/Night Yes (with removable IR‐cut filter)
Lens Type Fixed
Focal Length 1.4 mm
Maximum Aperture F/2
Mount M12
Image Format 1/2.8”
Horizontal FOV 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 3 IR LEDs
Max. IR Distance 20 m (65 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Frame Rate
30 fps at 2592 x 1944 (50/60 Hz)
*The frame rate and the performance may vary depending on the number of
connections and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation
(Flip, Mirror, 0°, 180°)
Audio Compression G.711
Audio Support Two‐way Audio (external speaker required)
Sensor Input 1 Input, dry contact, NO / NC
Alarm Output 1 Relay Output (1A 30V DC / 0.3A 125V AC)




GV-FER5702 November 10, 2021
- 4 -
Video Resolution
Video
Resolution
Main Stream 2592 x 1944 (Default)
Sub Stream 640 x 480 (Default)
Third Stream (Closed by Default) 640 x 360, 352 x 288
Network
Interface 10/100 Ethernet
Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP,
RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile S, G, T)
Mechanical
Connectors
Power DC Jack
Ethernet RJ-45
Audio
1 In (built‐in or external microphone with power supply)
1 Out (Audio Out Wire)
Digital I/O I/O wires
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10)
*UHS-II card type is not supported.
General
Operating Temperature
Start-up
-30⁰C ~ 60⁰C (-22°F ~ 140°F)
Operation
Humidity 0% ~ 95% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 8.5W
Dimension Ø 125x 44 mm (Ø 4.9” x 1.7”)
Weight 360 g (0.79 lb)
Ingress Protection IP66
Vandal Resistance IK10
Regulatory CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or GV-IP Device Utility
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Portuguese,
Russian, Spanish, Traditional Chinese, Simplified Chinese
Applications
Software Supported
GV-VMS (V17.4.3 / V18.2.1)
*It is required to apply patch files to all the supported software.
Smart Device Access GV‐Eye for iOS and Android
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App
Note:
1. It is required to apply patch files to some of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using an inserted memory card for recording:
• Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
• The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
• Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
• To avoid power outage, it is highly suggested to apply a battery backup (UPS).
• For better performance, it is highly suggested to use micro SD card of MLC NAND flash, Class 10.
• Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
4. To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
5. Specifications are subject to change without notice.




GV-FER5702 November 10, 2021
- 5 -
Packing List
1. GV-FER5702 Fisheye Camera
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide


Accessories
Model No. Name Details
GV-Mount107 (must be used
with GV-Mount212P)
Pendant Bracket


Dimensions: Ø 120 x 334 mm
(Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-Mount211P Wall Mount and
Junction Box


Dimensions: 233 x 126 x 126 mm
(9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount


Dimensions: Ø 126 x 36 mm
(Ø 5.0” x 1.4”)
Weight: 0.22 kg (0.48 lb)
GV-PA191
Power over Ethernet
(PoE) Adapter


GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the
IP device through a single Ethernet cable.
GV-PoE Switch
GV-PoE Switch is designed to provide power along with network connection for IP devices.
GV-PoE Switch is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
