Warning! Product withdrawn from production!

Replacement product: GV-FER5702

Replacement product code: 84-FER572W-0010

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-FER5701 May 8, 2019
- 1 -

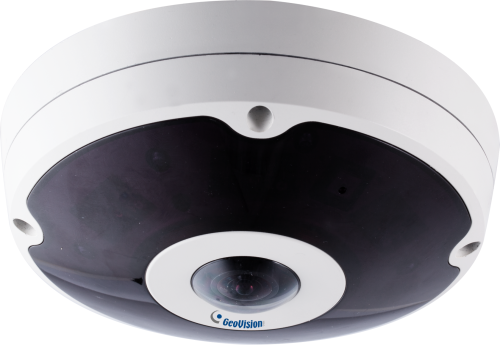

GV-FER5701 5MP H.265 Low Lux WDR Pro IR Fisheye Rugged IP Camera


Introduction
GV ‐FER5701 is a 5 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling, wall,
wall corner and pole. GV ‐FER5701 supports H.265 video codec to achieve better compression ratio while maintaining high video
quality at reduced network bandwidths. Equipped wit h automatic IR ‐cut filter and IR LEDs, GV ‐FER5701 is capable of day and night
surveillance. Without installing any software, you can watch live view and utilize functions such as video recording, privacy mask and
alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV ‐ DV R / NVR / VMS, providing
advanced monitoring and video management features.

Key Features
* 1/2.5’’ progressive scan CMOS
* Triple streams from H.265, H.264 and MJPEG
* Up to 30 fps at 2592 x 1944
* Day and night (with removable IR ‐cut filter)
* Wide Dynamic Range Pro (WDR Pro)
* Intelligent IR
* Vandal resistance (IK10+ for metal casing)
* Ingress protection (IP67 )
* 12V DC / PoE+ (IEEE 802.3at)
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
* USB slot for WiFi adapter or USB hard drive
* One sensor input and alarm output
* Built ‐ in microphone
* Digital Object Tracking
* Provides 360° and 180° panorama view
* Stereographic projection to reduce the distortion of the image
* Different angle of view accessible by multiple users at the same time
* Playback from any view angle and zoom level
* No mechanical moving parts
* Two ‐way audio
* Low lux enhancement
* 3D noise reduction
* Smart streaming
* Tampering alarm
* Virtual PTZ function
* Auto Pan function
* Privacy mask
* Visual automation
* Text overlay
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* Recording assigned by GV ‐Edge Recording Manager (Windows version)
* No Memory Card Slot & local storage function for Argentina.
* Smart streaming requires GV ‐DVR / NVR V8.7.0, GV ‐VMS V16.10.3.0 or later software versions.


GV-FER5701 May 8, 2019
- 2 -

The following is a comparison of live view between a third ‐party fisheye camera and a GV ‐Fisheye Camera with IR LED.



Third‐Party Fisheye Camera GV ‐Fisheye Camera with IR LED
Photos










GV-FER5701 May 8, 2019
- 3 -
Dimensions



Specifications
Camera
Image Sensor 1/2.5” progressive scan CMOS

Picture Elements 2592 (H) x 1944 (V)

Color 0.03 Lux

B/W 0.02 Lux

Minimum
Illumination
IR On 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Optics Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 1.05 mm

Maximum Aperture F/2.8

Mount M12

Image Format 1/2.5”

Horizontal FOV 180°

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 6 IR LEDs

Max. IR Distance 30 m (98.43 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG

Frame Rate
50Hz: 25 fps at 2592 x 1944, 25 fps at 2048 x 1944
60Hz: 30 fps at 2592 x 1944(default), 30 fps at 2048 x 1944
*The frame rate and the performance may vary depending on the number of connections and
data bitrates (different scenes).




GV-FER5701 May 8, 2019
- 4 -
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way Audio (external speaker required)

Sensor Input 1 input (Dry Contact)

Sensor Output 1 digital output (200mA 5V DC)

Video Resolution

4:3 2592 x 1944 (default)

Main Stream
20:19 2048 x 1944, 1792 x 1696, 1440 x 1376, 1280 x 1200

4:3 640 x 480 (default)

Sub Stream
20:19 640 x 608

4:3 640 x 480

Third Stream
(Closed by
Default)
20:19 640 x 608

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS
(DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Wireless LAN IEEE 802.11 b/g/n

Antenna Type External

Security WEP, WPA ‐PSK(TKIP), WPA ‐PSK(AES), WPA2 ‐PSK(TKIP), WPA2 ‐PSK(AES)

Security Feature
‐ No default ID and Password
‐ 802.1x authentication
‐ HTTPS with a SSL certificate stored in the camera
‐ 256 ‐bit AES encryption (requires firmware V1.14 or later working with GV ‐ VMS V18.1 or later)

Mechanical

Temperature Detector Yes

Power 2 ‐pin terminal block (DC 12V, 3.5A), PoE

Ethernet RJ ‐ 45

Audio
1 In (Built ‐ in or external microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14")

Digital I/O 3 ‐pin terminal block

Auto Iris None

Local
Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

Connectors
USB GV ‐ WiFi Adapter or USB hard drive

LED Indicator 1 LED: Power / Status (Green light shows the camera is on.)

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Operating
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE+ (IEEE 802.3at)

Max. Power Consumption 15 W

Dimension Ø 160.6 x 59.1 mm m (Ø 6.32” x 2.33”)

Weight 700 g (1.54 lb)

Ingress Protection IP67

Vandal Resistance IK10+ for metal casing

Regulatory CE, FCC, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE+ (IEEE 802.3at Class 4 Power over Ethernet / PD)

PoE Power Supply Type End ‐Span, Mid ‐Span

PoE Power Output Per Port 48V DC, 600mA. Max. 30 watts



GV-FER5701 May 8, 2019
- 5 -

Web Interface
Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew
/ Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish /
Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slo venian / Spanish /
Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.1.0.100), GV ‐Control Center (V3.5.1), GV ‐Edge Recording
Manager Windows Version (V1.4.0), GV ‐Recording Server (V1.4.2), GV ‐Redundant / Failover
Server (V1.1.0.0), GV ‐Mobile Server (V1.5.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

Note:
1. It is required to apply patch files to some of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
4. Specifications are subject to change without notice.

Packing List
1. H.265 Fisheye Camera
2. Back Plate
3. Plate Screw x 3
4. Plastic Screw Anchor x 3
5. Torx Wrench
6. RJ ‐ 45 Connector
7. Data Cable
8. Terminal Block
9. Installation Sticker
10. Ruler
11. Silica Gel Bag x 2
12. Download Guide
13. Warranty Card

Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x
10.1”)
Weight: 3.17 kg (6.99 lb)



GV-FER5701 May 8, 2019
- 6 -

Model No. Name Details
GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x
13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall Pendant Tube


Dimensions: 225 x 140 x 250 mm (8.9” x 5.5” x
9.8”)
Weight: 900 g (1.98 lb)

Note: To ensure the image quality, leave a distance of
1 M or more between the camera body and the wall.
GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm
(12.4 x 7.7 x 8.9”)
Weight: 2.95 kg (6.5 lb)
GV ‐Mount206 Wall Mount Bracket Kit



Dimensions: 126.5 x 211.3 x Ø 176.85 mm (5” x
8.3” x Ø 6.96”)
Weight: 0.93 kg / 2.06 lb

Note: To ensure the image quality, leave a distance of
1 M or more between the camera body and the wall.
GV ‐ Mount 208 ‐ 2 Swan Neck Mount


Dimensions: 1043 x 519 x 256 mm (41.06” x
20.43” x 10.08”)
Weight 10.5 kg (23.15 lb)
GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)




GV-FER5701 May 8, 2019
- 7 -

Model No. Name
Details

GV ‐Mount903 ‐ 1 Dome Housing


Dimensions: Ø 185.51 x 165.35 mm (Ø 7.3” x
6.51”)
Weight: 900 g (1.98 lb)
GV ‐Mount904 ‐ 1 Tilting Wall Mount
Bracket



Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3” x 1.6”)

Weight: 350 g (0.77 lb)

GV ‐Mount912 Power Box Mount
Bracket



Dimensions: Ø 146 x 10.5 mm (Ø 5.7’’ x 0.4’’)

Weight: 180 g (0.4 lb)

GV ‐ WiFi Adaptor V2



Dimensions: 15 x 15 x 155 mm (0.59” x 0.59” x

6.10”)

Weight: 0.01 kg (0.02 lb)



GV ‐ Relay V2



GV ‐Relay V2 is designed to expand the voltage

load of GV IP devices. It provides 4 relay outputs,

and each can be set as normally open (NO) or

normally closed (NC) independently as per your

requirement.

GV ‐POE Switch The GV ‐ POE Switch is designed to provide power along with network connection for

IP devices. The GV ‐ POE Switch is available in various models with different numbers

and types of ports.

Power Adaptor

Contact our sales representatives for the countries and areas supported.
