GV-FER5700 May 6, 2018
- 1 -
GV-FER5700 5MP H.265 Low Lux WDR IR Fisheye Rugged IP Camera


Introduction
GV ‐FER5700 is a 5 MP outdoor fisheye camera that can support H.265 video codec to achieve better compression ratio while
maintaining high picture quality at reduced network bandwidths. GV ‐FER5700 allows you to monitor all angles of a location and it
can be installed to the ceiling, wall, wall corner and the pol e. Equipped with automatic IR ‐cut filter and IR LEDs, GV ‐FER5700 is
capable of day and night surveillance. The camera’s distorted hemispherical image can be converted into a conventional rectilinear
projection. Without installing any software, you can watch live view and utilize functions such as video recording, privacy ma sk and
alert notification through the Web interface. In addition, the camera seamlessly integrates with the GV ‐DVR / NVR / VMS, providing
advanced monitoring and video management features.

Key Features
* 1/1.8’’ progressive scan CMOS
* Dual streams from H.265, H.264 and MJPEG
* Up to 30 fps at 2560 x 2048
* Day and night (with removable IR ‐cut filter)
* Intelligent IR
* Vandal resistance (IK10+ for metal casing)
* Ingress protection (IP67)
* 12V DC / PoE+ (IEEE 802.3at)
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
* USB slot for WiFi adapter or USB hard drive
* One sensor input and alarm output
* Built ‐ in microphone
* Digital Object Tracking
* Provides 360° and 180° panorama view
* Different angle of view accessible by multiple users at the same time
* Playback from any view angle and zoom level
* No mechanical moving parts
* Two ‐way audio
* Wide Dynamic Range (WDR)
* Low lux enhancement
* 3D noi se reduction
* Smart streaming
* Tampering alarm
* Virtual PTZ function
* Auto Pan function
* Privacy mask
* Visual automation
* Text overlay
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* Recording assigned by GV ‐Edge Recording Manager (Windows version)
* No Memory Card Slot & local storage function for Argentina.
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0 or GV ‐VMS V16.10.3.0


GV-FER5700 May 6, 2018
- 2 -

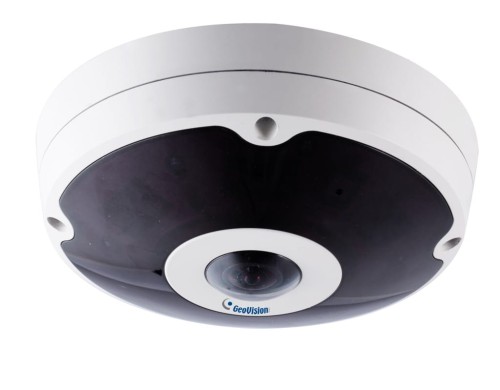

Photos











GV-FER5700 May 6, 2018
- 3 -
Dimensions



Specifications
Camera
Image Sensor 1/1.8” progressive scan CMOS

Picture Elements 2560 (H) x 2048 (V)

Color 0.04 Lux

B/W 0.03 Lux

Minimum
Illumination
IR On 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR Yes

Dynamic Range 72 dB

Optics Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 1.45 mm

Maximum Aperture F/2.2

Mount M12

Image Format 1/1.8”

Horizontal FOV 180°

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 6 IR LEDs

Max. IR Distance 30 m (98.43 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Dual streams from H.265, H.264 or MJPEG

Frame Rate
50Hz: 25 fps at 2560 x 2048, 25 fps at 2176 x 2048
60Hz: 30 fps at 2560 x 2048, 30 fps at 2176 x 2048
*The frame rate and the performance may vary depending on the number of connections and
data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Denoise,
Metering



GV-FER5700 May 6, 2018
- 4 -
Audio Compression G.711, AAC (Optional)

Audio Support Two ‐ Way Audio

Sensor Input 1 input (Dry Contact)

Sensor Output 1 digital output (200mA 5V DC)

Video Resolution

4:3 2560 x 2048 (default)

Main Stream
20:19 2176 x 2048, 1792 x 1696, 1440 x 1376, 1280 x 1200

4:3 640 x 512 (default)

Sub Stream
20:19 640 x 608

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP), RTP,
RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Wireless LAN IEEE 802.11 b/g/n

Antenna Type External

Security WEP, WPA ‐PSK(TKIP), WPA ‐PSK(AES), WPA2 ‐PSK(TKIP), WPA2 ‐PSK(AES)

Mechanical

Temperature Detector Yes

Power 2 ‐pin terminal block (DC 12V, 3.5A), PoE

Ethernet RJ ‐ 45

Audio
1 In (Using the built ‐ in microphone or externally connecting a microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14")

Digital I/O 3 ‐pin terminal block

Auto Iris None

Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

Connectors
USB GV ‐ WiFi Adapter or USB hard drive

LED Indicator 1 LED: Power / Status (Green light shows the camera is on.)

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Operating
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE+ (IEEE 802.3at)

Max. Power Consumption 15.5 W

Dimension Ø 160.6 x 59.1 mm m (Ø 6.32” x 2.33”)

Weight 700 g (1.54 lb)

Ingress Protection IP67

Vandal Resistance IK10+ for metal casing

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE+ (IEEE 802.3at Class 4 Power over Ethernet / PD)

PoE Power Supply Type End ‐Span, Mid ‐Span

PoE Power Output Per Port 48V DC, 600mA. Max. 30 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual
Automation, Tampering Alarm, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish
/ Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slo venian /
Spanish / Swedish / Thai / Traditional Chinese / Turkish



GV-FER5700 May 6, 2018
- 5 -

Applications
Software Supported
GV ‐ DVR / NVR (V8.7.0.0), GV ‐ VMS (V15.11.0.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V15.10.0.0), GV ‐Recording Server (V1.3.0.0), GV ‐Redundant / Failover Server
(V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing IE, Mobile App

CMS Server Support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
4. Specifications are subject to change without notice.

Packing List
1. H.265 Fisheye Camera
2. Back Plate
3. Plate Screw x 3
4. Plastic Screw Anchor x 3
5. Torx Wrench
6. RJ ‐ 45 Connector
7. Data Cable
8. Terminal Block
9. Installation Sticker
10. Ruler
11. Silica Gel Bag x 2
12. Door ‐ Plug
13. Download Guide
14. Warranty Card

Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x
10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x
13.1”)
Weight: 1.8 kg (3.97 lb)


GV-FER5700 May 6, 2018
- 6 -

Model No. Name Details
GV ‐Mount200 Wall Pendant Tube


Dimensions: 225 x 140 x 250 mm (8.9” x 5.5” x
9.8”)
Weight: 900 g (1.98 lb)

Note: To ensure the image quality, leave a distance of
1 M or more between the camera body and the wall.
GV ‐Mount206 Wall Mount Bracket Kit



Dimensions: 126.5 x 211.3 x Ø 176.85 mm (5” x
8.3” x Ø 6.96”)
Weight: 0.93 kg / 2.06 lb

Note: To ensure the image quality, leave a distance of
1 M or more between the camera body and the wall.
GV ‐ Mount 208 ‐ 2 Swan Neck Mount


Dimensions: 1043 x 519 x 256 mm (41.06” x
20.43” x 10.08”)
Weight 10.5 kg (23.15 lb)
GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
GV ‐Mount903 Fisheye Dome Housing


Dimensions: Ø 186 x 97.5 mm (Ø 7.3” x 3.8”)
Weight: 700 g (1.54 lb)
GV ‐Mount904 ‐ 1 Tilting Wall Mount
Bracket


Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3” x 1.6”)
Weight: 350 g (0.77 lb)


GV-FER5700 May 6, 2018
- 7 -

Model No. Name
Details

GV ‐Mount912 Power Box Mount
Bracket



Dimensions: Ø 146 x 10.5 mm (Ø 5.7’’ x 0.4’’)

Weight: 180 g (0.4 lb)

GV ‐ WiFi Adaptor V2



Dimensions: 15 x 15 x 155 mm (0.59” x 0.59” x

6.10”)

Weight: 0.01 kg (0.02 lb)



GV ‐ PoE Switch The GV ‐PoE Switch is designed to provide power along with network connection for

IP devices. The GV ‐PoE Switch is available in various models with different numbers

and types of ports.

Power Adaptor

Contact our sales representatives for the countries and areas supported.
