GV-FER12203
Description
GV-FER12203 February 21, 2018 - 1 - GV-FER12203 12MP H.264 Low Lux Fisheye Rugged IP Camera Introduction GV ‐FER12203 is a 12 MP outdoor fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling, wall, wall corner and the pole. The camera’s distorted hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can wa tch live view and utilize functions such as motion detection, privacy mask and alert notification through the Web interface. In addition, the camera seamlessly integrates with GV ‐DVR / NVR / VMS, providi...
Warning! Product withdrawn from production!
Replacement product: GV-FER12700
Replacement product code: 84-FER1270-0010
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
GV-FER12203 February 21, 2018
- 1 -

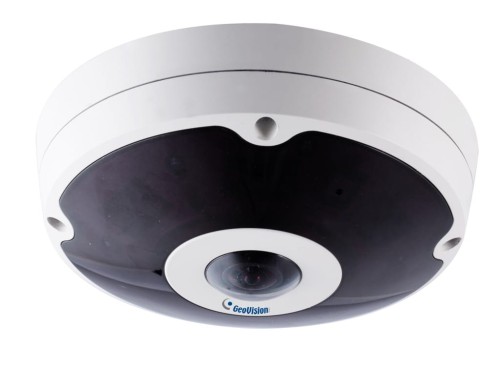

GV-FER12203 12MP H.264 Low Lux Fisheye Rugged IP Camera
Introduction
GV ‐FER12203 is a 12 MP outdoor fisheye camera that allows you to monitor all angles of a location. It can be installed to the ceiling,
wall, wall corner and the pole. The camera’s distorted hemispherical image can be converted into a conventional rectilinear
projection. Without installing any software, you can wa tch live view and utilize functions such as motion detection, privacy mask and
alert notification through the Web interface. In addition, the camera seamlessly integrates with GV ‐DVR / NVR / VMS, providing
advanced monitoring and video management features.
Key Features
* 1/1.7’’ progressive scan CMOS
* Dual streams from H.264 and MJPEG
* Up to 15 fps at 4000 x 3000
* Day and night (with removable IR ‐cut filter)
* Intelligent IR
* Vandal resistance (IK10+ for metal casing)
* Ingress protection (IP67)
* 12V DC / 24V AC / PoE + (IEEE 802.3at)
* Built ‐ in micro SD card slot (SD/SDHC/SDXC/UHS ‐ I) for local storage
* USB slot for WiFi adapter
* One sensor input and alarm output
* Built ‐ in microphone
* Digital Object Tracking
* Provides 360° and 180° panorama view
* Different angle of view accessible by multiple users at the same time
* Playback from any view angle and zoom level
* No mechanical moving parts
* Two ‐way audio
* Low lux enhancement
* 3D noise reduction
* Smart streaming
* Tampering alarm
* Virtual PTZ function
* Auto Pan function
* Privacy mask
* Visual automation
* Text overlay
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* Recording assigned by GV ‐Edge Recording Manager (Windows ver sion)
* No Memory Card Slot & local storage function for Argentina.
* Smart streaming requires either GV ‐NVR V8.7.0.0 or GV ‐VMS V16.10.0.0.
GV-FER12203 February 21, 2018
- 2 -
Photos
GV-FER12203 February 21, 2018
- 3 -
Dimensions
Specifications
System Requirements
CPU Intel Core i5 ‐4670, 3.40 GHz
Memory DDR3 8 GB RAM
On Board Graphics Intel HD Graphics 4600 (Versions of driver from year 2014 or later required)
Camera
Image Sensor 1/1.7” progressive scan CMOS
Picture Elements 4000 (H) x 3000 (V)
Color 0.1 Lux
B/W 0.05 Lux
Minimum
Illumination
IR On 0 Lux
Shutter Speed Automatic, Manual (1/30 ~ 1/16000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 52 dB
Optics Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Lens Type Fixed
Focal Length 1.83 mm
Maximum Aperture F/2.4
Mount M12
Image Format 1/1.7”
Horizontal FOV 180°
Focus Fixed
Zoom Fixed
Operation
Iris Fixed
IR LED Quantity 6 IR LEDs
Max. IR Distance 30 m (98.43 ft)
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 or MJPEG
Frame Rate
15 fps at 4000 x 3000, 25 fps at 2896 x 2768 (60/50 Hz)
*The frame rate and the performance may vary depending on the number of connections and data
bitrates (different scenes).
GV-FER12203 February 21, 2018
- 4 -
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image Orientation,
Shutter Speed, D/N, Denoise, Low Lux Enhancement, Metering
Audio Compression G.711, AAC (optional)
Audio Support Two ‐ Way Audio
Sensor Input 1 input (Dry Contact)
Sensor Output 1 Digital Output (200mA 5V DC)
Video Resolution
4:3 4000 x 3000 (Default)
Main
Stream
20:19 2896 x 2768
4:3 640 x 480 (Default)
Sub Stream
20:19 640 x 608
Network
Interface 10/100/1000 Ethernet
Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SMTP, SNMP, TCP,
UDP, UPnP, 3GPP/ISMA
Wireless LAN IEEE 802.11 b/g/n
Antenna Type External
Security WEP, WPA ‐PSK(TKIP), WPA ‐PSK(AES), WPA2 ‐PSK(TKIP), WPA2 ‐PSK(AES)
Mechanical
Temperature Detector Yes
Power 2 ‐pin terminal block (DC 12V, 3.5A), PoE
Ethernet RJ ‐ 45
Audio
1 In (Using the built ‐ in microphone or externally connecting a microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14”)
Digital I/O 3 ‐pin terminal block, pitch 2.5 mm (0.1”)
Auto Iris None
Local Storage
Micro SD card slot (SDHC/SDXC/UHS ‐ I, Class 10)
* UHS ‐ II card type is not supported.
Connectors
USB GV ‐ WiFi Adapter or USB hard drive
General
Operating Temperature ‐40°C ~ 50°C ( ‐40°F ~ 122°F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / 24V AC / PoE+ (IEEE 802.3at)
Max. Power Consumption 28 W
Dimension Ø 160.6 x 59.1 mm m (Ø 6.32” x 2.33”)
Weight 700 g (1.54 lb)
Ingress Protection IP67
Vandal Resistance IK10+ for metal casing
Regulatory CE, FCC, RCM, LVD, RoHS compliant
Power over Ethernet
PoE Standard PoE+ (IEEE 802.3at Power over Ethernet / PD)
PoE Power Supply Type End ‐Span
PoE Power Output Per Port 48V DC, 600mA. Max. 30 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Digital I/O Control, Audio, Picture in Picture, Picture and Picture, Motion Detection, Privacy Mask,
Visual Automation, Tampering Alarm, Auto Pan Function, Virtual PTZ, Wide Angle Lens Dewarping,
Text Overlay
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew /
Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese
/ Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Sloven ian / Spanish / Swedish /
Thai / Traditional Chinese / Turkish
GV-FER12203 February 21, 2018
- 5 -
Applications
Network Storage GV ‐ DVR / NVR / VMS, GV ‐Backup Center, GV ‐Recording Server
Live Viewing IE, Mobile App
CMS Server Support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Mind the following when using an inserted memory card for recording:
*Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
*The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
*Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
*To avoid power outage, it is highly suggested to apply a battery backup (UPS).
*For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
*Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
3.Specifications are subject to change without notice.
Packing List
1.Fisheye Camera
2. Back Plate
3. Plate Screw x 3
4.Plastic Screw Anchor x 3
5.Torx Wrench
6. RJ ‐ 45 Connector
7. Data Cable
8.Terminal Block
9.Installation Sticker
10.Ruler
11. Silica Gel Bag x 2
12.Power Adapter
13.Download Guide
14. Warranty Card
Note: Th e power adapter can be excluded upon request.
Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit
Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x
10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight Tube Kit
Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x
13.1”)
Weight: 1.8 kg (3.97 lb)
GV-FER12203 February 21, 2018
- 6 -
Model No. Name Details
GV ‐Mount200 Wall Pendant Tube
Dimensions: 225 x 140 x 250 mm (8.9” x 5.5” x
9.8”)
Weight: 900 g (1.98 lb)
Note: To ensure the image quality, leave a distance of
1 M or more between the camera body and the wall.
GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit
Dimensions: 315 x 195.5 x 225 mm (12.4” x 7.7”
x 8.9”)
Weight: 2.95 kg (6.5 lb)
Note: To ensure the image quality, leave a distance of
1 M or more between the camera body and the wall.
GV ‐Mount206 Wall Mount Bracket Kit
Dimensions: 126.5 x 211.3 x Ø 176.85 mm (5” x
8.3” x Ø 6.96”)
Weight: 0.93 kg / 2.06 lb
Note: To ensure the image quality, leave a distance of
1 M or more between the camera body and the wall.
GV ‐ Mount 208 ‐ 2 Swan Neck Mount
Dimensions: 1043 x 519 x 256 mm (41.06” x
20.43” x 10.08”)
Weight 10.5 kg (23.15 lb)
GV ‐Mount702 Extension Tube
Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
GV ‐Mount903 Fisheye Dome Housing
Dimensions: Ø 186 x 97.5 mm (Ø 7.3” x 3.8”)
Weight: 700 g (1.54 lb)
GV-FER12203 February 21, 2018
- 7 -
Model No. Name Details
GV ‐Mount904 ‐ 1 Tilting Wall Mount
Bracket
Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3” x 1.6”)
Weight: 350 g (0.77 lb)
GV ‐Mount912 Power Box Mount
Bracket
Dimensions: Ø 146 x 10.5 mm (Ø 5.7’’ x 0.4’’)
Weight: 180 g (0.4 lb)
GV ‐ Relay V2 GV ‐ Relay V2
The GV ‐Relay V2 is designed to expand the
voltage load of GV IP devices. It provides 4 relay
outputs, and each can be set as normally open
(NO) or normally closed (NC) independently as
per your requirement.
GV ‐ WiFi Adaptor
Dimensions: 15 x 15 x 155 mm (0.59’’ x 0.59’’ x
6.10’’)
Weight: 20 g (0.04 lb)
GV ‐POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection
for IP devices. The GV ‐ POE Switch is available in various models with different
numbers and types of ports.
Power Adapter
Contact our sales representatives for the countries and areas supported.
