GV-FE2301
Description
GV-FE2301 2MP H.264 WDR Fisheye IP Camera Introduction The GV ‐FE2301 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection. Without installing any software, you can watch live view and utilize functions such as mo tion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV ‐FE2301 seamlessly integrates with GeoVision video management software, providing advanced monitoring and video management features. The GV ‐Fisheye IP Camera is designed to be ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:

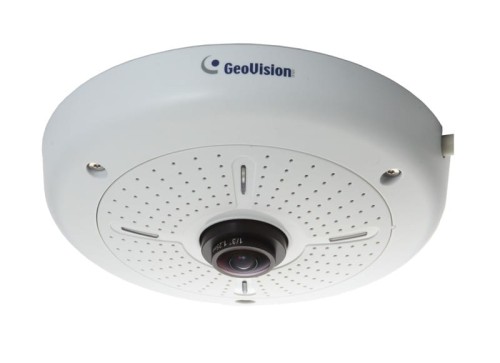

GV-FE2301 2MP H.264 WDR Fisheye IP Camera
Introduction
The GV ‐FE2301 is a fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted
hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection.
Without installing any software, you can watch live view and utilize functions such as mo tion detection, privacy mask, and alert
notification through the Web interface using an IE browser. In addition, the GV ‐FE2301 seamlessly integrates with GeoVision video
management software, providing advanced monitoring and video management features.
The GV ‐Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. Th ere are two ways to mount the GV ‐FE2301 on
the ceiling: Hard Ceiling Mount and In ‐Ceiling Mount . In ‐Ceiling Mount allows the GV ‐FE2301 to be mounted into the ceiling and
revealing only a small portion of the camera.
Key Features
* 2 MP progressive scan CMOS
* Dual streams from H.264 and MJPEG
* Up to 15 fps at 1440 x 1376
* Wide Dynamic Range (WDR)
* Provides 360° and 180° panorama view
* No mechanical moving parts
* Built ‐ in micro SD card slot (SD/SDHC) for local storage
* Bu ilt‐ in microphone and speaker
* One sensor input and alarm output
* 12 V DC / 24V AC / PoE (IEEE 802.3af)
* Recording assigned by GV ‐Edge Recording Manager (Windows , Mac ver sion)
* Digital Object Tracking
* Virtual PTZ function
* Auto Pan function
* Electronic Day/Night function
* Built ‐ in Web server for monitoring through IE browser
* Different angle of view controllable by multiple users at the same time
* Playback from any view angle and zoom level
* 2D noise reduction
* Privacy mask
* Visual automation
* Tampering alarm
* Text overlay
* 31 languages on web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS
* No memory card slot & local storage function for Argentina
GV-FE2301 January 3, 2018
- 1 -
Photos
GV-FE2301 January 3, 2018
- 2 -
Dimensions
Specifications
System Requirements
32‐ bit Windows XP / Vista / 7 / Server 2008
OS
64‐ bit Windows 7 / Server 2008
GV ‐DVR / NVR Version GV ‐DVR / NVR V8.5.6 with patch or later
Browser Internet Explorer 8.x or later
Camera
Image Sensor 1/2.5” progressive scan CMOS
Picture Elements 1440 (H) x 1376 (V)
Color 0.15 Lux
Minimum
Illumination
B/W 0.10 Lux
Shutter Speed Automatic, Manual (1/5 – 1/8000 sec.)
White Balance Automatic, Manual (2800K – 8500K)
Gain Control Automatic
S/N Ratio 45 dB
Optics Lens
Megapixel Yes
Day/Night Yes (electronic)
Iris Fixed Iris
Focal Length 1.05 mm
Aperture F/2.8
Mount M12, Pitch 0.5 mm
Image Format 1/2”
Focus Fixed
Zoom Fixed
Operation
Iris Fixed
GV-FE2301 January 3, 2018
- 3 -
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 or MJPEG
Frame Rate
15 fps at 1440 x 1376, 1280 x 1200 (60/50 Hz)
*The frame rate and the performance may vary depending on the number of connections and data bitrates
(different scenes).
Image Setting
Brightness, Contrast, Sharpness, Gamma, White Balance, Flicker ‐less, Backlight Compensation, Image
Orientation, Shutter Speed, Day / Night, WDR, Defog, Noise Reduction, Metering
Audio Compression G.711, AAC (optional)
Audio Support Two ‐ Way Audio
Sensor Input 1 Digital Input (Dry Contact)
Alarm Output 1 Digital Output
Video Resolution
Main Stream 1440 x 1376 (Default), 1280 x 1200
Sub Stream 640 x 608
Network
Interface 10/100 Ethernet
Protocol HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, RTSP, SNMP, QoS (DSCP), ONVIF (Profile S)
Mechanical
Lens Mounting M12, Pitch 0.5 mm (0.02”)
Temperature Detector Yes
Mechanical
Power Terminal block (3 pin), PoE
Ethernet Ethernet (10/100 BaseT[X]), RJ ‐ 45 Connector
Audio Built ‐ in microphone and speaker
Digital I/O I/O Wire
Auto Iris N/A
Local Storage
Micro SD card slot (SD/SDHC, SD version 2.0 only, Class 10)
* SDXC and UHS ‐ I card types are not supported.
Connectors
TV ‐ Out N/A
General
Environment Temperature 0 °C ~ 50 °C (32 °F ~ 122 °F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / 24V AC / PoE (IEEE 802.3af)
Max. Power Consumption 5 W
Hard‐Ceiling
Mount
ø 160 x 47.66 mm (6.30” x 1.88”)
Camera
Body
In ‐Ceiling
Mount
ø 164 x 47.66 mm (6.46” x 1.88”)
Cable Length 1 m (3.28 ft)
Cable Diameter ø 8 mm (0.31”)
Dimension
Maximum Connector
Diameter
ø 28.5 mm (1.12”)
Weight 650 g (1.43 lb)
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PSE)
PoE Power Supply Type End ‐Span
PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Digital I/O
Control, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Auto Pan Function, Virtual PTZ, Motion Detection, Wide Angle Lens Dewarping, Text Overlay, Digital PTZ
GV-FE2301 January 3, 2018
- 4 -
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian
/ Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian
/ Serbian / Simplified Chinese / Slovakian / Sl ovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV ‐DVR/NVR, GV ‐Backup Center, GV ‐Recording Server, GV ‐VMS
Live Viewing IE, mobile phone
CMS Server Support GV ‐Control Center, GV ‐Center V2, GV ‐Vital Sign Monitor
Note:
1. Mind the following when using a memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical shock, power
interruption, memory card detachment or when the memory card reaches the end of its lif espan. No guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if you seldom access the
memory card.
* Memory cards are expendable and their durability varies according to th e conditions of the installed site and how they are used. Back up your
data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently undetected by the camera.
2. Specifications are subject to change without notice.
Packing List
1. Fisheye Camera
2. Camera Cover (Hard Ceiling Mount)
3. Screw (Hard Ceiling Mount) x 3
4. Plastic Screw Anchor x 3
5. Camera Cover (In ‐Ceiling Mount)
6. Screw (In ‐Ceiling Mount) x 3
7. Support Bracket x 3
8. Torx Wrench
9. 3‐Pin or 2‐Pin Terminal Block
10. DC 12V Power Adapter
11. Installation Sticker
12. Download Guide
13. Warranty Card
Accessories
Model No. Name
Details
GV ‐Mount100 Straight Tube and Junction Box
Kit
Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight Tube Kit
Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall Pendant Tube
Dimensions: 225 x 140 x 250 mm (8.9” x 5.5” x 9.8”)
Weight: 900 g (1.98 lb)
GV-FE2301 January 3, 2018
- 5 -
Model No. Name
Details
GV ‐Mount203 Wall Pendant Tube and Junction
Box Kit
Dimensions: 315 x 195.5 x 225 mm (12.4” x 7.7” x 8.9”)
Weight: 2.95 kg (6.5 lb)
GV ‐Mount205 Wall Mount Bracket Kit
Dimensions: 126.5 x 203 x 160 mm (5” x 8” x 6.3")
Weight: 0.5 kg (1.1 lb)
GV ‐Mount 208 ‐ 2 Swan Neck Mount
Dimensions: 1043 x 519 x 256 mm (41.06” x 20.43” x
10.08")
Weight 10.5 kg (23.15 lb)
GV ‐Mount300 Convex Corner Adapter Kit
Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 Concave Corner Adapter Kit
Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4" ~ 6")
Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 4" ~ 6"
GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6" ~ 7.5")
Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6" ~ 7.5"
GV ‐Mount702 Extension Tube
Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-FE2301 January 3, 2018
- 6 -
Model No. Name
Details
GV ‐Mount903 Fisheye Dome Housing
Dimensions: Ø 186 x 97.5 mm (Ø 7.3” x 3.8”)
Weight: 700 g (1.54 lb)
GV ‐Mount904 Tilting Wall Mount Bracket
Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3” x 1.6”)
Weight: 400 g (0.88 lb)
GV ‐Mount912 Power Box Mount Bracket
Dimensions: Ø 146 x 10.5 mm (Ø 5.7’’ x 0.4’’)
Weight: 180 g (0.4 lb)
GV ‐ PA191 Power over Ethernet (PoE)
Adapter
The GV ‐ PA191 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device through a single
Ethernet cable.
Power Adapter
Contact our sales representatives for the countries and
areas supported.
* This item does not include a power cord.
GV ‐PoE Switch
The GV ‐ PoE Switch is designed to provide power along with
network connection for IP devices. The GV ‐ PoE Switch is
available in various models with different numbers and
types of ports.
GV ‐Relay V2
The GV ‐Relay V2 is designed to expand the voltage load of
GV IP devices. It provides 4 relay outputs, and each can be
set as normally open (NO) or normally closed (NC)
independently as per your requirement.
GV-FE2301 January 3, 2018
