GV-EVD2100
Description

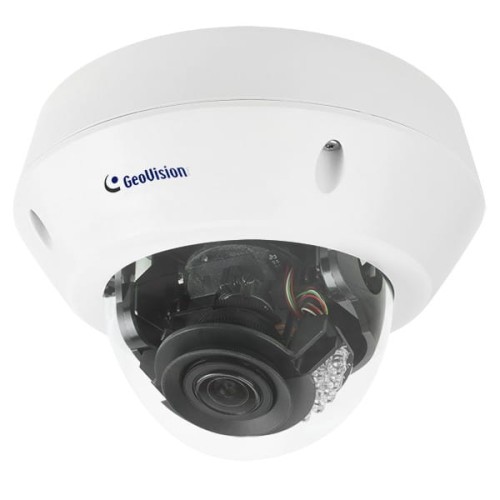

GV-EVD2100 2MP H.264 Super Low Lux WDR IR Vandal Proof IP Dome * 1/2.8” progressive scan super low lux CMOS * Min. illumination at 0.004 lux * Dual streams from H.264 and MJPEG * Up to 30 fps at 1920 x 1080 * Vandal resistance (IK10 for metal casing) * Ingress protection (IP67) * Megapixel varifocal lens * P ‐ iris lens for auto iris con trol * Intelligent IR * IR distance up to 50 m (164 ft) * Day and Night function (with removable IR ‐cut filter) * 3 ‐axi...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
GV-EVD2100 2MP H.264 Super Low Lux WDR IR Vandal Proof IP Dome
* 1/2.8” progressive scan super low lux CMOS
* Min. illumination at 0.004 lux
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 1920 x 1080
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* Megapixel varifocal lens
* P ‐ iris lens for auto iris con trol
* Intelligent IR
* IR distance up to 50 m (164 ft)
* Day and Night function (with removable IR ‐cut filter)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Two ‐way audio
* Wide Dynamic Range (WDR)
* 3D noi se reduction
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS
Introduction
The Target Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. The camera
is equipped with an automatic IR ‐cut filter and IR LEDs for day and night surveillance. With the super low lux CMOS image sensor, the
camera is capable of providing a color liv e view in near darkness. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry ‐level
surveillance solution with all the essential features and excellent image quality.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-EVD2100 February 22, 2018
- 1 -
Dimensions
Specifications
Camera
Image Sensor 1/2.8” progressive scan super low lux CMOS
Picture Elements 1920 (H) x 1080 (V)
Color 0.005 Lux
B/W 0.004 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 56 dB
WDR Yes
Dynamic Range Up to 72 dB
Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 3 ~ 9 mm
Lens Type Varifocal
Maximum Aperture F/1.7
Mount Ø14 mm
Horizontal FOV 102° ~ 40°
Image Format 1/2.8”
Focus Manual (with lock)
Zoom Manual (with lock)
Operation
Iris P ‐ iris
Max. Torque (Focus / Zoom Screws) 0.049 N.m
IR LED Quantity 20 IR LEDs
Max. IR Distance 50 m (164.04 ft)
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate
30 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement
Audio Compression G.711, AAC (Optional)
Audio Support Two ‐way Audio
GV-EVD2100 February 22, 2018
- 2 -
Video Resolution
4:3 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252
Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
4:3 640 x 480, 320 x 240
16:9 640 x 360 (Default), 448 x 252
Sub Stream
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv6, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP,
SMTP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector Yes
Pan 0° ~ 350°
Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 340°
Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable
Audio
1 In (microphone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Connectors
TV ‐ Out BNC connector (D1 resolution)
LED Indicator 2 LEDs: Power, Status
General
Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F) Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 6.1 W
Dimension ø160 x 108.4 mm (6.2” x 4.27”)
Weight 1.15 kg (2.54 lb)
Ingress Protection IP67
Vandal Resistance IK10
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐Span
PoE Power Output Per Port 48V DC, 350 mA. Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing IE, Mobile App
CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor
Note: Specifications are subject to change without prior notice.
GV-EVD2100 February 22, 2018
- 3 -
Packing List
1. Target Vandal Proof Dome
2. Screw x 4
3. Screw Anchor x 4
4. TV ‐ Out Wire
5. Audio Wires x 2
6. Installation Sticker
7. Conduit Converter
8. RJ ‐ 45 Connector
9. Waterproof rubber sets
(for RJ ‐ 45 Cat.5 and DC12V / for RJ ‐ 45 Cat.6)
10. Torx Wrench
11. Big Concave hexagon Wrench
12. Small Concave hexagon Wrench
13. Silica Gel Bag
14. Sticker (for Silica Gel Bag)
15. Ruler
16. Download Guide
17. Warranty Card
Note: Power adapters can be purchased upon request.
Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit
Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x
10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight T ube Kit Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x
13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall P endant Tube Dimensions: 225 x 140 x 250 mm (8.9” x 5.5” x
9.8”)
Weight: 900 g (1.98 lb)
GV ‐Mount203 Wall P endant Tube
and Junction Box Kit
Dimensions: 315 x 195.5 x 225 mm (12.4” x 7.7” x
8.9”)
Weight: 2.95 kg (6.5 lb)
GV ‐Mount206 Wall Moun t Bracket
Kit
Dimensions: 126.5 x 211.3 x 176.85 mm (5” x 8.3”
x 6.96’’)
Weight: 0.93 kg (2.06 lb)
GV-EVD2100 February 22, 2018
- 4 -
Model No. Name Details
GV ‐Mount 208 ‐ 2 Swan Neck Mount
Dimensions: 1043 x 519 x 256 mm (41.06” x
20.43” x 10.08")
Weight 10.5 kg (23.15 lb)
GV ‐Mount300 Convex Corner Adapter
Kit
Dimensions: 238.6 x 409.5 mm (9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 Concave Corner
Adapter Kit
Dimensions: 123.3 x 393.1 mm (4.9” x 15.5”)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 Pole Mount Bracket
Kit (Ø 4” ~ 6”)
Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4” ~ 6”
GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)
Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6” ~ 7.5”
GV ‐Mount702 Extension Tube
Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-EVD2100 February 22, 2018
- 5 -
Model No. Name Details
GV ‐Mount903 GV ‐ VD Series Dome
Housing
Dimensions: Ø 186 x 97.5 mm (Ø 7.3” x 3.8”)
Weight: 600 g (1.32 lb)
GV ‐Mount916 In ‐Ceiling Mount
Dimensions: Ø 205 x 63.8 mm (Ø 8” x 2.5”)
Weight: 645 g
GV ‐ PA 191 PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x
2.72” x 1.57”)
Weight: 130 g (0.29 lb)
Plastic PG21 Conduit Connector
The plastic PG21 conduit connector is used for
running the wires of the camera through a 1/2”
conduit pipe.
Metal PG21 Conduit Connector
The metal PG21 conduit connector allows you to
run the wires through a 3/4” conduit pipe.
GV ‐PoE Switch
The GV ‐ PoE Switch is designed to provide power along with network connection for
IP devices. The GV ‐ PoE Switch is available in various models with different numbers
and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
GV-EVD2100 February 22, 2018
