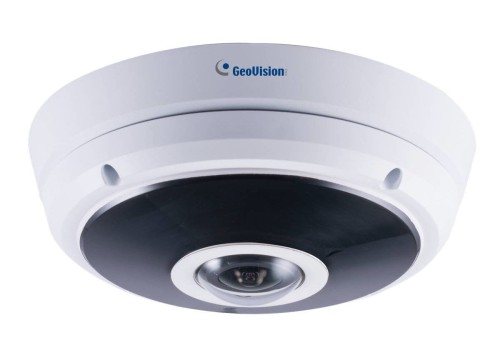

GV-EFER3700-W

Availability: 0
Price: €378.27 378.27
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: GEOVISION
Product code: 84-EFR3700-W01D

Description

GV-EFER3700-W July 27, 2018  - 1 -  GV-EFER3700-W 3MP H.265 Super Low Lux WDR Pro IR Wireless Fisheye Rugged  IP Camera      Introduction  GV ‐EFER3700 ‐ W is a 3 MP outdoor fisheye camera that can support wireless connection. With the WPS function, it can easily  connect to the WiFi router.    GV ‐EFER3700 ‐ W allows you to monitor all angles of a location and it can be installed to the ceiling, wall, wall corner and the pol e.  Equipped with automatic IR ‐cut filter and IR LEDs, GV ‐EFER3700 ‐ W is capable of day and night surveillance. The camera’s distorted ...

Warning! Product withdrawn from production!

Replacement product: GV-FER5702

Replacement product code: 84-FER572W-0010

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

GV-EFER3700-W July 27, 2018
- 1 -
GV-EFER3700-W 3MP H.265 Super Low Lux WDR Pro IR Wireless Fisheye Rugged
IP Camera


Introduction
GV ‐EFER3700 ‐ W is a 3 MP outdoor fisheye camera that can support wireless connection. With the WPS function, it can easily
connect to the WiFi router.

GV ‐EFER3700 ‐ W allows you to monitor all angles of a location and it can be installed to the ceiling, wall, wall corner and the pol e.
Equipped with automatic IR ‐cut filter and IR LEDs, GV ‐EFER3700 ‐ W is capable of day and night surveillance. The camera’s distorted
hemispherical image can be converted into a conventional rectilinear projection. Without installing any software, you can watch live
view and utilize functions such as video recording, pri vacy mask, and alert notification through the Web interface. In addition, the
camera seamlessly integrates with the GV ‐ DVR / NVR / VMS, providing advanced monitoring and video management features.

The camera support H.265 video codec to achieve better compression ratio while maintaining high picture quality at reduced
network bandwidths. It is c apable of providing a color live view not only in near darkness but also under contrasting light intensities
with its super low lux CMOS image sensor and WDR pro.

Key Features
* 1/2.8’’ progressive scan super low lux CMOS
* Triple streams from H.265, H.264 and MJPEG
* Up to 30 fps at 2048 x1536
* Day and night (with removable IR ‐cut filter)
* Intelligent IR
* Vandal resistance (IK8)
* Ingress protection (IP67)
* 12V DC
* Built ‐ in micro SD card slo t (SD/SDHC/SDXC/UHS ‐ I) for local storage
* Wireless Connection
* One sensor input and alarm output
* Digital Object Tracking
* Provides 360° and 180° panorama view
* Different angle of view accessible by multiple users at the same time
* Playback from any view angle and zoom level
* No mechanical moving parts
* Two ‐way audio
* Wide Dynamic Range Pro (WDR Pro)
* Low lux e nhancement
* 3D noise reduction
* Smart streaming
* Tampering alarm
* Virtual PTZ function


GV-EFER3700-W July 27, 2018
- 2 -
* Auto Pan function
* Privacy mask
* Visual automation
* Text overlay
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* Recording assigned by GV ‐Edge Recording Manager (Windows version)
* No Memory Card Slot & local storage function for Argentina.
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0 or GV ‐VMS V16.10.3.

Photos











GV-EFER3700-W July 27, 2018
- 3 -
Dimensions



Specifications
Camera
GV ‐EFER3700 ‐ W
Image Sensor 1/2.8” progressive scan super low lux CMOS

Picture Elements 2048 (H) x 1536 (V)

Color 0.001 Lux

B/W 0.001 Lux

Minimum
Illumination
IR On 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 54 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Optics Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 1.24 mm

Maximum Aperture F/1.8

Mount M12

Image Format 1/3”

Horizontal FOV 185°

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 3 IR LEDs

Max. IR Distance 20 m (65.61 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG
Stream 3 from H.265, H.264 or MJPEG



GV-EFER3700-W July 27, 2018
- 4 -
Frame Rate
50Hz: 25 fps at 2048 x 1536, 25 fps at 1440 x 1376
60Hz: 30 fps at 2048 x 1536, 30 fps at 1440 x 1376
*The frame rate and the performance may vary depending on the number of connections and data
bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement, Denoise, Metering

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐ Way Audio

Sensor Input 1 input (Dry Contact)

Sensor Output 1 digital output (200mA 5V DC)

Video Resolution

4:3 2048 x 1536 (Default)

Main Stream
20:19 1440 x 1376, 1280 x 1200

4:3 640 x 480 (Default)

Sub Stream
20:19 640 x 608

4:3 640 x 480

Third Stream
(Closed by
Default)
20:19 640 x 608

Network

Interface 10/100 Ethernet

Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S), QoS
(DSCP), RTP, RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Wireless LAN IEEE 802.11 b/g/n

Antenna Type Built ‐ In

Security WEP, WPA ‐PSK(TKIP), WPA ‐PSK(AES), WPA2 ‐PSK(TKIP), WPA2 ‐PSK(AES)

Receiver Sensitivity
‐ 90 dBm: 1 Mbps
‐ 85 dBm: 11 Mbps
‐ 71 dBm: 54 Mbps
‐ 65 dBm: 54 Mbps

Mechanical

Temperature Detector Yes

Power 2 ‐pin terminal block

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45

Audio
1 In (Externally connecting a microphone, 3.5 mm / 0.14")
1 Out (Stereo phone jack, 3.5 mm / 0.14")

Digital I/O 3 ‐pin terminal block, pitch 2.5 mm (0.1”)

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card type is not supported.

LED Indicator 4 LEDs: Power / Status / WiFi Power / WiFi Status

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F)
Operating
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC

Max. Power Consumption 9.5 W

Dimension Ø 140.5 x 52.2 mm m (5.5” x 2.05”)

Weight 670 g (1.47 lb)

Ingress Protection IP67

Vandal Resistance IK8

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility




GV-EFER3700-W July 27, 2018
- 5 -
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot,
Audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm,
Text Overlay

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew
/ Hungarian / Indonesian / Italian / Japanese / Lithuanian / Norwegian / Persian / Polish /
Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slo venian / Spanish /
Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.3.0), GV ‐ VMS (V16.10.3.0), GV ‐Edge Recording Manager (V1.2.0.0),
GV ‐Center V2 (V16.10.0.0), GV ‐Recording Server (V1.3.0.0),
GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Remote Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile App

CMS Server Support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Mind the following when using an inserted memory card for recording:
* Recorded data on the memory card can be damaged or lost if the data are accessed while the camera is under physical
shock, power interruption, memory card detachment or when the memory card reaches the end of its lifespan. No
guarantee is provided for such causes.
* The stored data can be lost if the memory card is not accessed for a long period of time. Back up your data periodically if
you seldom access the memory card.
* Memory cards are expendable and their durability varies according to the conditions of the installed site and how they are
used. Back up your data regularly and replace the memory card annually.
* To avoid power outage, it is highly suggested to apply a battery backup (UPS).
* For better performance, it is highly suggested to use Micro SD card of MLC NAND flash, Class 10.
* Replace the memory card when its read/write speed is lower than 6 MB/s or when the memory card is frequently
undetected by the camera.
4. Specifications are subject to change without notice.

Packing List
1. H.265 Fisheye Camera
2. Torx Wrench
3. Screw x 3
4. Screw Anchor x 3
5. Silica Gel Bag x 2
6. Terminal Block (3 ‐pin)
7. Power Adaptor

8. Installation Sticker
9. Download Guide
10. Warranty Card
Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit


Dimensions: 200 x 170 x 257.5 mm (7.9” x 6.7” x
10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight Tube Kit


Dimensions: 219 x 125 x 332 mm (8.6” x 4.9” x
13.1”)
Weight: 1.8 kg (3.97 lb)


GV-EFER3700-W July 27, 2018
- 6 -

Model No. Name
Details
GV ‐Mount200 Wall Pendant Tube



Dimensions: 225 x 140 x 250 mm (8.9” x 5.5” x

9.8”)

Weight: 900 g (1.98 lb)

Note: To ensure the image quality, leave a distance of

1 M or more between the camera body and the wall.


GV ‐Mount206
Wall Mount Bracket Kit




Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x

8.3 x 6.96 in (L x W x diameter)

Weight: 0.93 kg / 2.06 lb

Note: To ensure the image quality, leave a distance of

1 M or more between the camera body and the wall.


GV ‐Mount208 ‐ 2
Swan Neck Mount



Dimensions: 1043 x 519 x 256 mm / 41.06 x

20.43 x 10.08 in

Weight: 10.5 kg / 23.15 lb
GV ‐Mount702 Extension Tube



Four options are available.

Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm

(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)

Weight: 180 g or 390 g or 550 g or 800 g

(0.4 lb or 0.86 lb or 1.21 lb or 1.76 lb)
GV ‐Mount901 ‐ 1 Fisheye Dome Housing



Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3” x

6.5”)

Weight: 900 g (1.98 lb)
GV ‐Mount903 ‐ 1 Fisheye Dome Housing



Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3” x

6.5”)

Weight: 900 g (1.98 lb)







GV-EFER3700-W July 27, 2018
- 7 -
Model No. Name
Details
GV ‐Mount904 ‐ 1 Tilting Wall Mount
Bracket



Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3” x 1.6”)

Weight: 350 g (0.77 lb)
GV ‐Mount913 Power Box Mount
Bracket



Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)

Weight: 180 g (0.4 lb)
GV ‐ Relay V2



The GV ‐Relay V2 is designed to expand the

voltage load of GV IP devices. It provides 4

relay outputs, and each can be set as normally

open (NO) or normally closed (NC)

independently as per your requirement.
Power Adaptor


Contact our sales representatives for the

countries and areas supported.
