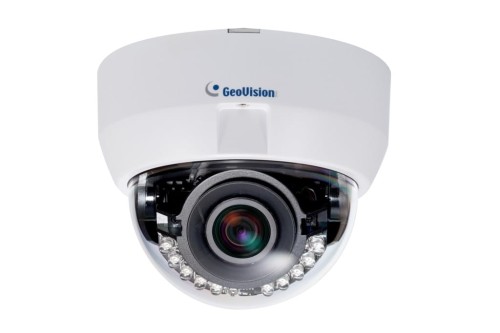

GV-EFD5101 5MP H.264 Low Lux WDR IR Fixed IP Dome          * 1/3.2” progressive scan low lux CMOS  * Dual streams from H.264 and MJPEG  * Up to 30 fps at 2592 x 1944  * Intelligent IR  * Day and Night function (with removable IR ‐cut filter)  * Megapixel varifocal lens  * P ‐ Iris lens for auto Iris control  * IR distance up to 30 m (98.4 ft)  * 3 ‐axis mechanism (pan / tilt / rotate)  * DC 12V / PoE (IEEE 802.3af)  * Two ‐way audio  * Wide Dynamic Range ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-EFD5101 5MP H.264 Low Lux WDR IR Fixed IP Dome




* 1/3.2” progressive scan low lux CMOS
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 2592 x 1944
* Intelligent IR
* Day and Night function (with removable IR ‐cut filter)
* Megapixel varifocal lens
* P ‐ Iris lens for auto Iris control
* IR distance up to 30 m (98.4 ft)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Two ‐way audio
* Wide Dynamic Range (WDR)
* 3D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP addre ss filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS


Introduction
GV ‐EFD5101 is an indoor, fixed network camera equipped with an automatic IR ‐cut filter, Low Lux, and IR LEDs for day and night
surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers an entry ‐level surveillance solution with all the essential features and
excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-EFD5101 February 22, 2018
- 1 -

Dimensions
Hard‐Ceiling Mount


In ‐Ceiling Mount





Specifications
Camera
Image Sensor 1/3.2” progressive scan low lux CMOS

Picture Elements 2592 (H) x 1944 (V)

Color 0.12 Lux

B/W 0.10 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 46 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 3 ~ 9 mm

Lens Type Varifocal

Maximum Aperture F/1.7

GV-EFD5101 February 22, 2018
- 2 -

Mount Ø14 mm

Horizontal FOV 92° ~ 32°

Image Format 1/3.2"

Focus Manual (w/lock)

Zoom Manual (w/lock)

Operation
Iris P ‐ Iris

Max. Torque (Focus / Zoom Screws) 0.049 N.m

IR LED Quantity 20 IR LEDs

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.264, MJPEG

Video Streaming Dual streams from H.264 and MJPEG

Frame Rate
30 fps at 2592 x 1944 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement, Noise Reduction

Audio Compression G.711, AAC (Optional)

Audio Support Two ‐way Audio

Video Resolution

4:3 2592 x 1944 (Default), 2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240

16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

4:3 960 x 720 (Default), 640 x 480, 320 x 240

16:9 640 x 360, 448 x 252

Sub Stream
5:4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv6, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP,
SMTP, TCP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan 0° ~ 350°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 340°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Audio
1 In (microphone phone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)

Connectors
TV ‐ Out BNC connector (D1 resolution)

LED Indicator 2 LEDs: Power, Status

General

Start ‐ up
Environment
Temperature
Operation
0°C ~ 50°C (32°F ~ 122°F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 7 W
Dimension ø 125 x 99.5 mm (4.92” x 3.92”)
Weight 470 g (1.04 lb)
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility

GV-EFD5101 February 22, 2018
- 3 -

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile App
CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. When the resolution is set at 2592 x 1944:
* If the camera is switched to single stream (while stream two is deselected) and Noise Reduction is disabled, the frame rate
can reach up to 30 FPS.
* If the camera is switched to dual streams and Noise Reduction is disabled, the frame rate can reach up to 25 FPS.
* As long as Noise Reduction is enabled, whether the camera is switched to single stream or dual streams, the frame rate will
be 15 FPS.
2. Specifications are subject to change without prior notice.

Packing List
1. Target Fixed Dome
2. Screw x 3
3. Screw Anchor x 3
4. Torx Wrench
5. TV ‐ Out Wire
6. Installation Sticker
7. Download Guide
8. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name Details

GV ‐Mount100 Straight Tube and
Junction Box Kit



Dimensions: 200 x 170 x 257.5 mm (7.9” x
6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)

GV ‐Mount101 Straight T ube Kit Dimensions: 219 x 125 x 332 mm


(8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)

GV ‐Mount200 Wall P endant Tube Dimensions: 225 x 140 x 250 mm (8.9” x

5.5” x 9.8”)
Weight: 900 g (1.98 lb)



GV-EFD5101 February 22, 2018
- 4 -

GV ‐Mount203 Wall Pendant Tube and
Junction Box Kit


Dimensions: 315 x 195.5 x 225 mm (12.4” x
7.7” x 8.9”)
Weight: 2.95 kg (6.5 lb)

GV ‐Mount300 Convex Corner Adapter
Kit


Dimensions: 238.6 x 409.5 mm
(9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)


GV ‐Mount310 Concave Corner Adapter
Kit


Dimensions: 123.3 x 393.1 mm (4.9” x
15.5”)
Weight: 2.96 kg (6.53 lb)

GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4” ~ 6”)


Bracket: 241 x 161 mm
(9.5” x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4” ~ 6”

GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)


Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6” ~ 7.5”

GV ‐Mount702 Extension Tube


Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)

GV ‐Mount909 Wall Box Mount


Dimensions: 170 x 150 x 110 mm
(6.7” x 5.9” x 4.3’’)
Weight: 610 g (1.34 lb)

GV ‐Mount910 Power Box Mount
Bracket


Dimensions: 112 x 98 x 7.5 mm
(4.4” x 3.9” x 0.3’’)
Weight: 105 g (0.23 lb)

GV-EFD5101 February 22, 2018
- 5 -

GV ‐Mount913 Power Box Mount
Bracket


Dimensions: Ø 146 x 7.5 mm
(Ø 5.7” x 0.3’’)
Weight: 180 g (0.4 lb)

GV ‐Mount915 In ‐Ceiling Mounting Kit
for GV ‐EFD2101 / 3101 /
5101



Dimensions: Ø 172.5 x 63.8 mm
(Ø 7.04” x 2.5’’)
Weight: 424 g (0.93 lb)

GV ‐Mount917 GV ‐EFD2101 / 3101 /
5101 Dome Housing





Dimensions: Ø 186 x 97.5 mm
(Ø 7.3” x 3.8’’)
Weight: 948 g (2.09 lb)

GV ‐PA191 PoE Adapter


Dimensions (H x W x D): 43 x 69 x 40 mm
(1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)

GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network connection

for IP devices. The GV ‐PoE Switch is available in various models with different

numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.


GV-EFD5101 February 22, 2018
