GV-EFD3101
Description

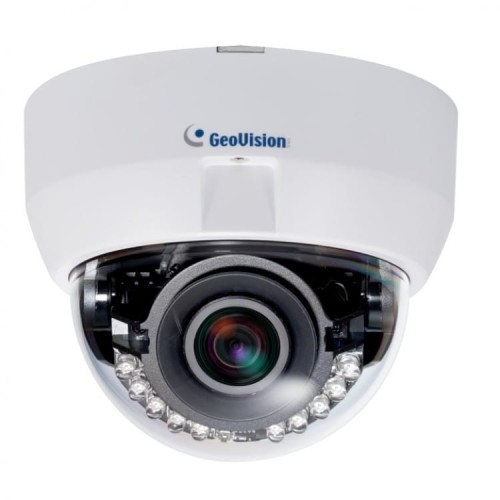

GV-EFD3101 3MP H.264 Super Low Lux WDR Pro IR Fixed IP Dome * 1/2.8” progressive scan super low lux CMOS * Dual streams from H.264 and MJPEG * Up to 30 fps at 2048 x 1536 * Intelligent IR * Day and Night function (with removable IR ‐cut filter) * Megapixel varifocal lens * P ‐ Iris lens for auto Iris control * IR di stance up to 50 m (164 ft) * 3 ‐axis mechanism (pan / tilt / rotate) * DC 12V / PoE (IEEE 802.3af) * Two ‐way audio * Wide Dynamic Range ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
GV-EFD3101 3MP H.264 Super Low Lux WDR Pro IR Fixed IP Dome
* 1/2.8” progressive scan super low lux CMOS
* Dual streams from H.264 and MJPEG
* Up to 30 fps at 2048 x 1536
* Intelligent IR
* Day and Night function (with removable IR ‐cut filter)
* Megapixel varifocal lens
* P ‐ Iris lens for auto Iris control
* IR di stance up to 50 m (164 ft)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Two ‐way audio
* Wide Dynamic Range Pro (WDR Pro)
* 3D noise reduction
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy ma sk
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More storage option ‐ NAS
Introduction
The Target Fixed Dome is an indoor, fixed network camera equipped with a WDR Pro, an automatic IR ‐cut filter, Super Low Lux, and IR
LEDs for day and night surveillance. Adjustable in 3 axis (pan, tilt and rotate), it offers a surveillance solution with all the essential
features and excellent imag e quality.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-EFD3101 February 22, 2018
- 1 -
Dimensions
Hard‐Ceiling Mount
In ‐Ceiling Mount
Specifications
Camera
Image Sensor 1/2.8” progressive scan super low lux CMOS
Picture Elements 2048 (H) x 1536 (V)
Color 0.01 Lux
B/W 0.01 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance Automatic, Manual (2800K ~ 8500K)
Gain Control Automatic
S/N Ratio 54 dB
WDR Yes
Dynamic Range Up to 100 dB
Lens
Megapixel Yes
Day/Night Yes (with removable IR ‐cut filter)
Focal Length 3 ~ 9 mm
Lens Type Varifocal
Maximum Aperture F/1.7
GV-EFD3101 February 22, 2018
- 2 -
Mount Ø14 mm
Horizontal FOV 96° ~ 36°
Image Format 1/2.8"
Focus Manual (w/lock)
Zoom Manual (w/lock)
Operation
Iris P ‐ Iris
Max. Torque (Focus / Zoom Screws) 0.049 N.m
IR LED Quantity 20 IR LEDs
Max. IR Distance 50 m (164.04 ft)
Operation
Video Compression H.264, MJPEG
Video Streaming Dual streams from H.264 and MJPEG
Frame Rate
30 fps at 2048 x 1536 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).
Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog, Low Lux
Enhancement
Audio Compression G.711, AAC (Optional)
Audio Support Two ‐way Audio
Video Resolution
4:3 2048 x 1536 (Default), 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240
16:9 1920 x 1080, 1280 x 720, 640 x 360, 448 x 252
Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256
4:3 960 x 720 (Default), 640 x 480, 320 x 240
16:9 640 x 360, 448 x 252
Sub Stream
5:4 640 x 512, 320 x 256
Network
Interface 10/100 Ethernet
Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv6, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP,
SMTP, TCP, UDP, UPnP, 3GPP/ISMA
Mechanical
Temperature Detector Yes
Pan 0° ~ 350°
Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 340°
Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable
Audio
1 In (microphone phone jack, 3.5 mm / 0.14”)
1 Out (stereo phone jack, 3.5 mm / 0.14”)
Connectors
TV ‐ Out BNC connector (D1 resolution)
LED Indicator 2 LEDs: Power, Status
General
Start ‐ up
Environment
Temperature
Operation
0°C ~ 50°C (32°F ~ 122°F)
Humidity 10% to 90% (no condensation)
Power Source 12V DC / PoE (IEEE 802.3af)
Max. Power Consumption 5.8 W
Dimension ø 125 x 99.5 mm (4.92” x 3.92”)
Weight 470 g (1.04 lb)
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐Span
PoE Power Output Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
GV-EFD3101 February 22, 2018
- 3 -
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing IE, Mobile App
CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor
Note: Specifications are subject to change without prior notice.
Packing List
1. Target Fixed Dome
2. Screw x 3
3. Screw Anchor x 3
4. Torx Wrench
5. TV ‐ Out Wire
6. Installation Sticker
7. Download Guide
8. Warranty Card
Note: Power adapters can be purchased upon request.
Accessories
Model No. Name Details
GV ‐Mount100 Straight Tube and
Junction Box Kit
Dimensions: 200 x 170 x 257.5 mm (7.9” x
6.7” x 10.1”)
Weight: 3.17 kg (6.99 lb)
GV ‐Mount101 Straight T ube Kit Dimensions: 219 x 125 x 332 mm
(8.6” x 4.9” x 13.1”)
Weight: 1.8 kg (3.97 lb)
GV ‐Mount200 Wall P endant Tube Dimensions: 225 x 140 x 250 mm (8.9” x
5.5” x 9.8”)
Weight: 900 g (1.98 lb)
GV ‐Mount203 Wall P endant Tube and
Junction Box Kit
Dimensions: 315 x 195.5 x 225 mm (12.4” x
7.7” x 8.9”)
Weight: 2.95
kg (6.5 lb)
GV-EFD3101 February 22, 2018
- 4 -
GV ‐Mount300 Convex Corner Adapter
Kit
Dimensions: 238.6 x 409.5 mm
(9.4” x 16.1”)
Weight: 4.27 kg (9.41 lb)
GV ‐Mount310 Concave Corner Adapter
Kit
Dimensions: 123.3 x 393.1 mm (4.9” x
15.5”)
Weight: 2.96 kg (6.53 lb)
GV ‐Mount400 Pole Mount Bracket Kit
(Ø 4” ~ 6”)
Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg ( 3.75 lb)
Steel Strap Diameter: Ø 4” ~ 6”
GV ‐Mount410 Pole Mount Bracket Kit
(Ø 6” ~ 7.5”)
Bracket: 241 x 161 mm (9.5” x 6.3”)
Weight: 1.70 kg (3.75 lb)
Steel Strap Diameter: Ø 6” ~ 7.5”
GV ‐Mount702 Extension Tube
Four options are available.
Dimensions:
Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight:
180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV ‐Mount910 Power Box Mount
Bracket
Dimensions: 112 x 98 x 7.5 mm
(4.4” x 3.9” x 0.3”)
Weight: 105 g (0.23 lb)
GV ‐Mount913 Power Box Mount
Bracket
Dimensions: Ø 146 x 7.5 mm
(Ø 5.7” x 0.3”)
Weight: 180 g (0.4 lb)
GV-EFD3101 February 22, 2018
- 5 -
GV ‐Mount915 In ‐Ceiling Mounting Kit
for GV ‐EFD2101 / 3101 /
5101
Dimensions: Ø 172.5 x 63.8 mm
(Ø 7.04” x 2.5’’)
Weight: 424 g (0.93 lb)
GV ‐Mount917 GV ‐EFD2101 / 3101 /
5101 Dome Housing
Dimensions: Ø 186 x 97.5 mm
(Ø 7.3” x 3.8”)
Weight: 948 g (2.09 lb)
GV ‐PA191 PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm
(1.69” x 2.72” x 1.57”)
Weight: 130 g (0.29 lb)
GV ‐PoE Switch
The GV ‐PoE Switch is designed to provide power along with network connection
for IP devices. The GV ‐ POE Switch is available in various models with different
numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
