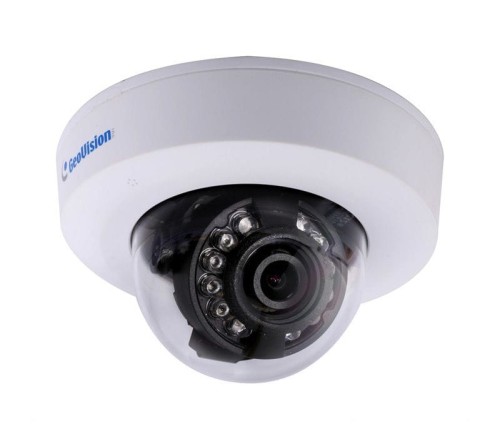

GV-EFD2100-0F

Availability: 0
Price: €147.22 147.22
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: GEOVISION
Product code: 84-EFD2100-0010

Description

GV-EFD2100 Series 2MP H.264 Low Lux WDR IR Mini Fixed IP Dome      * 1/2.8” progressive scan low lux CMOS  * Dual streams from H.264 and MJPEG  * Up to 25 fps at 1920 x 1080  * Intelligent IR  * Day and Night function (with removable IR ‐cut filter)  * 2 ‐axis mechanism (pan / tilt)  * Built ‐ in microphone  * Wide Dynamic Range (WDR )  * Defog  * Motion detection  * Tampering alarm  * Text overlay  * Privacy mask  * IP address filtering  * DC 12V / PoE (IE...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

GV-EFD2100 Series 2MP H.264 Low Lux WDR IR Mini Fixed IP Dome


* 1/2.8” progressive scan low lux CMOS
* Dual streams from H.264 and MJPEG
* Up to 25 fps at 1920 x 1080
* Intelligent IR
* Day and Night function (with removable IR ‐cut filter)
* 2 ‐axis mechanism (pan / tilt)
* Built ‐ in microphone
* Wide Dynamic Range (WDR )
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* IP address filtering
* DC 12V / PoE (IEEE 802.3af)
* Megapixel lens
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* More Storage Option ‐ NAS

Introduction
The Target Mini Fixed Dome is an indoor, fixed, mini ‐sized network camera equipped with an automatic IR ‐cut filter and IR LEDs for
day and night surveillance. Adjustable in 2 axis (pan and tilt), it offers an entry ‐level surveillance solution with all the essential
features and excellent image quality.

Models
Model Iris Focal Length (mm) Maximum Aperture Image Format

GV ‐EFD2100 ‐ 0F 2.8 F/2.0

GV ‐EFD2100 ‐ 2F
Fixed
3.8 F/1.8
1/2.7”


Active Tampering Alarm
Tampered Focus Change Camera Shift



GV-EFD2100 Series February 22, 2018
- 1 -

Dimensions



Specifications
Camera GV ‐EFD2100 ‐ 0F GV ‐EFD2100 ‐ 2F

Image Sensor 1/2.8” progressive scan low lux CMOS

Picture Elements 1920 (H) x 1080 (V)

Color 0.07 Lux

B/W 0.04 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, manual (1/5 ~ 1/8000 sec)

White Balance Automatic, manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 48 dB

WDR Yes

Dynamic Range Up to 72 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 2.8 mm 3.8 mm

Lens Type Fixed

Maximum Aperture F/2.0 F/1.8

Mount M12, Pitch 0.5 mm

Horizontal FOV 99° 72°

Image Format 1/2.7”

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 12 IR LEDs

Max. IR Distance 15 m (50 ft)

Operation

Video Compression H.264, MJPEG

Video Streaming Dual streams from H.264 and MJPEG

Frame Rate
25 fps at 1920 x 1080 (60/50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog

Audio Compression G.711, AAC (Optional)

Audio Support One ‐way audio

Video Resolution

4:3 1280 x 960, 640 x 480, 320 x 240

16:9 1920 x 1080 (Default), 1280 x 720, 640 x 360, 448 x 252

Main Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

GV-EFD2100 Series February 22, 2018
- 2 -

4:3 640 x 480, 320 x 240

16:9 640 x 360, 448 x 252 (Default)

Sub Stream
5:4 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, NTP, ONVIF (Profile S), QoS (DSCP), RTSP, SNMP, SMTP,
TCP, UDP, UPnP, 3GPP/ISMA, IPv4, IPv6

Mechanical

Pan ‐ 45° ~ 45°
Camera Angle
Adjustment
Tilt 0° ~ 63°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

Connectors
Audio 1 In (built ‐ in microphone)

LED Indicator 4 LEDs: Link, ACT, Power, Status

General

Environment Temperature 0°C ~ 45°C (32°F ~ 113°F)

Humidity 10% to 90% (no condensation)
Power Source 12V DC/PoE (IEEE 802.3af)
Max. Power Consumption 5.8 W
Dimension ø 100 x 60 mm (3.9” x 2.4”)
Weight 148 g (0.33 lb)
Regulatory CE, FCC, RCM, RoHS compliant
Power over Ethernet
PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)
PoE Power Supply Type End ‐span
PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital
PTZ
Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage GV ‐DVR/NVR, GV ‐Recording Server, GV ‐VMS
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing IE, Mobile App
CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note: Specifications are subject to change without prior notice.

Packing List
1. Target Mini Fixed Dome
2. Screw x 2
3. Screw Anchor x 2
4. Focus Adjustment Ring
5. Download Guide
6. Warranty Card
Note: Power adapters can be purchased upon request.

GV-EFD2100 Series February 22, 2018
- 3 -

Accessories

Model No. Name Details
GV ‐Mount909 Wall Mount Bracket


Dimensions: 170 x 150 x 110 mm (6.7” x 5.9” x 4.3”)
Weight: 610 g (1.34 lb)
GV ‐Mount910 Pow er Box Mount
Bracket


Dimensions: 112 x 98 x 7.5 mm (4.4” x 3.9” x 0.3”)
Weight: 105 g (0.23 lb)
GV ‐Mount913 Pow er Box Mount
Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7” x 0.3”)
Weight: 180 g (0.4 lb)
GV ‐Mount918

Wall Mount Bracket for
MFD/MDR/EFD/EDR


Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71” x 4.60” x
3.78”)
Weight: 350 g (0.77 lb)
GV ‐PA191 PoE Adapter
Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x
2.72” x 1.57”)
Weight: 130 g (0.29 lb)
GV ‐ PoE Switch
The GV ‐ PoE Switch is designed to provide power along with network connection
for IP devices. The GV ‐ PoE Switch is available in various models with different
numbers and types of ports.
Power Adapter
Contact our sales representatives for the countries and areas supported.


GV-EFD2100 Series February 22, 2018
- 4 -
