GV-EDR4700-0F

GV-EDR4700 Series May 7, 2018  - 1 -  GV-EDR4700 Series 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged  IP Dome        * 1/3” progressive scan super low lux CMOS  * Dual streams from H.265, H.264 and MJPEG  * Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at  2048 x 1520  * Day and Night function (with removable IR ‐cut filter)  * Vandal resistance (IK10 fo r metal casing)  * Ingress ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

GV-EDR4700 Series May 7, 2018
- 1 -

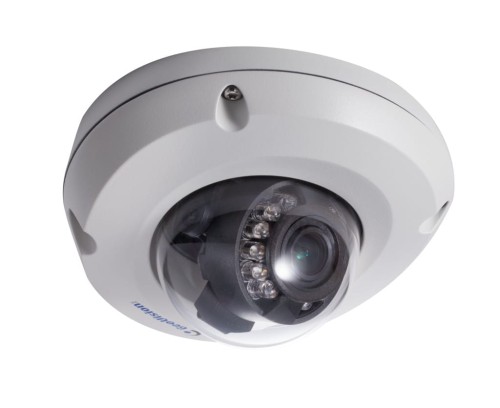

GV-EDR4700 Series 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged
IP Dome



* 1/3” progressive scan super low lux CMOS
* Dual streams from H.265, H.264 and MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at
2048 x 1520
* Day and Night function (with removable IR ‐cut filter)
* Vandal resistance (IK10 fo r metal casing)
* Ingress protection (IP67)
* 2 ‐axis mechanism (pan / tilt)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Intelligent IR
* 3D noise reduction
* Smart streaming
* Defog
* Motion detection
* Tampering alarm
* Text overlay
* Privacy ma sk
* IP address filtering
* Recording assigned by GV ‐Edge Recording Manager (Windows
& Mac )
* Supports iPhone, iPad, Android & 3GPP
* 31 languages on Web interface
* ONVIF (Profile S) conformant
* Smart streaming requires either GV ‐ DVR / NVR V8.7.0.0 or
GV ‐VMS V16.10.3

Introduction
The Target Mini Fixed Rugged Dome is an outdoor, fixed, mini ‐sized network camera equipped with an automatic IR ‐cut filter and IR
LEDs for day and night surveillance. The camera adheres to IK10 and IP67 standards. It is adjustable in 2 axes (pan and tilt) and can be
connected through PoE. The camera can support H.265 video codec to achieve better compression ratio while maintaining high
quality pictures at reduced network bandwidths. GV ‐ E DR4700 is capable of not only providing a color live view in near darkness but
also under contrasting light intensities with its super low lux CMOS image sensor and WDR Pro.

Models
Model Iris Focal Length (mm) Maximum Aperture Image Format

GV ‐EDR4700 ‐ 0F Fixed 2.8 F/2.0 1/2.7”

GV ‐EDR4700 ‐ 2F Fixed 3.8 F/1.8 1/2.7”


Active Tampering Alarm
Tampered Focus Change Camera Shift




GV-EDR4700 Series May 7, 2018
- 2 -
Dimensions



Specifications
Camera GV ‐EDR4700 ‐ 0F GV ‐EDR4700 ‐ 2F

Image Sensor 1/3" progressive scan super low lux CMOS

Picture Elements 2592 (H) x 1520 (V)

Color 0.03 Lux

B/W 0.02 Lux

Minimum
Illumination
IR ON 0 Lux

Shutter Speed Automatic, Manual (1/5 ~ 1/16000 sec.)

White Balance Automatic, Manual (2800K ~ 8500K)

Gain Control Automatic

S/N Ratio 50 dB

WDR WDR Pro

Dynamic Range Up to 120 dB

Lens

Megapixel Yes

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 2.8 mm 3.8 mm

Lens Type Fixed

Maximum Aperture F/2.0 F/1.8

Mount M12, Pitch 0.5 mm

Horizontal FOV 96° 72°

Image Format 1/2.7"

Focus Fixed

Zoom Fixed

Operation
Iris Fixed

IR LED Quantity 12 IR LEDs

Max. IR Distance 15 m (50 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming
Stream 1 from H.265 or H.264
Stream 2 from H.265, H.264 or MJPEG

Frame Rate
50Hz: 20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 25 fps at 2048 x 1520
60Hz: 20 fps at 2592 x 1520, 24 fps at 2560 x 1440, 30 fps at 2048 x 1520
* The frame rate and the performance may vary depending on the num ber of connections
and data bitrates (different scenes).

Image Setting
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker ‐less, Image
Orientation, Shutter Speed, Backlight Compensation, D/N Sensitivity, WDR, Defog, Low Lux
Enhancement, Denoise, Metering

Audio Support N/A



GV-EDR4700 Series May 7, 2018
- 3 -
Video Resolution
4:3 2048 x 1520, 1600 x 1200, 1280 x 960, 640 x 480

16:9 2592 x 1520, 2560 x 1440 (Default), 2304 x 1296, 1920 x 1080, 1280 x 720, 640 x 360

Main Stream
5:4 1280 x 1024, 640 x 512

4:3 1024 x 768, 640 x 480, 320 x 240

16:9 1280 x 720, 640 x 360 (Default), 448 x 256

Sub Stream
5:4 1280 x 1024, 640 x 512, 320 x 256

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, NTP, ONVIF (Profile S), QoS (DSCP),
RTP, RTCP, RTSP, SMTP, SNMP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA

Mechanical

Temperature Detector Yes

Pan ‐ 45° ~ 45°
Camera Angle
Adjustment
Tilt 0° ~ 63°

Power 2 ‐pin terminal block (DC 12V, 1.25A), PoE

Connectors
Ethernet Ethernet (10/100 Base ‐ T), RJ ‐ 45 cable

LED Indicator 4 LEDs: Link, ACT, Power, Status

General

Start ‐ up ‐20°C ~ 50°C ( ‐ 4°F ~ 122°F) Environment
Temperature
Operation ‐30°C ~ 50°C ( ‐22°F ~ 122°F)

Humidity 10% to 90% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 6.07 W

Dimension ø 114 x 62.8 mm (4.49’’ x 2.47”)

Weight 600 g (1.32 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RCM, LVD, RoHS compliant

Power over Ethernet

PoE Standard PoE (IEEE 802.3af Power over Ethernet / PD)

PoE Power Supply Type End ‐span and Mid ‐Span

PoE Power Output Per Port 48V DC, 350 mA, Max. 15.4 watts

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Picture in Picture, Privacy Mask, Text Overlay, Digital PTZ

Language
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek /
Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian /
Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian /
Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish

Applications

Software Supported
GV ‐ DVR / NVR (V8.7.1.0), GV ‐ VMS (V15.11.3.0), GV ‐Control Center (V3.4.0.0), GV ‐Edge
Recording Manager (V1.2.0.0), GV ‐Center V2 (V15.10.0.0), GV ‐Recording Server / Video
Gateway (V1.3.0.0), GV ‐Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Chrome, Firefox, Safari), Mobile App

CMS Server support GV ‐Control Center, GV ‐Center V2, GV ‐ Vital Sign Monitor

Note:
1. It is required to apply patch files to all the supported software mentioned above.
2. The signal range and data throughput may vary depending on the network conditions and environmental factors.
3. Specifications are subject to change without prior notice.




GV-EDR4700 Series May 7, 2018
- 4 -

Packing List
1. H.265 Mini Fixed Rugged Dome
2. Screw x 2
3. Screw Anchor x 2
4. Focus Adjustment Ring
5. Installation Sticker
6. Conduit Converter
7. RJ ‐ 45 Connector
8. Waterproof Rubber Sets
(for RJ ‐ 45 Cat.5 and 12V DC / for RJ ‐ 45 Cat.6)
9. Torx Wrench
10. Silica Gel Bag x 2
11. Adhesive Tape for Silica Gel Bag x 2
12. Concave Hexagon Wrench
13. Ruler
14. Screw for Conduit Converter x 2
15. Download Guide
16. Warranty Card
Note: Power adapters can be purchased upon request.

Accessories
Model No. Name
Details
GV ‐Mount910 Power Box Mount Bracket


Dimensions: 112 x 98 x 7.5 mm (4.4’’ x 3.9’’ x 0.3’’)
Weight: 105 g (0.23 lb)
GV ‐Mount913 Power Box Mount Bracket


Dimensions: Ø 146 x 7.5 mm (Ø 5.7’’ x 0.3’’)
Weight: 180 g (0.4 lb)

GV ‐Mount918 Wall Mount Bracket for
MFD/MDR/EFD/EDR



Dimensions: Ø 145 x 117 x 96 mm (Ø 5.71 x4.60 x
3.78")
Weight: 350 g (0.77 lb)

GV ‐PA191 PoE Adapter

Dimensions (H x W x D): 43 x 69 x 40 mm (1.69” x
2.72” x 1.57”)
Weight: 130 g (0.29 lb)

Plastic PG21 Conduit Connector


The plastic PG21 conduit connector is used for
running the wires of the camera through a 1/2”
conduit pipe.

Power Adapter

Contact our sales representatives for the countries
and areas supported.

GV ‐PoE Switch

The GV ‐ PoE Switch is designed to provide power
along with network connection for IP devices. The
GV ‐ PoE Switch is available in various models with
different numbers and types of ports.
