GV-EBFC5800

GV-EBFC5800 February 7, 2022  - 1 -  GV-EBFC5800 AI 5MP H.265 Super Low Lux WDR Pro Full Color Warm LED  Eyeball Dome IP Camera            • AI deep learning: AI Perimeter Protection & Classification (Human,  Vehicle)  • 1/2.7" progressive scan CMOS sensor  • Triple streams from H.265, H.264 or MJPEG  • Min. illumination at 0.001 lux  • Up to 30 fps at 2880 x 1620  • Full color smart warm LEDs distance up to 30 m (100 ft)  • Wide Dynamic Range Pro (WDR Pro)  • Built-in microphone  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage  • 3-axis mechanism (pan / tilt / rotate)  • Ingress protection (IP67)  • DC 12V / PoE (IEEE 802.3af)  • Defog  • 3D noise reduction  • AI analytics (Intrusion, Cross Line, Enter Area, Leave Area, Face  Detection, People Flow Counting, Crowd Density Monitoring)  • Motion detection  • Tampering alarm  • Text overlay  • Privacy mask  • 12 languages supported  • ONVIF (Profile G, S, T) conformant    Introduction  The Eyeball Dome IP Camera is an outdoor, network camera equipped with smart warm LEDs for full color surveillance. The camera  supports H.265 video codec to achieve better compression r...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-EBFC5800 February 7, 2022
- 1 -

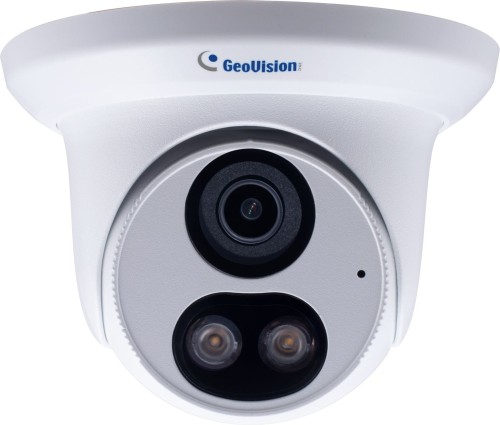

GV-EBFC5800 AI 5MP H.265 Super Low Lux WDR Pro Full Color Warm LED
Eyeball Dome IP Camera





• AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
• 1/2.7" progressive scan CMOS sensor
• Triple streams from H.265, H.264 or MJPEG
• Min. illumination at 0.001 lux
• Up to 30 fps at 2880 x 1620
• Full color smart warm LEDs distance up to 30 m (100 ft)
• Wide Dynamic Range Pro (WDR Pro)
• Built-in microphone
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• 3-axis mechanism (pan / tilt / rotate)
• Ingress protection (IP67)
• DC 12V / PoE (IEEE 802.3af)
• Defog
• 3D noise reduction
• AI analytics (Intrusion, Cross Line, Enter Area, Leave Area, Face
Detection, People Flow Counting, Crowd Density Monitoring)
• Motion detection
• Tampering alarm
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S, T) conformant

Introduction
The Eyeball Dome IP Camera is an outdoor, network camera equipped with smart warm LEDs for full color surveillance. The camera
supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. GV-EBFC5800 adheres to IP67 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Deep Learning Function
Face Detection


AI Perimeter Protection
(Intrusion, Cross Line
Enter Area, Leave Area)
People Counting













GV-EBFC5800 February 7, 2022
- 2 -
Dimensions



Specifications
Camera
Image Sensor 1/2.7" progressive scan CMOS
Picture Elements 2880 (H) x 1620 (V)
Minimum
Illumination
Color 0.001 Lux (F1.0, AGC ON)
Shutter Speed Automatic / Manual (1 ~ 1/100000 sec)
White Balance Automatic, Manual
Gain Control Automatic, Manual
S/N Ratio 56 dB
WDR WDR Pro
Dynamic Range 120 dB
Lens
Megapixel 5 MP
Day / Night Color
Lens Type Fixed
Focal Length 2.8 mm
Maximum Aperture F/1.0
Mount M12
Horizontal FOV 102°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
Smart
Illumination
LED Quantity 2 Warm LEDs
Max. IR Distance 30 m (100 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams from H.265, H.264 or MJPEG
Video Resolution
Main Stream 2880 x 1620 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
Sub Stream 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 480, 640 x 360, 352 x 288
Third Stream (Closed
by Default)
720 x 576, 640 x 360, 706 x 288, 352 x 288
Frame Rate
30 fps at 2880 x 1620, 30 fps at 2560 x 1440, 30 fps at 2304 x 1296, 30 fps at 1920 x
1080, 30 fps at 1280 x 720, 30 fps at 720 x 576, 30 fps at 704 x 288, 30 fps at 640 x 480,
30 fps at 640 x 360, 30 fps at 352 x 288 (60 / 50 Hz)
*The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).
Video Analytics
Motion Detection, Tampering Alarm, Audio Detection.
*Tampering alarm and Audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e-mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 90°, 180°, 270°‐including Corridor format),


GV-EBFC5800 February 7, 2022
- 3 -
Audio Compression G.711
Audio Support One-way Audio
Network
Interface 10/100 Ethernet
Protocol
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP,
PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T),
API
Deep Learning Function
AI Perimeter Protection
Intrusion, Cross Line, Enter Area, Leave Area (Human & Vehicle classification), Face
Detection, People Flow Counting, Crowd Density Monitoring
Mechanical
Camera Angle
Adjustment
Pan 3° ~ 360°
Tilt 0° ~ 80°
Rotate 3° ~ 360°
Connectors
Power DC 12V, PoE (IEEE 802.3af)
Ethernet RJ-45
Audio 1 In (Built-in microphone)
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10)
*UHS-II card type is not supported.
General
Environment
Temperature
Start-up
-30°C ~ 60°C (-22°F ~ 140°F)
Operation
Humidity 0% ~ 95% (no condensation)
Power Source DC 12V / PoE (IEEE802.3af)
Max. Power Consumption 7.5W
Dimensions Ø 126 x 93 mm (Ø 5” x 3.7”)
Weight 0.44 kg (0.97 lb)
Ingress Protection IP67
Regulatory CE, FCC, RoHS compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese
Software Applications
Software Supported
GV-DVR / NVR (V8.9.1), GV-VMS (V17.4.4 / V18.2.1), GV-Control Center (V3.8.0 /
V4.0.1), GV-Edge Recording Manager Windows Version (V2.0.0), GV-Recording Server
/ Video Gateway (V2.0.1), GV-Redundant / Failover Server (V1.2.0), GV-Mobile Server
(V1.5.1), GV-AI Guard (V1.0.0)
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App

Packing List
1. GV-EBFC5800 Eyeball Dome
2. Waterproof Rubber Set
3. Screw kit
4. Drill Template Paster
5. Download Guide



GV-EBFC5800 February 7, 2022
- 4 -
Accessories
Model No. Name Details
GV-Mount107(must be used
with GV-Mount212P)
Pendant Bracket


Dimensions: Ø 120 x 334 mm
(Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-Mount211P Wall Mount and
Junction Box


Dimensions: Ø 233 x 125 x 125 mm
(Ø 9.2” x 4.9” x 4.9”)
Weight: 1 kg (2.2 lb)
GV-Mount212P Wall Box Mount


Dimensions: Ø 126 x 36 mm (Ø 5.0” x 1.4”)
Weight: 0.22 kg (0.48 lb)
GV-Mount300-2 Convex Corner
Mount


Dimensions: 137 x 233 x 160 mm
(5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner
Mount


Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420
(must be used with
GV-Mount211P)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm
(Ø 4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6” ~
5”)
GV-Mount704 (must be used
with GV-Mount107)
Extension Tube


Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm
(Ø 1.38” x 3.9” or 7.9” or 11.8” or 19.7”)
Weight: 225 g or 360 g or 500 g or 780 g (0.5 lb or
0.79 lb or 1.1 lb or 1.72 lb)
GV-PA191 Power over Ethernet
(PoE) Adapter


The GV-PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network
connection for IP devices. The GV-POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
