GV-EBDP8800
Description

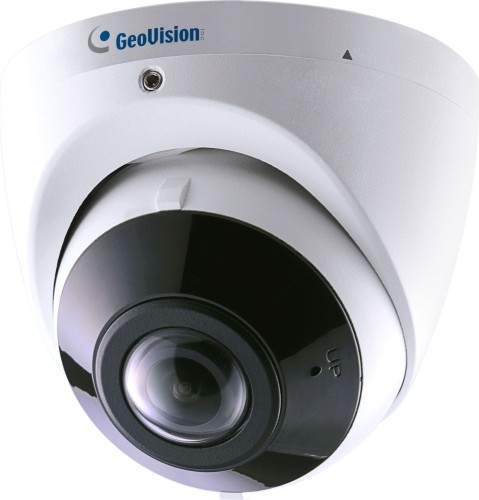

GV-EBDP8800 July 4, 2024 GV-EBDP8800 AI 180° Panoramic 8MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle) • 1/2.7" progressive scan super low lux CMOS sensor • Min. illumination at 0.01 lux • Triple streams from H.265, H.264 or MJPEG • Up to 30 fps at 3840 x 2160 • Intelligent IR • IR distance up to 20 m (65 ft) • Day and night function (with removable IR-cut filter) • 180° panoramic view • Ingress protection (IP67) • Vandal resistance (IK10 for metal casing) • 3-axis mechanism (pan / tilt / rotate) • DC 12V / PoE (IEEE 802.3af) • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage • Built-in microphone • Wide Dynamic Range Pro (WDR Pro) • AI analytics (Intrusion, Crossing Line, Entering Area, Leaving Area) • 3D noise reduction • Motion Detection • Tampering Alarm • Defog • Text Overlay • Privacy Mask • 12 languages supported • ONVIF (Profile G, S, T) conformant Introduction The panoramic eyeball IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide...
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-EBDP8800 July 4, 2024
GV-EBDP8800 AI 180° Panoramic 8MP H.265 Super Low Lux WDR Pro IR Eyeball
Dome IP Camera
• AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
• 1/2.7" progressive scan super low lux CMOS sensor
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 3840 x 2160
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and night function (with removable IR-cut filter)
• 180° panoramic view
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• 3-axis mechanism (pan / tilt / rotate)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
• Built-in microphone
• Wide Dynamic Range Pro (WDR Pro)
• AI analytics (Intrusion, Crossing Line, Entering Area, Leaving Area)
• 3D noise reduction
• Motion Detection
• Tampering Alarm
• Defog
• Text Overlay
• Privacy Mask
• 12 languages supported
• ONVIF (Profile G, S, T) conformant
Introduction
The panoramic eyeball IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage
of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day and night
surveillance. GV-EBDP8800 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera supports H.265 video
codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.
GV-EBDP8800 July 4, 2024
180 Degree Panoramic View
Deep Learning Function
AI Perimeter Protection
(Intrusion, Crossing Line, Entering Area, Leaving Area)
Dimensions
Specifications
Camera
Image Sensor 1/2.7” progressive scan CMOS
Picture Elements 3840 (H) x 2160 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
IR On 0 Lux
GV-EBDP8800 July 4, 2024
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 8 MP
Day/Night Yes (with removable IR-cut filter)
Focal Length 1.68 mm
Lens Type Fixed
Maximum Aperture F/2.0
Mount Ø12 mm
Horizontal FOV 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 20 m (65 ft)
DORI Detect Observe Recognize Identify
Lens 1.68 mm 37.8 m (124.0 ft) 15.1 m (49.6 ft) 7.6 m (24.8 ft) 3.8 m (12.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Video Resolution
Main Stream 3840 x 2160 (Default), 3072 x 1728, 2560 x 1440, 1920 x 1080
Sub Stream 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default), 704 x 288, 352 x 288
Third Stream
(Closed by
Default)
640 x 360, 352 x 288
Frame Rate
30 fps at 3840 x2160, 3072 x 1728, 2560 x 1440, 1920 x 1080 (50/60 Hz)
*The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).
Maximum throughput 50 Mbps
Maximum stream
*When the total bitrate is within
the maximum throughput
20
Video Analytics
Motion Detection, Audio Alarm, Tamper Detection.
*Tampering detection and audio alarm are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e‐mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 180°).
Audio Compression G.711
Audio Support One‐way audio
Deep Learning Function
AI Analytics Human & Vehicle classification: Intrusion, Crossing Line, Entering Area, Leaving Area
Network
Interface 10/100 Ethernet
Protocol
IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP,
NTP, SMTP, SNMP, PPPoE, 802.1x, QoS, IGMP, ONVIF Profile (G, S, T)
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 360°
Tilt 0° ~ 75°
Rotate 0° ~ 360°
GV-EBDP8800 July 4, 2024
Connectors
Power DC Jack, PoE
Ethernet RJ-45
Audio
Built-in microphone Yes
External microphone required No
Built-in speaker No
External speaker required No
*For devices with microphone or speaker, choose either the built-in or external option.
*If equipped with an audio in port, it only supports microphones with power supply.
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10), up to 256 GB
*UHS-II card type is not supported.
General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 12 V DC / PoE (IEEE802.3af)
Max. Power Consumption 7 W
Dimensions 111 x 93 mm (4.4” x 3.7”)
Weight 0.49 kg (1.06 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, LVD, RoHS, UL compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese
Software Applications
Software Supported
GV‐VMS (V17.4.7 or later / V18.3.2 or later), GV‐Control Center (V4.2.0 or later), GV‐Edge
Recording Manager Windows Version (V2.2.8 or later), GV‐Recording Server / Video
Gateway (V2.1.1 or later)
Smart Device Access GV-Eye for iOS and Android (V3.2.0 or later)
Live Viewing Browser (IE, Edge, Chrome, Firefox)
Note:
1. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
2. Specifications are subject to change without notice.
Packing List
1. GV-EBDP8800 IR Eyeball Dome
2. Waterproof Rubber Set
3. Screw kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
Accessories
Model No. Name Details
GV-Mount107
(must be used with
GV-Mount213)
Pendant Bracket
Dimensions: Ø 120 x 334 mm (Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-EBDP8800 July 4, 2024
GV-Mount211P Wall Mount and
Junction Box
Dimensions: Ø 233 x 126 x 126 mm (Ø 9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box
Mount
Dimensions: Ø 109 x 39 mm (Ø 4.3” x 1.5”)
Weight: 0.2 kg (0.44 lb)
GV-Mount300-2
(must be used with
GV-Mount211P)
Convex Corner Mount
Dimensions: 137 x 233 x 160 mm (5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2
(must be used with
GV-Mount211P)
Concave Corner
Mount
Dimensions: 111.2 x 369.9 x 210 mm
(2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420
(must be used with
GV-Mount211P)
Pole Mount Bracket
Dimensions: Ø 120 x 120 x 53.4 mm
(Ø 4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6” ~ 5”)
GV-Mount704
(must be used with
GV-Mount107)
Extension Tube
Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm
(Ø 1.38 x 3.9 or 7.9 or 11.8 or 19.7”)
Weight: 225g or 360g or 500g or 780g
(0.5 lb or 0.79 lb or 1.1 lb or 1.72 lb)
GV-Mount924 (for
standard US single
and double gang
boxes only)
Power Box Mount
Bracket
Dimensions: Ø 128 x 18.5 mm (Ø 5” x 0.7”) Weight:
0.15 kg (0.33 lb)
GV-PA191 Power over Ethernet
(PoE) Adapter
The GV-PA191 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device through a
single Ethernet cable.
GV-PA301 Gigabit PoE
Adapter
GV-PA301 is a Gigabit Power over Ethernet (PoE)
adapter.
GV-PoE Switch The GV-POE Switch is designed to provide power along with network connection for IP
devices. The GV-POE Switch is available in various models with different numbers and
types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
GV-EBDP8800 July 4, 2024
Mounting Type
Pendant Mount Wall Box Mount Convex Corner Mount
GV-Mont107 +
GV-Mount213
GV-Mont107 +
GV-Mount213 +
GV-Mount704
GV-Mount211P
GV-Mount211P +
GV-Mount300-2
GV-Mount211P +
GV-Mount310-2
Pole Mount Wall / Ceiling Box Mount Power Box Mount Bracket
GV-Mount211P +
GV-Mount420
GV-Mount213 GV-Mount924
