GV-EBDP5800

GV-EBDP5800 April 18, 2024  - 1 -  GV-EBDP5800 AI 180° Panoramic 5MP H.265 Super Low Lux WDR Pro IR  Eyeball Dome IP Camera              • AI deep learning: AI Perimeter Protection & Classification (Human,  Vehicle)  • 1/2.7" progressive scan CMOS  • Min. illumination at 0.01 lux  • Triple streams from H.265, H.264 or MJPEG  • Up to 30 fps at 2880 x 1620  • Intelligent IR  • IR distance up to 20 m (65 ft)  • Day and night function (with removable IR-cut filter)  • 180° panoramic view  • Ingress protection (IP67)  • Vandal resistance (IK10 for metal casing)  • DC 12V / PoE (IEEE 802.3af)  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for  local storage  • Built-in Microphone  • Wide Dynamic Range Pro (WDR Pro)  • AI analytics (Intrusion, Crossing Line, Entering Area, Leaving Area)  • 3D noise reduction  • Motion detection  • Tampering Alarm  • Defog  • Text overlay  • Privacy mask  • 12 languages supported  • ONVIF (Profile G, S, T, M) conformant    Introduction  The panoramic eyeball IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage  of view for op...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-EBDP5800 April 18, 2024
- 1 -

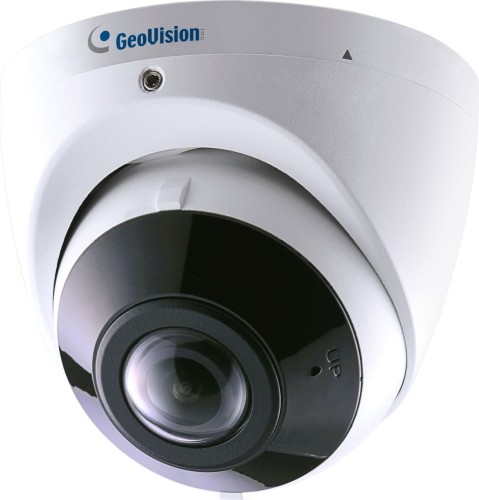

GV-EBDP5800 AI 180° Panoramic 5MP H.265 Super Low Lux WDR Pro IR
Eyeball Dome IP Camera






• AI deep learning: AI Perimeter Protection & Classification (Human,
Vehicle)
• 1/2.7" progressive scan CMOS
• Min. illumination at 0.01 lux
• Triple streams from H.265, H.264 or MJPEG
• Up to 30 fps at 2880 x 1620
• Intelligent IR
• IR distance up to 20 m (65 ft)
• Day and night function (with removable IR-cut filter)
• 180° panoramic view
• Ingress protection (IP67)
• Vandal resistance (IK10 for metal casing)
• DC 12V / PoE (IEEE 802.3af)
• Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for
local storage
• Built-in Microphone
• Wide Dynamic Range Pro (WDR Pro)
• AI analytics (Intrusion, Crossing Line, Entering Area, Leaving Area)
• 3D noise reduction
• Motion detection
• Tampering Alarm
• Defog
• Text overlay
• Privacy mask
• 12 languages supported
• ONVIF (Profile G, S, T, M) conformant

Introduction
The panoramic eyeball IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage
of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day and night
surveillance. GV-EBDP5800 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera supports H.265 video
codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated
with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, event playback and more.



GV-EBDP5800 April 18, 2024
- 2 -

180 Degree Panoramic View


Deep Learning Function

AI Perimeter Protection
(Intrusion, Crossing Line Entering Area, Leaving Area)

Dimensions

Specifications
Camera
Image Sensor 1/2.7” progressive scan CMOS
Picture Elements 2880 (H) x 1620 (V)
Minimum
Illumination
Color 0.01 Lux (F2.0, AGC ON)
IR On 0 Lux
Shutter Speed Auto / Manual (1 ~ 1/100000 sec)



GV-EBDP5800 April 18, 2024
- 3 -
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 56 dB
WDR Pro Yes
Dynamic Range 120 dB
Lens
Megapixel 5 MP
Day/Night Yes (with removable IR-cut filter)
Focal Length 1.68 mm
Lens Type Fixed
Maximum Aperture F/2.0
Mount Ø12 mm
Horizontal FOV 180°
Operation
Focus Fixed
Zoom Fixed
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 20 m (65 ft)
DORI Detect Observe Recognize Identify
Lens 1.68 mm 37.8 m (124.0 ft) 15.1 m (49.6 ft) 7.6 m (24.8 ft) 3.8 m (12.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Video Resolution
Main Stream 2880 x 1620 (Default), 2560 x 1440, 2304 x 1296, 1920 x 1080
Sub Stream 1920 x 1080, 1280 x 720, 720 x 576, 640 x 480, 640 x 360 (Default), 704 x 288, 352 x 288
Third Stream
(Closed by
Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288
Frame Rate
30 fps at 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080 (50/60 Hz)
*The frame rate and performance may vary depending on the number of connections and
data bitrates (different scenes).
Video Analytics
Motion Detection, Audio Alarm, Tamper Detection.
*Tampering detection and audio alarm are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e‐mail and FTP
Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker-less, 3D Noise Reduction, Image
Orientation (Flip, Mirror, 0°, 180°)
Audio Compression G.711
Audio Support One‐way Audio
Deep Learning Function
AI Analytics Human & Vehicle classification: Intrusion, Crossing Line, Entering Area, Leaving Area
Network
Interface 10/100 Ethernet
Protocol
802.1x, ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, ONVIF (Profile G,
S, T, M), PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP
Mechanical
Camera Angle
Adjustment
Pan 0° ~ 360°
Tilt 0° ~ 75°
Rotate 0° ~ 360°
Connectors
Power DC Jack, PoE
Ethernet RJ-45
Audio 1 In (built‐in microphone)
Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10)
* UHS-II card type is not supported.
General
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 0 ~ 95% (no condensation)
Power Source 1.25A 12V DC / PoE (IEEE802.3af)


GV-EBDP5800 April 18, 2024
- 4 -
Max. Power Consumption 5.5 W
Dimensions Ø 111 x 93 mm (Ø 4.4” x 3.7”)
Weight 0.48 kg (1.06 lb)
Ingress Protection IP67
Vandal Resistance IK10 for metal casing
Certification CE, FCC, LVD, RoHS, UL compliant
Web Interface
Installation Management Web-based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish, Traditional Chinese
Software Applications
Software Supported
GV‐VMS (V17.4.7 with patch / V18.3.2 with patch or later), GV‐Control Center (V3.8.0 with
patch / V4.2.0 or later), GV‐Edge Recording Manager Windows Version (V2.2.7 or later),
GV‐Recording Server / Video Gateway (V2.1.0 or later)
Smart Device Access GV-Eye for iOS / Android (V3.1.0 / V3.1.1 or later)
Live Viewing Browser (IE, Edge, Chrome, Firefox, Safari)
Note: Specifications are subject to change without notice.

Packing List
1. GV-EBDP5800 IR Eyeball Dome
2. Waterproof Rubber Set
3. Screw kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide

Accessories
Model No. Name Details
GV-Mount107
(must be used with
GV-Mount213)
Pendant Bracket


Dimensions: Ø 120 x 334 mm (Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV-Mount211P Wall Mount and
Junction Box


Dimensions: Ø 233 x 126 x 126 mm (Ø 9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV-Mount213 Wall / Ceiling Box
Mount


Dimensions: Ø 109 x 39 mm (Ø 4.3” x 1.5”)
Weight: 0.2 kg (0.44 lb)
GV-Mount300-2 Convex Corner Mount


Dimensions: 137 x 233 x 160 mm (5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)


GV-EBDP5800 April 18, 2024
- 5 -
GV-Mount310-2 Concave Corner
Mount


Dimensions: 111.2 x 369.9 x 210 mm (2.6” x 11.4” x
6.6”)
Weight: 1.65 kg (3.64 lb)
GV-Mount420
(must be used with
GV-Mount211P)
Pole Mount Bracket



Dimensions: Ø 120 x 120 x 53.4 mm (Ø 4.7” x 4.7” x
2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~ 127 mm (Ø 2.6” ~ 5”)
GV-Mount924 (for
standard US single
and double gang
boxes only)
Power Box Mount
Bracket


Dimensions: Ø 128 x 18.5 mm (Ø 5” x 0.7”) Weight:
0.15 kg (0.33 lb)
GV-Mount704
(must be used with
GV-Mount107)
Extension Tube


Dimensions: Ø 3.5 x 10 or 20 or 30 or 50 cm (Ø 1.38 x
3.9 or 7.9 or 11.8 or 19.7”)
Weight: 225g or 360g or 500g or 780g (0.5 lb or 0.79
lb or 1.1 lb or 1.72 lb)
GV-PA191

GV-PA191 is a Power over Ethernet (PoE) adapter
designed to provide power to the IP device through a
single Ethernet cable.
GV-PA301


GV-PA301 is a Gigabit Power over Ethernet (PoE)
adapter designed to provide power to the IP device
through a single Ethernet cable.
GV-POE Switch The GV-POE Switch is designed to provide power along with network connection for IP
devices. The GV-POE Switch is available in various models with different numbers and
types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
