GV-EBD8813

GV-EBD8813 AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome                  * AI Deep learning: AI Perimeter Protection & Classification  (Human, Vehicle)  * 1/2.8" progressive scan super low lux CMOS sensor  * Triple streams from H.265, H.264 or MJPEG  * Wide Dynamic Range Pro (WDR Pro)  * Min. illumination at 0.003 lux  * Up to 20 fps at 3840 x 2160  * In telligent IR  * Day and night function (with removable IR ‐cut filter)  * Motorized varifocal lens for remote focus / zoom adjustment ...

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

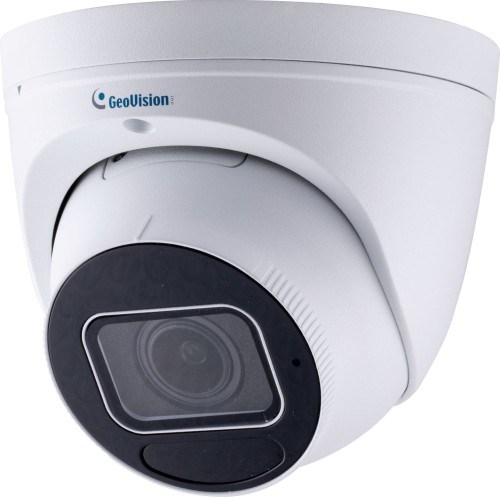

GV-EBD8813 AI 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome








* AI Deep learning: AI Perimeter Protection & Classification
(Human, Vehicle)
* 1/2.8" progressive scan super low lux CMOS sensor
* Triple streams from H.265, H.264 or MJPEG
* Wide Dynamic Range Pro (WDR Pro)
* Min. illumination at 0.003 lux
* Up to 20 fps at 3840 x 2160
* In telligent IR
* Day and night function (with removable IR ‐cut filter)
* Motorized varifocal lens for remote focus / zoom adjustment
* 3 ‐ axis mechanism (pan / tilt / rotate)
* IR distance up to 40 m (130 ft)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I) for local storage
* Built ‐ in microphone
* DC 12V / PoE (IEEE 802.3af)
* ONVIF (Profile G, S, T) conformant


Introduction
The Eyeball Dome IP Camera is an outdoor, network camera equipped with an automatic IR ‐cut filter and IR LEDs for day and night
surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at
reduced network bandwidths. GV ‐EBD8813 adheres to IK10 and IP67 st andards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with
GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.


Deep Learning Function


AI Perimeter Protection AI Event Search
(Intrusion, Crossing Line (VMS V18.3 or later)
Entering Area, Leaving Area)







Note: The integration of AI events of the camera to GV ‐VMS is coming soon.





GV-EBD8813 August 18, 2021
- 1 -

Dimensions


Specifications
Camera
Image Sensor 1/2.8" progressive scan super low lux CMOS

Picture Elements 3840 (H) x 2160 (V)

Color 0.003 Lux (F1.5, AGC ON)
Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1 ~ 1/100000 sec)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 56 dB

WDR WDR Pro

Dynamic Range 120 dB

Lens

Megapixel 8 MP

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Motorized varifocal lens

Focal Length 2.8 ~ 12 mm

Maximum Aperture F/1.6

Mount Ø 12 mm

Horizontal FOV 107° ~ 29°

Focus Auto / Manual

Zoom 4.3x Optical Zoom

Operation
Iris Fixed

IR LED Quantity 2 IR LEDs

Max. IR Distance 40 m (130 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams

Frame Rate
20 fps at 3840 x 2160, 25 fps at 3072 x 1728 / 2560 x 1440, 30 fps at 1920 x 1080 (60 /
50 Hz)
*The frame rate and performance may vary depending on the number of connections
and data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm, Audio Detection
*Tampering alarm and audio detection are only accessible through the camera’s Web
interface, which can be used to trigger alerts such as e ‐mail and FTP.

Image Setting
Brightness, Contrast, Saturation, Sharpness, Flicker ‐ less, Image Orientation (Flip,
Mirror, 0°, 90°, 180°, 270° ‐including Corridor format)

Audio Compression G.711

Audio Support One ‐way Audio

GV-EBD8813 August 18, 2021
- 2 -

Deep Learning Function
AI Perimeter Protection Intrusion, Crossing Line, Entering Area, Leaving Area (Human & Vehicle classification)

Video Resolution

Main Stream 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288

Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

Interface 10/100 Ethernet

Protocol
ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE,
RTCP, RTP, RTSP, SMTP, TCP, UDP, UPnP, ONVIF (Profile G, S, T)

Mechanical

Pan 0° ~ 360°

Tilt 0° ~ 75°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack (DC 12V, 1.25A), PoE

Ethernet RJ ‐ 45

Audio 1 In (built ‐ in microphone)

Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card types are not supported.

General

Start‐ up
Environment
Temperature
Operation
‐30°C ~ 60°C ( ‐ 22°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)

Power Source 12V DC / PoE (IEEE802.3af)

Max. Power Consumption 8.16W

Dimensions Ø 129 x 110 mm (Ø5.1” x 4.3”)

Weight 0.67 kg (1.48 lb)

Ingress Protection IP67

Vandal Resistance IK10 for metal casing

Regulatory CE, FCC, RoHS compliant

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Defog, Digital Zoom, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese

Web Interface

Software Supported
GV ‐VMS (V17.4.1 / V18.2.1), GV ‐ DVR / NVR (V8.9.1), GV ‐Control Center (V3.8.0),
GV ‐Recording Server / Video Gateway (V2.0.0), GV ‐Edge Recording Manager Win
version (V2.0.0), GV ‐Redundant / Failover Server (V1.2.0)

Smart Device Access GV ‐Eye for iOS and Android

Live Viewing Browser (IE, Edge, Chrome), Mobile App

Note:
1. It is required to apply patch files to all or some of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.


Packing List
1. GV ‐EBD8813 IR Eyeball Dome
2. Waterproof Rubber Set
3. Screw kit

4. Drill Template Paster
5. Download Guide
6. Warranty Card

GV-EBD8813 August 18, 2021
- 3 -

Accessories
Model No. Name Details

GV ‐Mount107 (must be
used with GV ‐Mount212P)
Pendant Bracket


Dimensions: Ø 120 x 334 mm
(Ø 4.72” x 13.15”)
Weight: 0.74 kg (1.63 lb)
GV ‐Mount211P Wall Mount and Junction
Box


Dimensions: Ø 233 x 126 x
126 mm (Ø 9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)

GV ‐Mount212P Wall Box Mount



Dimensions: Ø 126 x 36 mm
(Ø 5.0” x 1.4”)
Weight: 0.22 kg (0.48 lb)

GV ‐Mount300 ‐ 2 Convex Corner Mount


Dimensions: 137 x 233 x 160
mm (5.4” x 9.17” x 6.3”)
Weight: 1.65 kg (3.64 lb)

GV ‐Mount310 ‐ 2 Concave Corner Mount


Dimensions: 111.2 x 369.9 x
210 mm (2.6” x 11.4” x 6.6”)
Weight: 1.65 kg (3.64 lb)

GV ‐Mount420
(must be used with
GV ‐Mount211P)
Pole Mount Bracket


Dimensions: Ø 120 x 120 x 53.4
mm (Ø 4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)
Steel Strap Diameter: Ø 67 ~
127 mm (Ø 2.6” ~ 5”)


GV ‐Mount704 (must be
used with GV ‐Mount107)
Extension Tube


Dimensions: Ø 3.5 x 10 or 20
or 30 or 50 cm (Ø 1.38 x 3.9 or
7.9 or 11.8 or 19.7”)
Weight: 225 g or 360 g or 500 g
or 780 g (0.5 lb or 0.79 lb or
1.1 lb or 1.72 lb)

GV ‐PA191 Power over Ethernet
(PoE) Adapter


The GV ‐PA191 is a Power over
Ethernet (PoE) adapter
designed to provide power to
the IP device through a single
Ethernet cable.

GV ‐ POE Switch The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various
models with different numbers and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
