GV-EBD8711
Description
GV-EBD8711 July 19, 2018 - 1 - GV-EBD8711 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome * 1/2" progressive scan super low lux CMOS sensor * Min. illumination at 0.003 lux * Triple streams from H.265, H.264 or MJPEG * Up to 15 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 * Motorized varifocal lens for re mote focus / zoom adjustment * Intelligent IR * IR distance up to 30 m (98.4 ft) * Built ‐ in microphone * Built ‐ in ...
Warning! Product withdrawn from production!
Replacement product: GV-EBD8813
Replacement product code: 84-EBD8813-0010
Warranty: 24 mon.
Datasheet
Text contents of PDF datasheet:
GV-EBD8711 July 19, 2018
- 1 -

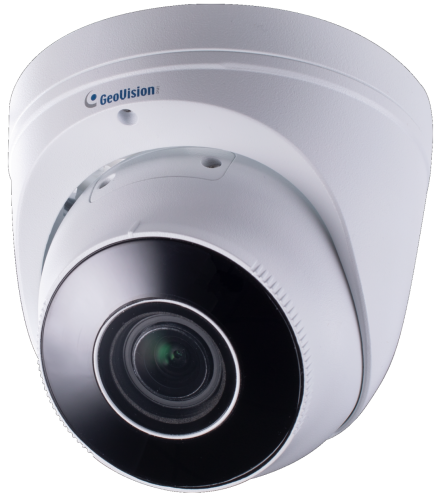

GV-EBD8711 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Eyeball IP Dome
* 1/2" progressive scan super low lux CMOS sensor
* Min. illumination at 0.003 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 15 fps at 3840 x 2160,
30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
* Motorized varifocal lens for re mote focus / zoom adjustment
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Built ‐ in microphone
* Built ‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I) for local storage
* Day and night function (with removable IR ‐cut filter)
* Ingress protection (IP67)
* DC 12V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
Introduction
The H.265 Target Eyeball Dome is an outdoor, network camera equipped with an automatic IR ‐cut filter and 2 IR LEDs for day and
night surveillance. With its motorized lens, the user can zoom and focus the camera from the Web interface. The camera adheres to
IP67 standards. The camera supports H.265 vi deo codec to achieve better compression ratio while maintaining high quality pictures
at reduced network bandwidths. The camera is capable of providing a color live view not only in near darkness but also under
contrasting light intensities with its super low lux CMOS image sensor and WDR pro.
Active Tampering Alarm
Tampered Focus Change Camera Shift
GV-EBD8711 July 19, 2018
- 2 -
Dimensions
129mm
(5.1")
Specifications
Camera
Image Sensor 1/2" progressive scan super low lux CMOS
Picture Elements 3840 (H) x 2160 (V)
Color 0.003 Lux
Minimum
Illumination
IR ON 0 Lux
Shutter Speed Auto / Manual (1/6 ~ 1/100000 sec)
White Balance Auto / Manual
Gain Control Auto / Manual
S/N Ratio 52 dB
WDR WDR Pro
Dynamic Range 120 dB
Lens
Megapixel 8 MP
Day / Night Yes (with removable IR ‐cut filter)
Lens Type Motorized varifocal lens
Focal Length 2.8 ~ 12 mm
Maximum Aperture F/1.5
Mount Ø 12 mm
Horizontal FOV 114.8° ~ 47.3°
Focus Auto / Manual
Zoom 4.3x Optical Zoom
Operation
Iris Fixed
IR LED Quantity 2 IR LEDs
Max. IR Distance 30 m (98.4 ft)
Operation
Video Compression H.265, H.264, MJPEG
Video Streaming Triple streams
Frame Rate
15 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440 (60 / 50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).
Audio Compression G.711
Audio Support One ‐way Audio
Video Resolution
Main Stream 3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080
Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288
Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288
Network
Interface 10/100 Ethernet
Protocol
DNS, DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, IPv6, ICMP, L2TP, NTP, PPPoE, RTP,
RTCP, RTSP, SIP, SMTP, SSL, TCP/IP, UDP, ONVIF (Profile S)
GV-EBD8711 July 19, 2018
- 3 -
Mechanical
Pan 0° ~ 360°
Tilt 0° ~ 75°
Camera Angle
Adjustment
Rotate 0° ~ 360°
Power DC Jack (DC 12V, 1.25A), PoE
Ethernet RJ ‐ 45
Audio 1 In (built ‐ in microphone)
Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)
Connectors
Local Storage
Micro SD card slot (SD/SDHC/SDXC/UHS ‐ I, Class 10)
*UHS‐ II card types is not supported.
General
Start ‐ up
Environment
Temperature
Operation
‐40°C ~ 60°C ( ‐40°F ~ 140°F)
Humidity 0% ~ 95% (no condensation)
Power Source 12V DC / PoE (IEEE802.3af)
Max. Power Consumption 8.16W
Dimensions 129 x 110 mm (Ø5.08” x 4.3”)
Weight 0.67 kg (1.48 lb)
Ingress Protection IP67
Regulatory CE, FCC, RoHS compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or Utility
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control,
Image Snapshot, Defog, Digital Zoom, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish
Applications
Software Supported
GV ‐ DVR / NVR (V8.7.4.0), GV ‐ VMS (V17.1), GV ‐Control Center (V3.5.0.0),
GV ‐Recording Server / Video Gateway (V1.4.0.0),
GV ‐Redundant / Failover Server (V1.1.0.0)
Smart Device Access GV ‐ Eye for iOS and Android
Live Viewing Browser (IE, Firefox, Safari), Mobile App
Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.
Packing List
1. H.265 Target Eyeball Dome
2. Waterproof Rubber Set
3. Screw x 3
4. Screw Anchor x 3
5. Drill Template Paster
6. Download Guide
7. Warranty Card
GV-EBD8711 July 19, 2018
- 4 -
Accessories
Model No. Name Details
GV ‐Mount211P Wall Mount Bracket
Dimensions: 233 x 126 x 126
mm (9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)
GV ‐Mount212P Wall Box Mount
Dimensions: Ø 126 x 36 mm
(5.0” x 1.4”)
Weight: 0.22 kg (0.48 lb)
GV ‐PA191 Power over Ethernet (PoE)
Adapter
The GV ‐PA191 is a Power over
Ethernet (PoE) adapter
designed to provide power to
the IP device through a single
Ethernet cable.
GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network
connection for IP devices. The GV ‐ POE Switch is available in various models
with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.
