GV-EBD8700

GV-EBD8700 July 15, 2019  - 1 -  GV-EBD8700 8MP H.265 Low Lux WDR Pro IR Eyeball IP Dome    * 1/2.5" progressive scan low lux CMOS sensor  * Min. illumination at 0.05 lux  * Triple streams from H.265, H.264 or MJPEG  * Up to 20 fps at 3840 x 2160  * Intelligent IR  * IR distance up to 30 m (100 ft)  * Day and night function (with removable IR ‐ cu t filter)  * Ingress protection (IP67)  * DC 12 V / PoE (IEEE 802.3af)  * Wide Dynamic Range Pro ...

Warning! Product withdrawn from production!

Replacement product: GV-EBD8800

Replacement product code: 84-EBD8800-0010

Warranty: 24 mon.

Datasheet

Text contents of PDF datasheet:

GV-EBD8700 July 15, 2019
- 1 -

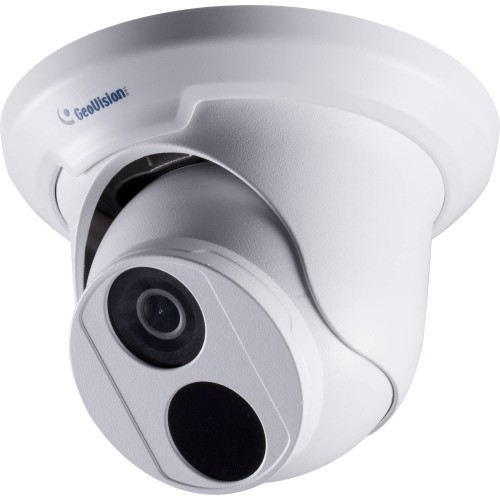

GV-EBD8700 8MP H.265 Low Lux WDR Pro IR Eyeball IP Dome

* 1/2.5" progressive scan low lux CMOS sensor
* Min. illumination at 0.05 lux
* Triple streams from H.265, H.264 or MJPEG
* Up to 20 fps at 3840 x 2160
* Intelligent IR
* IR distance up to 30 m (100 ft)
* Day and night function (with removable IR ‐ cu t filter)
* Ingress protection (IP67)
* DC 12 V / PoE (IEEE 802.3af)
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Tampering alarm
* Text overlay
* Privacy mask
* ONVIF (Profile S, Profile T) conformant

Introduction

The H.265 Target Eyeball Dome is an outdoor, network camera equipped with an automatic IR ‐cut filter and an IR LED for day and
night surveillance. The camera adheres to IP67 standards and supports H.265 video codec to achieve better compression ratio while
maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity
of lights and produce clear image.

Dimensions




Specifications
Camera
Image Sensor 1/2.5" progressive scan low lux CMOS

Picture Elements 3840 (H) x 2160 (V)

Color 0.05 Lux (F2.0, AGC ON)
Minimum
Illumination
IR ON 0 Lux

Shutter Speed Auto / Manual (1 ~ 1/100000 s)

White Balance Auto / Manual

Gain Control Auto / Manual

S/N Ratio 52 dB

WDR WDR Pro

Dynamic Range Up to 120 dB


GV-EBD8700 July 15, 2019
- 2 -
Optical Lens
Megapixel Yes

Day / Night Yes (with removable IR ‐cut filter)

Lens Type Fixed

Focal Length 2.8 mm

Maximum Aperture F/2.0

Mount M12

Horizontal FOV 106°

Focus

Zoom
Operation
Iris
Fixed
IR LED Quantity 1 IR LED

Max. IR Distance 30 m (100 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams from H.265, H.264 or MJPEG

Frame Rate
20 fps at 3840 x 2160, 30 fps at 2592 x 1944, 2944 x 1656, 2560 x 1440, 1920 x 1080
(60 /50 Hz)
* The frame rate and performance may vary depending on the number of
connections and data bitrates (different scenes).

Video Analytics
Motion Detection, Tampering Alarm, Cross Line, Intrusion, Object Moving, Object
Left, Defocus, Scene Change, Face Detection, People Counting
*Tampering alarm, cross line, intrusion, object moving, object left, defocus, scene
change, face detection, people counting are only accessible through the camera’s
Web interface, which can be used to trigger alerts su ch as e ‐mail and FTP

Video Resolution

Main Stream 3840 x 2160 (Default), 2592 x 1944, 2944 x 1656, 2560 x 1440, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288

Third Stream (Closed by Default) 720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

Interface 10/100 Ethernet

Protocol
802.1 x, ARP, DHCP, DynDNS, DNS, FTP, HTTP, HTTPS, IPv4, ICMP, IGMP, NTP, PPPoE,
QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP/IP, UDP, UPnP, ONVIF (Profile S, T)

Mechanical

Pan 0° ~ 360°

Tilt 0° ~ 90°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack (DC 12 V, 1.25 A), PoE

Connectors
Ethernet RJ ‐ 45

General

Start ‐ up
Environment
Temperature
Operation
‐35°C ~ 60°C ( ‐31°F ~ 140°F)
Humidity 0% ~ 90% (no condensation)

Power Source 12 V DC / PoE (IEEE 802.3af)

Max. Power Consumption 5.5 W

Dimensions 126 x 94 mm (Ø5.0 x 3.7”)

Weight 0.45 kg (0.99 lb)

Ingress Protection IP67

Regulatory CE, FCC, RoHS compliant
Web Interface
Installation Management Web ‐based configuration
Maintenance Firmware upgrade through Web Browser or GV ‐ IP Device Utility (V8.7.2.2)
Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Defog, Text Overlay, Image Masking
Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,
Russian, Spanish, Traditional Chinese


GV-EBD8700 July 15, 2019
- 3 -
Applications
Software Supported
GV ‐ DVR / NVR (V8.8.0), GV ‐VMS (V17.1.0.100), GV ‐Control Center (V3.5.1),
GV ‐Recording Server / Video Gateway (V1.4.2), GV ‐Edge Recording Manager for
Windows (V1.4.0), GV ‐Redundant / Failover Server (V1.1.0.0)
Live Viewing Browser (IE, Chrome, Edge, Firefox, Safari)

Note:
1. It is required to apply patch files to some of the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

Packing List
1. GV ‐EBD8700 IR Eyeball Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Download Guide
6. Warranty Card

Accessories
Model No. Name Details

GV ‐Mount211P Wall Mount Bracket


Dimensions: 233 x 126 x 126
mm (9.2” x 5” x 5”)
Weight: 1 kg (2.2 lb)

GV ‐Mount212P Wall Box Mount



Dimensions: Ø 126 x 36 mm
(5.0” x 1.4”)
Weight: 0.22 kg (0.48 lb)

GV ‐Mount420
(must be used with
GV ‐Mount211P)
Pole Mount Bracket


Dimensions: Ø 120 x 120 x 53.4
mm (4.7” x 4.7” x 2.1”)
Weight: 0.45 kg (0.99 lb)

GV ‐PA191 Power over Ethernet
(PoE) Adapter


GV ‐PA191 is a Power over
Ethernet (PoE) adapter
designed to provide power to
the IP device through a single
Ethernet cable.

GV ‐PoE Switch
GV ‐ PoE Switch is designed to provide power along with network connection for
IP devices. GV ‐ PoE Switch is available in various models with different numbers
and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
