GV-Data Capture

Availability: 101-500
Price: €222.46 222.46
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: GEOVISION
Product code: 55-ENPOS00-310D

Description

GV-Data Capture V3.1          Introduction  GV ‐ Data Capture V3.1 allows the integration of POS systems and GV ‐DVR systems through cable connection or network. It captures  information from POS, ATM, cashier system, or any other device providing text data, and overlays the information directly onto the  live or recorded video images. With the introduction of GV ‐ Data C apture V3....

Warranty: 24 mon.

Datasheet PDF


Text contents of PDF datasheet:

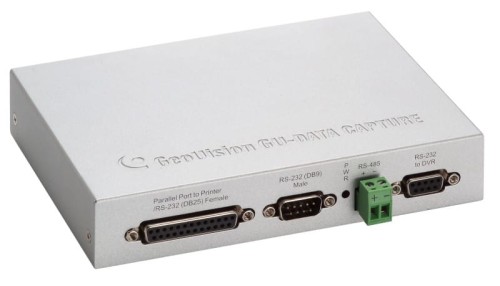

GV-Data Capture V3.1




Introduction
GV ‐ Data Capture V3.1 allows the integration of POS systems and GV ‐DVR systems through cable connection or network. It captures
information from POS, ATM, cashier system, or any other device providing text data, and overlays the information directly onto the
live or recorded video images. With the introduction of GV ‐ Data C apture V3.1, you can now empower your business with the total
integration of GeoVision digital surveillance system, effectively reduce inventory shrinkage and prevent losses.

Models
GV ‐ Data Capture V3.1
GV ‐ Data Capture V3.1E (with Ethernet module)

Specifications
Connector Function
DB9 Female RS‐ 232 from POS
Input
DB25 Male / Parallel Port RS‐ 232 from POS / Parallel Port from POS
DB9 Male RS‐ 232 to Printer
DB25Female / Parallel Port RS‐ 232 to Printer / Parallel Port to Printer
DB9 Female RS‐ 232 to DVR
RJ ‐ 45 (only for GV ‐ Data Capture V3.1E) RJ ‐ 45 to DVR
RS ‐485+ Connect to GV ‐ NET / GV ‐ Hub / GV ‐COM RS ‐485+
Output
RS ‐485‐ Connect to GV ‐ NET / GV ‐ Hub / GV ‐COM RS ‐485‐
Method Speed
RS‐ 232 from POS 1,200 bps~115,200 bps
RJ ‐ 45 to DVR 10 / 100 Mbps
RS‐ 232 to DVR 1,200 bps~115,200 bps
RS‐ 485 to GV ‐ NET Card / GV ‐ NET / IO Card 1,200 bps~19,200 bps
Communication
RS‐ 485 to GV ‐ Hub / GV ‐ COM 600 bps~115,200 bps
DC In Power Adapter DC 5V, 2A Inner Positive
Operating Temperature 0~50°C (32 ~ 122°F)
Environmental
Conditions
Humidity 5%~95% (non ‐condensing)
Dimensions (W x H x D) 161 x 34 x 123 mm (6.34 x 1.34 x 4.84 in)

All specifications are subject to change without notice.
GV-Data Capture July 6, 2015
- 1 -
