GV-Control Center V4
product unavailable

Description
GV-Control Center September 16, 2021 - 1 - GV-Control Center Introduction GV ‐Control Center is an integrated security management software that provides a handy tool to maintain a central monitoring station. GV ‐Control Center is a comprehensive solution for central operators to efficiently control GV ‐DVR / NVR / VMS, GV ‐Recording Server, I/O devices and IP cameras. With GV ‐Control Center, m ultiple GeoVision surveillance and video management systems can be managed and maintained centrally to enhance their monitoring performance and ...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
GV-Control Center September 16, 2021
- 1 -
GV-Control Center
Introduction
GV ‐Control Center is an integrated security management software that provides a handy tool to maintain a central
monitoring station. GV ‐Control Center is a comprehensive solution for central operators to efficiently control GV ‐DVR /
NVR / VMS, GV ‐Recording Server, I/O devices and IP cameras. With GV ‐Control Center, m ultiple GeoVision surveillance
and video management systems can be managed and maintained centrally to enhance their monitoring performance
and ensure smooth operation.
Key Features

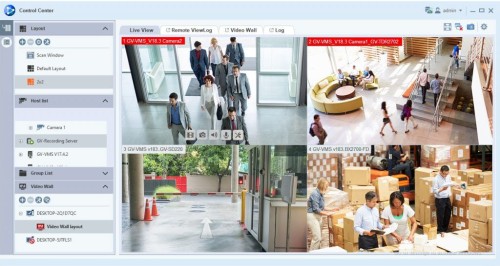

Live View: Remotely monitor videos from 900 camera channels
The Live View is a single display in which videos from a group of maximum 100 cameras can be shown, e.g. groups of
cameras at office areas, exits or on the streets. Depending on surveillance needs, the operator can open up to 9 Li ve
Views, with 100 camera channels for each Live View, on 9 monitors simultaneously. Each Live View supports live
monitoring and video playback altogether.
Remote Desktop: Remotely access to client GV ‐DVR/NVR/VMS’s desktop
GV ‐Control Center can access the desktop of client GV ‐DVR / NVR / VMS and have full control of the client’s
monitoring system and Windows operation system.
I/O Central Panel: Group and manage I/O devices from different hosts
GV ‐Control Center provides a useful I/O Central Panel for the operator to remotely manage I/O devices from various
GV ‐ IP devices. The operator can group function ‐related I/O devices together for ease of control, e.g. groups of IR
sensors, alar ms or fire exits. In case of building fire, for example, GV ‐Control Center can simultaneously trigger all
alarms in the networked GV ‐DVR / NVR / VMS and force opening all the fire exits or water spray systems.
Remote Playback
The Remote ViewLog service enables playback of recordings from different hosts. The operator can utilize the service
to save video clips for later retrieval as event evidence.
Video Wall (optional)
GV ‐ Video wall, TV wall, is an establishment of multiple monitors on a server. The operator can create a layout with a
variety of displays including desired camera channels, zoom windows, scan windows, web pages, video playback and
live view popped up from E ‐Map. A megapixel camera channe l can even be placed across monitors.
GV-Control Center September 16, 2021
- 2 -
Video Motion Detection (VMD) popup
Face Recognition Watch to monitor FR events from GV ‐ AI FR and FR cameras of GV ‐VMS
ASManager View to monitor access control and LPR events from GV ‐ASManager
Storyline recording
Support for GV ‐Live Streaming for streaming from Android / iOS mobile device cameras
Specifications
Features
Control Center
Host
GV ‐ASManager
GV ‐Authentication Server
GV ‐ AI FR
GV ‐Compact DVR
GV ‐DVR / NVR / VMS
GV ‐ Live Streaming account
GV ‐Recording Server / GV ‐ Video
Gateway
GV ‐ SNVR System
GV ‐ Video Server
IP Camera
Unlimited
I/O devices (only for GV ‐ IP Devices)
Unlimited *
‐ One host supports up to 9 sets of 16 ‐ in and 16 ‐out I/O modules.
Feature
Live View / Channel 9 Live View windows / 100 channels per live view
VMD Group / Channel
(Only for GV ‐ IP Devices)
1 group / 1200 channels
‐ GV ‐DVR / NVR / VMS: 1000 channels
‐ GV ‐ Video Server + GV ‐Compact DVR + GV ‐ IP Camera: 200 channels
Remote DVR Unlimited host*
Remote Desktop Unlimited host*
Remote ViewLog 1 player
Remote E ‐ Map / Host Unlimited map / 500 hosts
Panorama View / Channel 4 Panorama Views / 32 channels per view
FR (Face Recognition) Watch / Host 4 viewing windows / unlimited host*
ASManager View / Host 4 viewing Windows / unlimited host*
GV ‐ Live Streaming account 1 viewing window
Video Wall (optional) 1 to 200 licenses
Language
Arabic, Bulgarian, Czech, Danish, Dutch, English, Finnish, French, German, Greek,
Hebrew, Hungarian, Indonesian, Italian, Japanese, Lithuanian, Norwegian,
Persian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese,
Slovakian, Slovenian, Spanish, Swedish, Thai, Traditional Chinese, Turkish
Note: The maximum number of hosts supported depends on the PC performance of GV ‐Control Center.
GV-Control Center September 16, 2021
- 3 -
Minimum System Requirements
OS 64‐ bit
Windows 10 / Server 2016 / Server 2019
CPU Core i7 2600K, 3.4 GHz
RAM 16 GB Dual Channels
Hard Disk 1 GB for software installation
Processor Graphics Please see GPU Decoding Specifications below.
Direct X 9.0c
LAN Card Gigabit Ethernet x 2
Note:
1. It is not recommended to install GV ‐Center V2 (Pro) and GV ‐Control Center on the same PC. Running the two
software together on the same PC may result in CPU overload or system failure.
2. To display a megapixel IP channel across monitors, make sure the external graphic cards on a server are of the same
brand, model and driver version. The capacity of graphic cards must be equivalent to NVIDIA GTS 450 or higher to
ensure maximum efficiency.
3. When you find CPU usage is high or live view is unsmooth (dropping frames), you may need to increase CPU threads
and memory or decrease the number of connected cameras to improve the system performance.
4. For GV ‐Control Center to support up to 9 Live Views, with 100 camera channels for each Live View, higher PC
specifications are required than the minimum requirements.
License
Free License N/A
Maximum License Unlimited number of hosts
Increment for Each License N/A
Optional Combinations
1. Control Center
2. Control Center + Video Wall (1 to 200 license)
3. Control Center + Vital Sig n Monitor
4. Control Center + Vital Sig n Monitor + Video Wall (1 to 200 license)
*No. 3 ~No. 4 are not supported by software licensing
License Type GV ‐ USB dongle or software license
Note:
1. To upgrade to V4.0.0 or later, a purchased initial license is required to start GV ‐Control Center software.
2. The licensing comes in two forms: GV ‐ USB dongle and software license . The two are incompatible. Before using
software licensing, make sure to remove the GV ‐ USB dongle if inserted on the PC.
3. GV ‐ USB dongle has two types: Internal and External. Internal dongle is recommended for the Hardware Watchdog
function, which restarts the PC when Windows crashes or freezes.
4. Software licensing:
‐ Not support the following software currently: GV ‐ AI Guard, GV ‐ASManager, GV ‐ DVR / NVR.
‐ Support the following products: GV ‐ AI FR V1.2 or later, GV ‐Recording Server V2.0 or later, GV ‐ SNVR series,
GV ‐VMS V17.4.2 / V18.3.0 or later, IP devices.
GV-Control Center September 16, 2021
- 4 -
GPU Decoding Specifications
A higher total frame rate can be achieved if your CPU comes with onboard GPU or is connected to external GPU for GPU
decoding.
Onboard GPU : GPU decoding is only supported when using the following Intel chipsets:
For H.264 Video Compression
* 2nd~ 8thGeneration Intel Core i3 / i5 / i7 Desktop Processors
* 9th~ 11thGeneration Intel Core i3 / i5 / i7 / i9 Desktop Processors
For H.265 Video Compression
* 6th~ 8thGeneration Intel Core i3 / i5 / i7 Desktop Processors
* 9th~ 11thGeneration Intel Core i3 / i5 / i7 / i9 Desktop Processors
External GPU : GPU decoding is only supported when using NVIDIA graphics cards with compute capability 3.0 or above
and memory 2 GB or above. To look up the commute capability of the NVIDIA graphics cards, refer to:
https://developer.nvidia.com/cuda‐ gpus
Note:
1. Only one external NVIDIA graphic card can be supported by GV ‐Control Center to perform GPU decoding for free of
charge.
2. GeForce GTX1060 is not supported.
Onboard GPU + External GPU : To have both the onboard and external GPU to perform GPU decoding, the GPUs must
follow their respective specifications listed above.
Note:
1. If you have both onboard and external GPUs installed, the onboard GPU must be connected to a monitor for
activating H.264 / H.265 GPU decoding.
2. CUDA compute capability 5.0 or higher is required to ensure optimal performance.
Compatible GeoVision Products
GV ‐ DVR / NVR: V8.5 or later
GV ‐VMS: V14.1 or later
GV ‐ASManager : V4.3 or later
GV ‐Recording Server: V1.4 or later
GV ‐ AI FR: V1.2 or later
GV ‐ Live Streaming app: V1.0.2
GV ‐SNVR0400F / 1600 : FW V1.1 or later; GV ‐ SNV R0411: FW V2.0 or later; GV ‐ SN VR0412: FW V1.13 or late; GV ‐ S NVR0811:
FW V2.73 or later; GV ‐ SNV R0812: FW V1.03 or later; GV ‐ SN VR1611: FW V3.03 or later
GV ‐VS11 / 12 / 14 / 2400 / 2420 / 280 0 / 2820 : FW V1.01 or later
GV ‐VS2401 / VS21600 : FW V1.00 or later
Options
Optional Devices
Description
GV ‐Keyboard V3 for
GV ‐Control Center
GV ‐Keyboard V3 is designed to program and operate the GeoVision surveillance system
with keyboard and function keys, and can be connected to PTZ cameras directly for PTZ
control.
GV ‐Joystick V2
GV ‐Joystick V2 facilitates PTZ camera control. It can be either plugged into the GeoVision
surveillance system for independent use or connected to GV ‐Keyboard to empower the
operation.
GV ‐ IO Box Series
GV ‐ IO Box series provides 4 / 8 / 16 inputs and relay outputs, and supports both DC and
AC output voltages, with optional support for Ethernet module and 4E additionally
supporting PoE connection.
