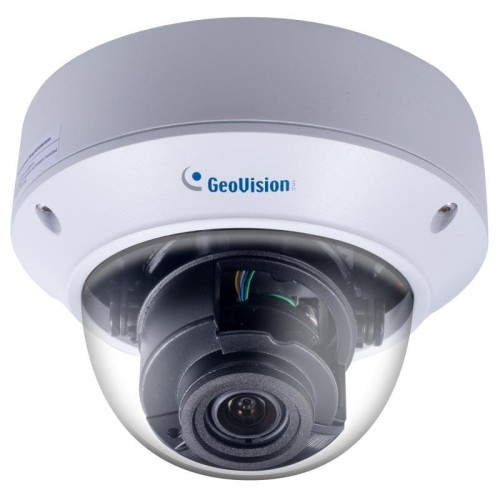

GV-AVD4710

Availability: 0
Price: €290.34 290.34
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: GEOVISION
Product code: 84-AVD471W-0010

Description

GV-AVD4710 August 3, 2018  - 1 -  GV-AVD4710 4MP H.265 4.3x Zoom Low Lux WDR Pro IR Vandal Proof IP Dome        * 1/3” progressive scan low lux CMOS  * Min. illumination at 0.02 lux  * Triple streams from H.265, H.264 and MJPEG  * Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440 and 30 fps  at 2048 x 1520  * Motorized varifocal lens for remote focus / zoom adjus tment  * Intelligent IR  * IR distance up to 30 m (98.4 ...

Warning! Product withdrawn from production!

Replacement product: GV-TVD4710

Replacement product code: 84-TVD4710-0010

Warranty: 24 mon.

Datasheet PDF


Text contents of PDF datasheet:

GV-AVD4710 August 3, 2018
- 1 -
GV-AVD4710 4MP H.265 4.3x Zoom Low Lux WDR Pro IR Vandal Proof IP Dome



* 1/3” progressive scan low lux CMOS
* Min. illumination at 0.02 lux
* Triple streams from H.265, H.264 and MJPEG
* Up to 20 fps at 2592 x 1520, 25 fps at 2560 x 1440 and 30 fps
at 2048 x 1520
* Motorized varifocal lens for remote focus / zoom adjus tment
* Intelligent IR
* IR distance up to 30 m (98.4 ft)
* Day and Night function (with removable IR ‐cut filter)
* Vandal resistance (IK10 for metal casing)
* Ingress protection (IP67)
* 3 ‐axis mechanism (pan / tilt / rotate)
* DC 12V / PoE (IEEE 802.3af)
* Built‐ in micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
for local storage
* Two ‐way audio
* Wide Dynamic Range Pro (WDR Pro)
* Defog
* 3D noise reduction
* Motion detection
* Text overlay
* Privacy mask
* Tampering Alarm
* ONVIF (Profile S) conformant


Introduction
The Vandal Proof IP Dome is an outdoor camera designed with IK10 vandal resistance and IP67 ingress protection. GV ‐AVD4710
supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network
bandwidths. The camera is equipped with an automatic IR ‐cut filter and IR LEDs fo r day and night surveillance. Adjustable in 3 axis
(pan, tilt and rotate), it offers an entry ‐level surveillance solution with all the essential features and excellent image quality.

Active Tampering Alarm
Tampered Focus Change Camera Shift





GV-AVD4710 August 3, 2018
- 2 -
Dimensions



Specifications
Camera

Image Sensor 1/3” progressive scan low lux CMOS

Picture Elements 2592(H) x 1520 (V)

Color 0.02 Lux

Minimum
Illumination
IR On 0 Lux

Shutter Speed Automatic, Manual (1/6 ~ 1/100000 sec)

White Balance Automatic, Manual

Gain Control Automatic, Manual

S/N Ratio 56 dB

WDR Pro Yes

Dynamic Range Up to 120 dB

Lens

Megapixel 4 MP

Day/Night Yes (with removable IR ‐cut filter)

Focal Length 2.8 ~ 12 mm

Lens Type Motorized varifocal lens

Maximum Aperture F/1.4

Mount Ø14 mm

Horizontal FOV 91°~27°

Focus Automatic / Manual

Zoom 4.3x Optical Zoom

Operation
Iris Fixed

IR LED Quantity 2 IR LEDs

Max. IR Distance 30 m (98.4 ft)

Operation

Video Compression H.265, H.264, MJPEG

Video Streaming Triple streams

Frame Rate
20 fps at 2592 x 1520, 25 fps at 2560 x 1440, 30 fps at 2048 x 1520 (60 / 50 Hz)
* The frame rate and the performance may vary depending on the number of connections
and data bitrates (different scenes).

Audio Compression G.711

Audio Support Two ‐way Audio


GV-AVD4710 August 3, 2018
- 3 -

Video Resolution
Main Stream 2592 x 1520, 2560 x 1440 (Default), 2048 x 1520, 1920 x 1080

Sub Stream 1920 x 1080, 1280 x 720, 720 x 576 (Default), 704 x 288, 640 x 360, 352 x 288

Video Resolution
Third Stream
(Closed by
Default)
720 x 576, 704 x 288, 640 x 360, 352 x 288

Network

Interface 10/100 Ethernet

Ethernet Protocol
DHCP, DynDNS, FTP, HTTP, HTTPS, IPv4, ICMP, L2TP, NTP, PPPoE, RTP, RTSP, SMTP, SIP,
TCP/IP, UDP, ONVIF (Profile S)

Mechanical

Pan 0° ~ 360°

Tilt 0° ~ 80°

Camera Angle
Adjustment
Rotate 0° ~ 360°

Power DC Jack, PoE

Ethernet RJ ‐ 45

Audio
1 in (Audio In Wire); 1 out (Audio Out Wire)
*The Audio In port only supports active microphones.

Digital I/O 4 ‐pin terminal block pitch 3.5 mm (0.14”)

Local Storage
Micro SD card slot (SD / SDHC / SDXC / UHS ‐ I, Class 10)
* UHS ‐ II card types are not supported.

Connectors
TV ‐ Out BNC connector

General

Environment Temperature ‐40°C ~ 60°C ( ‐22°F ~ 140°F)
Humidity 0% to 95% (no condensation)

Power Source 12V DC / PoE (IEEE 802.3af)

Max. Power Consumption 7.2 W

Dimension Ø148 x 111.3 mm (Ø5.8” x 4.4”)

Weight 0.75 kg (1.7 lb)

Ingress Protection IP67

Vandal Resistance IK10

Web Interface

Installation Management Web ‐based configuration

Maintenance Firmware upgrade through Web Browser or Utility

Access from Web Browser
Live View, Video Recording, Change Video Quality, Bandwidth Control, Image
Snapshot, Text Overlay, Image Masking

Language
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian,
Spanish

Applications

Network Storage
GV ­ DVR / NVR (V8.7.4.0), GV ­ VMS (V16.11.0.0), GV ­Control Center (V3.5.0.0), GV ‐Edge
Recording Manager (V1.3.0.0), GV ‐Recording Server / Video Gateway (V1.4.0.0), GV ­
Redundant / Failover Server (V1.1.0.0)

Smart Device Access GV ‐ Eye for iOS and Android

Live Viewing Browser (IE, Firefox, Safari), Mobile App

Note:
1. It is required to apply patch files to all the supported software.
2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
3. Specifications are subject to change without notice.

GV-AVD4710 August 3, 2018
- 4 -
Packing List
1. GV ‐AVD4710 IR Vandal Vandal Proof Dome
2. Waterproof Rubber Set
3. Screw Kit
4. Drill Template Paster
5. Torx Wrench
6. Download Guide
7. Warranty Card
Note: Power adapters can be purchased upon request.


Accessories
Model No. Name Details

GV ‐Mount211 ‐ 2 Wall Mount Bracket


Dimensions: 253 x125 x 125 mm (10” x 4.9” x
4.9”)
Weight: 0.92 kg (2.02 lb)

GV ‐Mount212 ‐ 2 Wall Box Mount


Dimensions: Ø145 x 40 mm (5.7” x 1.6”)
Weight: 0.24 kg (0.5lb)

GV ‐PA191

Power over Ethernet
(PoE) Adapter



The GV ‐PA191 is a Power over Ethernet (PoE)
adapter designed to provide power to the IP
device through a single Ethernet cable.
GV ‐ POE Switch
The GV ‐ POE Switch is designed to provide power along with network connection for

IP devices. The GV ‐ POE Switch is available in various models with different numbers

and types of ports.

Power Adapter Contact our sales representatives for the countries and areas supported.
